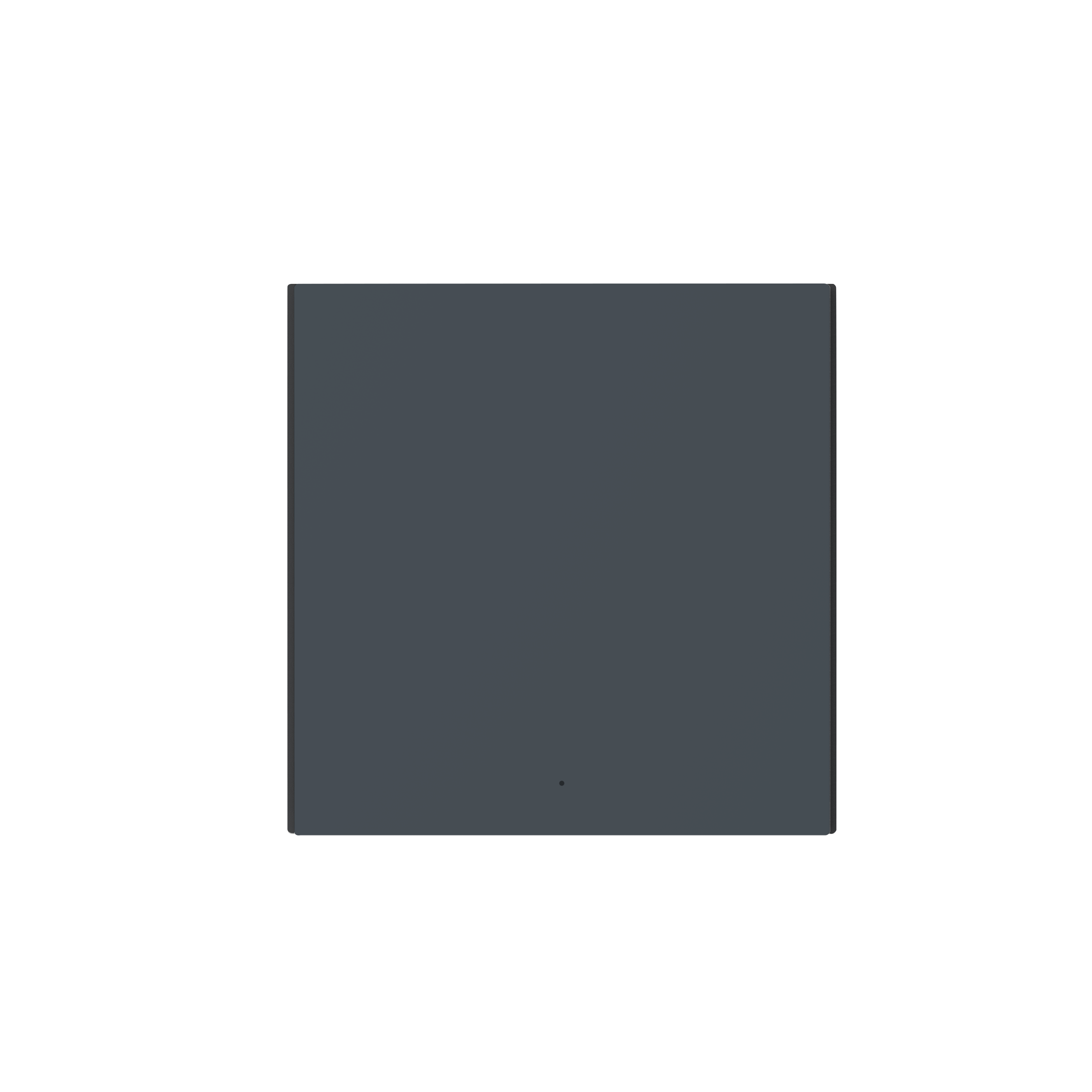

Aqara Smart Wall Switch H1 (No Neutral) – Single Rocker

$58.00

Overview

Type: Smart Wall Switch
Single Rocker (1-Gang), No Neutral
Protocol: Zigbee
Requires Aqara Hub: Yes
Colour: White or Grey
Electrical Rating: 100-250VAC, 50/60Hz, Max. 8A (resistive load)
Max Load: 600 W (Incandescent), 200W (CFL/LED),1/4HP
Min Load: Min Load: 3W (Incandescent), 5W (CFL/LED)
Dimension: 85.8×86×37.55 mm

Warranty:

Installation: Excluded
Warranty: 2 years (Refer to Warranty Policy)

Color	Grey White Clear

Compare

Add to wishlist

SKU: N/A Category: Switch & Controller

Key Highlights

The Aqara Smart Wall Switch H1 (No Neutral) is a smart switch designed to control the power of lights and other electrical devices. When paired with an Aqara Hub, it enables remote control via the Aqara Home app, supports timed control, and integrates seamlessly with other smart devices in your home automation setup.

Single Rocker Design (1-Gang): The Smart Wall Switch has one rocker to control one light or chain of lights.
No Neutral Wire Required: The No Neutral version of the Aqara Smart Wall Switch H1 is ideal for setups without a neutral wire, eliminating the need to pull down a live line to your wall switch. For installations with a neutral wire, a version with neutral support is also available.

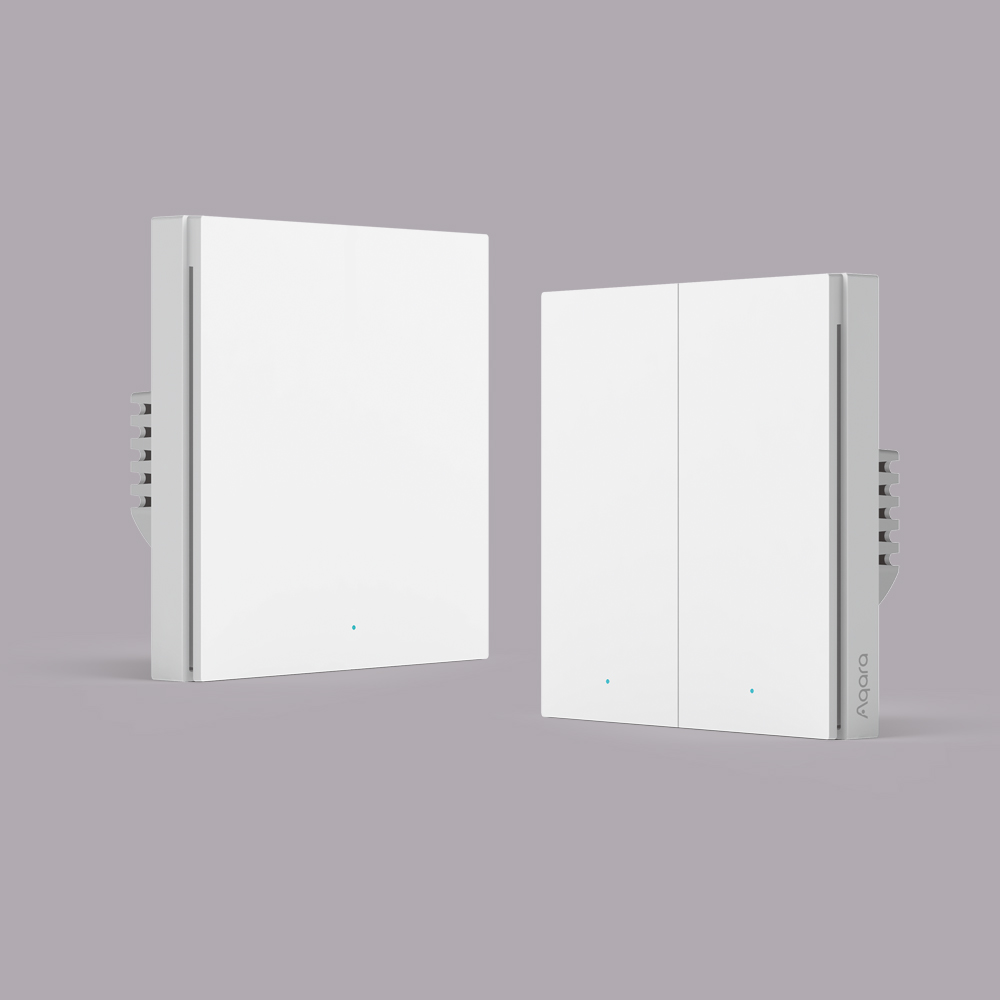

Smart Wall Switch H1 EU

Our first and most advanced wall switch that supports both round and square wall boxes. Available in Single and Double Rocker as well as With and Without Neutral.

Support of Round Wall Boxes

Apart from 86 mm square wall boxes, the H1 EU also supports round European wall boxes.

Zigbee 3.0 Protocol

Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology.

Premium Build and Metal Frame

The H1 EU uses our award-winning, cleaner design preferred by the majority of our users. The metal frame makes it more rigid and durable.

Convert to Wireless Switch Function

The button of the switch can be remapped so that you will get an extra "wireless switch" while the light will be controlled by automations.

Advanced Protection

With overheat and overload protection, you can be sure your home is safe and secure.

No Neutral Wire Required

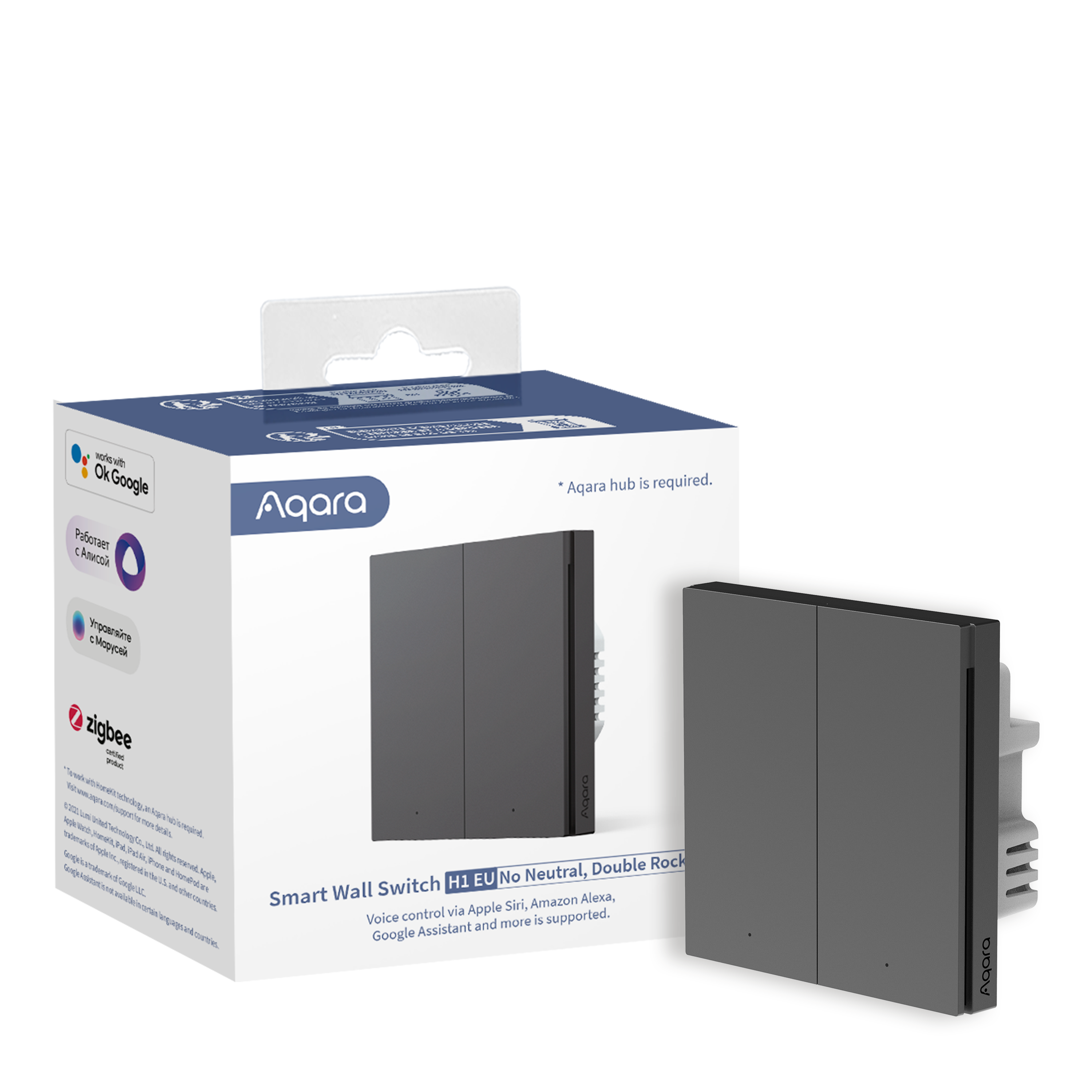

A version which does not require a neutral wire is available in both Single and Double Rocker options.

All-Round Compatibility

Compatible with most popular voice assistants and ecosystems: HomeKit, Alexa, Google, IFTTT* such as G2H, M1S and M2.

2-Way Setup Support
with Wireless Switch H1

Upgrade your existing 2-Way setup using the Wall Switch H1 EU with the Wireless Switch H1, which can be placed on top of the existing wall box used for secondary 2-Way switch.

* Certain integrations may be unavailable by the time of the launch. ** A compatible Zigbee 3.0 Aqara hub is required.

The Smart Wall Switch H1 EU makes your Aqara devices compatible with
a wide range of smart home ecosystems and voice assistants.

Apple HomeKit, Google Assistant, Amazon Alexa, and more* are supported.

The Wall Switch H1 EU is the first wall switch by Aqara, that supports both square 86 mm
and round wall boxes, which are popular in Europe.

* In case of installing the switch into a twin round wall box, please check product's dimensions: some wall boxes do not support the installation of multiple wall switches such as H1 EU in a row.

Support of an Easy and Flexible 2-Way Switch Setup

An existing 2-Way setup can be upgraded to the smart one using the Wall Switch H1 EU and the Wireless Switch H1, which can be placed both on top of the existing wall box used for secondary 2-Way switch or on any flat surface such as wall using the provided adhesive pad.

Convert to Wireless Switch

The actual electrical switch can be controlled by automations (such as motion sensor or wireless mini switch) while the switch button will control something else, e.g. roller shade, so the user will have the functionality of an extra wireless switch.

LED Indicator Behaviour Setting

The behaviour of LED indicator can be configured via Aqara Home app. From now on, you will be able to choose, if you want to turn it off completely, make it turn on when the switch is on or vice versa. * Not all of these options are available for the No Neutral version.

Power-Off Memory

You will be able to configure if you need the lights to turn on automatically after a power outage. No more lights turning on suddenly in the night.

Extra safety and durability

The Aqara Wall Switch H1 EU has passed all the necessary certifications such as CE and EAC and incorporates several levels of protection such as overheat and overload*, which makes is compatible with highest safety standards. Moreover, the new, award-wining design with a short button travel and symmetrical housing has increased durability compared to previous generations of Aqara Wall Switches.

Smart, Solid and Premium Design

Connect Aqara sensors with the Aqara Wall Switch H1 EU and forget about using your switches manually.

IF: Motion is detected

THEN: Turn on the bedroom lights

Product Specification

Color	Grey , White
Model	WS-EUK01
Single rocker output power	Min Load: 3 W (Incandescent), 5 W (CFL/LED), typical load , Max Load: 600 W (Incandescent), 200 W (CFL/LED),1/4HP
Electrical Rating	100-250VAC, 50/60Hz, Max. 8A (resistive load), μ
Wireless Protocol	Zigbee 3.0
Zigbee Operation Frequency	2405-2480MHz
Zigbee Maximum Output Power	≤ 13dBm
Material	PC
Dimension	85.8×86×37.55 mm
Wireless Standard	IEEE 802.15.4
Wireless Frequency	2.4GHz（2400～2483.5MHz）
Communication Distance	Up to 30M (open area)
Operating Temperature	0°C～40°C (32°F～104°F)
Operating Humidity	0%~90%FH, no condensation
