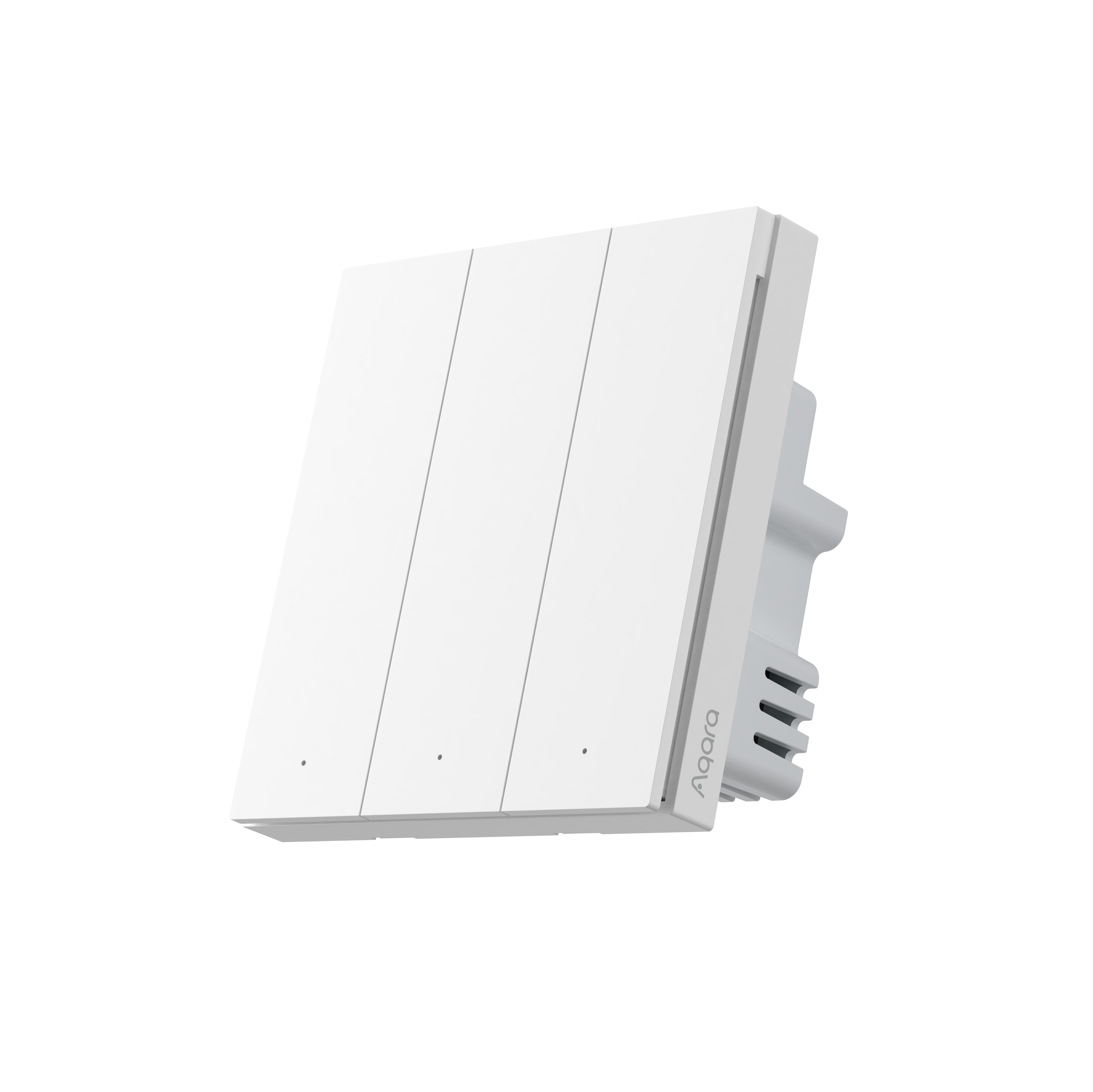

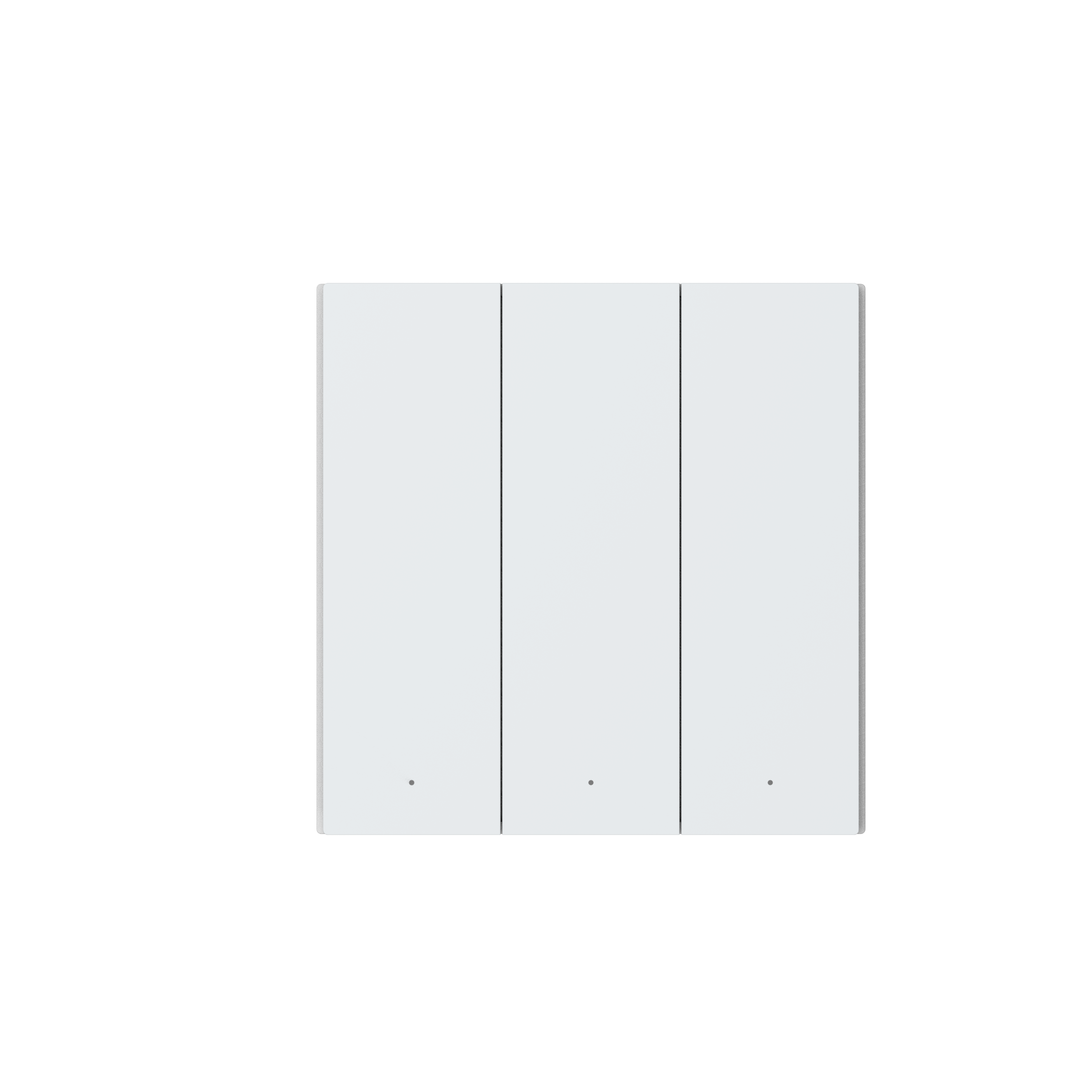

Aqara Smart Wall Switch H1 (No Neutral) – Triple Rocker
$80.00
Overview
- Type: Smart Wall Switch
- Triple Rocker (3-Gang), No Neutral
- Protocol: Zigbee
- Requires Aqara Hub: Yes
- Colour: White
- Input Power: 220VAC, 50Hz, Max. 10A (resistive load), Min 3W (No Neutral only)
- Dimension: 86×86×43.7 mm
Warranty:
- Installation: Excluded
- Warranty: 2 years (Refer to Warranty Policy)
Key Highlights

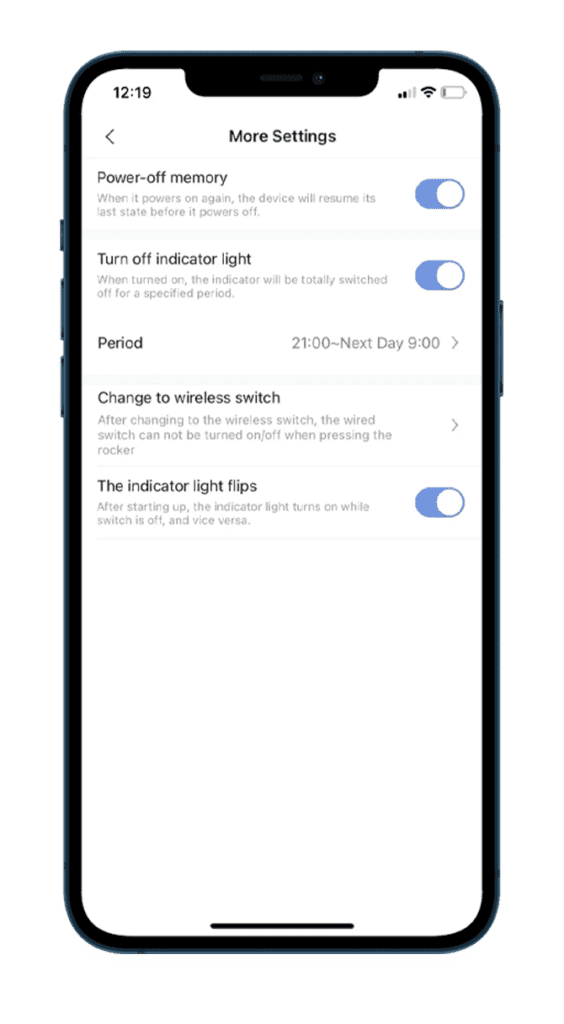

The Aqara Smart Wall Switch H1 (No Neutral) is a smart switch designed to control the power of lights and other electrical devices. When paired with an Aqara Hub, it enables remote control via the Aqara Home app, supports timed control, and integrates seamlessly with other smart devices in your home automation setup.

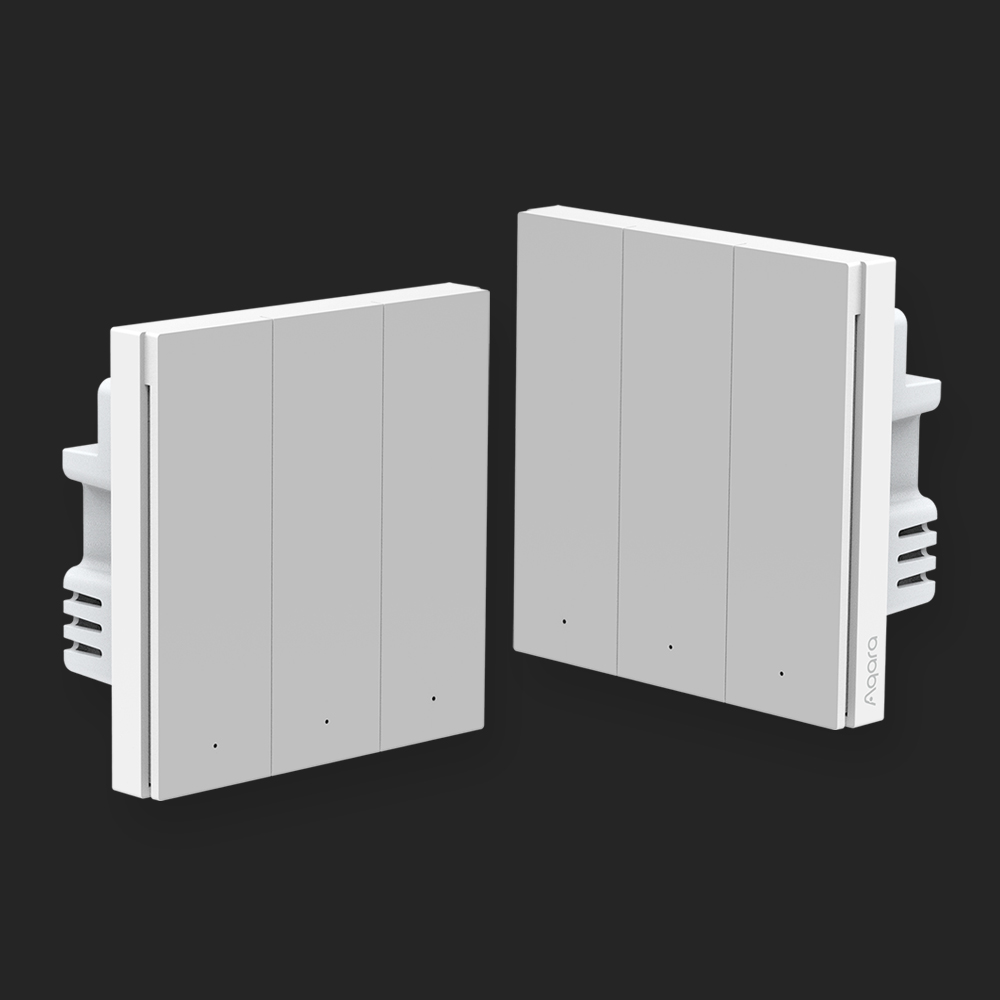

- Triple Rocker Design (3-Gang): The Smart Wall Switch has three rockers to control three separate lights or chain of lights.
- No Neutral Wire Required: The No Neutral version of the Aqara Smart Wall Switch H1 is ideal for setups without a neutral wire, eliminating the need to pull down a live line to your wall switch. For installations with a neutral wire, a version with neutral support is also available.
Smart Wall Switch H1 EU
Available in Triple Rocker and both With and Without Neutral versions. *

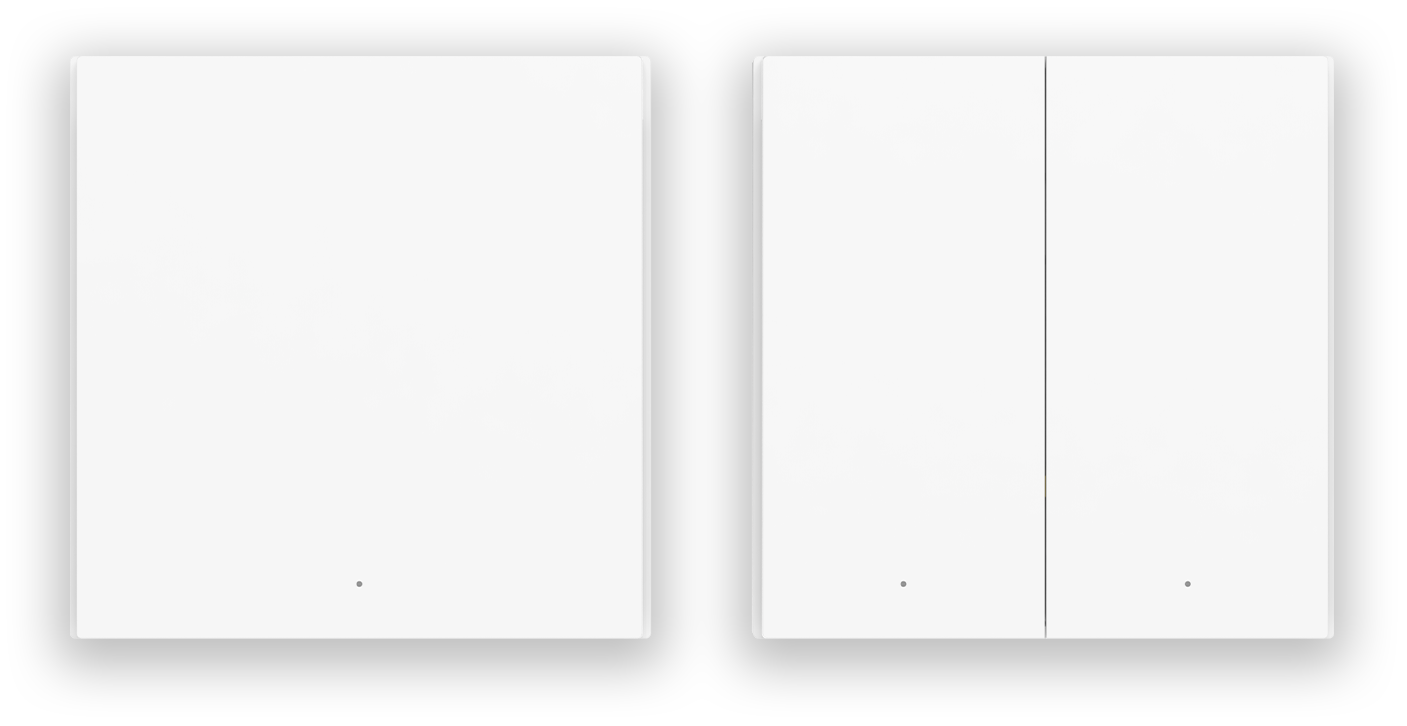

For a wall switch that supports EU-type round wall boxes, please check the Wall Switch H1 EU Single or Double Rocker.
The Smart Wall Switch H1 EU makes your Aqara devices compatible with
a wide range of smart home ecosystems and voice assistants.
Apple HomeKit, Google Assistant, Amazon Alexa, and more* are supported.
Support of an Easy and Flexible 2-Way Switch Setup
An existing 2-Way setup can be upgraded to the smart one using the Wall Switch H1 EU and the Wireless Switch H1, which can be placed both on top of the existing wall box used for secondary 2-Way switch or on any flat surface such as wall using the provided adhesive pad.
Extra safety and durability
The Aqara Wall Switch H1 EU has passed all the necessary certifications such as CE and EAC and incorporates several levels of protection such as overheat and overload*, which makes is compatible with highest safety standards. Moreover, the new, award-wining design with a short button travel and symmetrical housing has increased durability compared to previous generations of Aqara Wall Switches.
Connect Aqara sensors with the Aqara Wall Switch H1 EU and forget about using your switches manually.
IF: Motion is detected
THEN: Turn on the bedroom lights

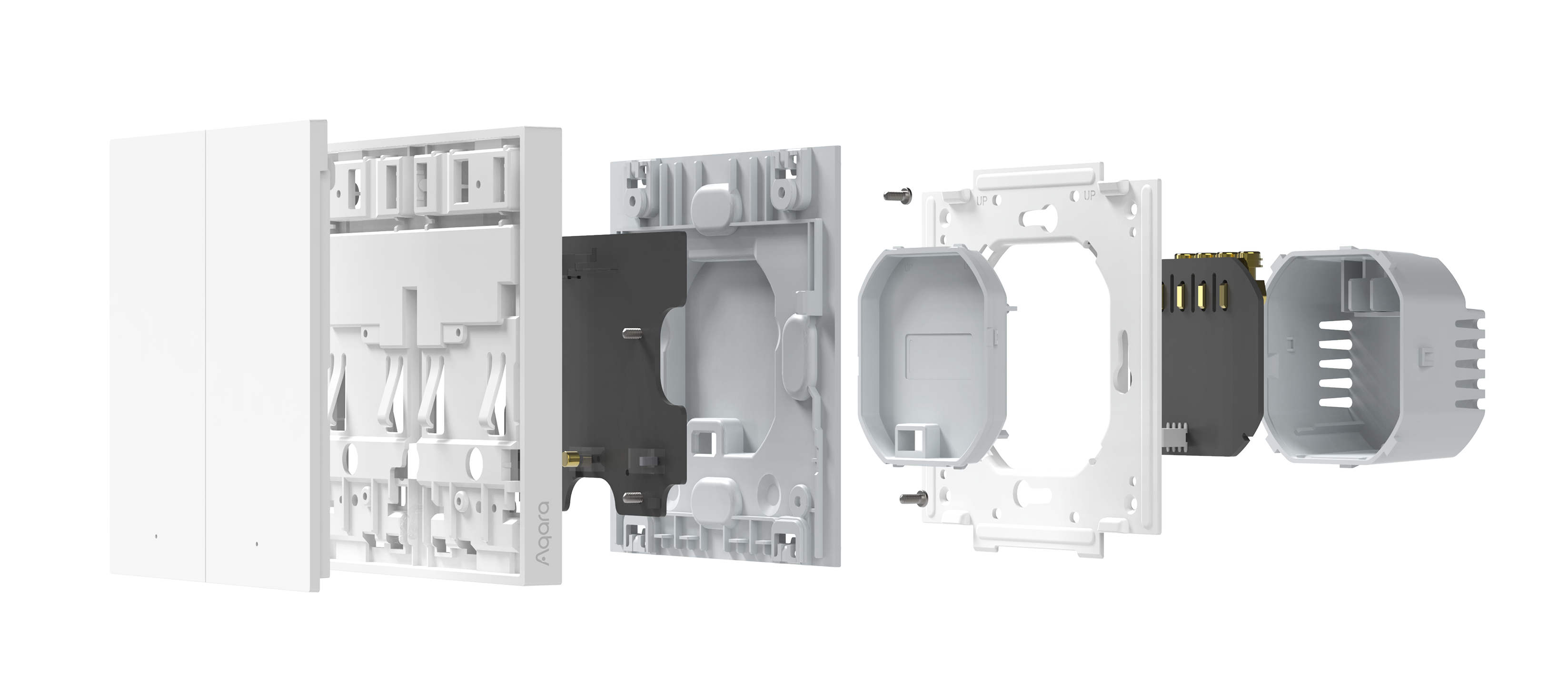

Smart, Solid and Premium Design
Product Specification
 Color | White |
|---|---|
 Model | QBKG29LM |
 Dimension | 86×86×43.7 mm |
| Input Power | 220VAC, 50Hz, Max. 10A (resistive load), Min 3W (No Neutral only) |
| Double rocker output power | Min Load: 3 W/way (Incandescent), 5 W/way (CFL/LED), typical load, Max Load: 600 W/way (Incandescent), 200W/way (CFL/LED),1/4 HP |
 Wireless Protocol | Zigbee 3.0 |
| Operating Temperature | 0°C～40°C (32°F～104°F) |
| Operating Humidity | 0%~90%FH, no condensation |
