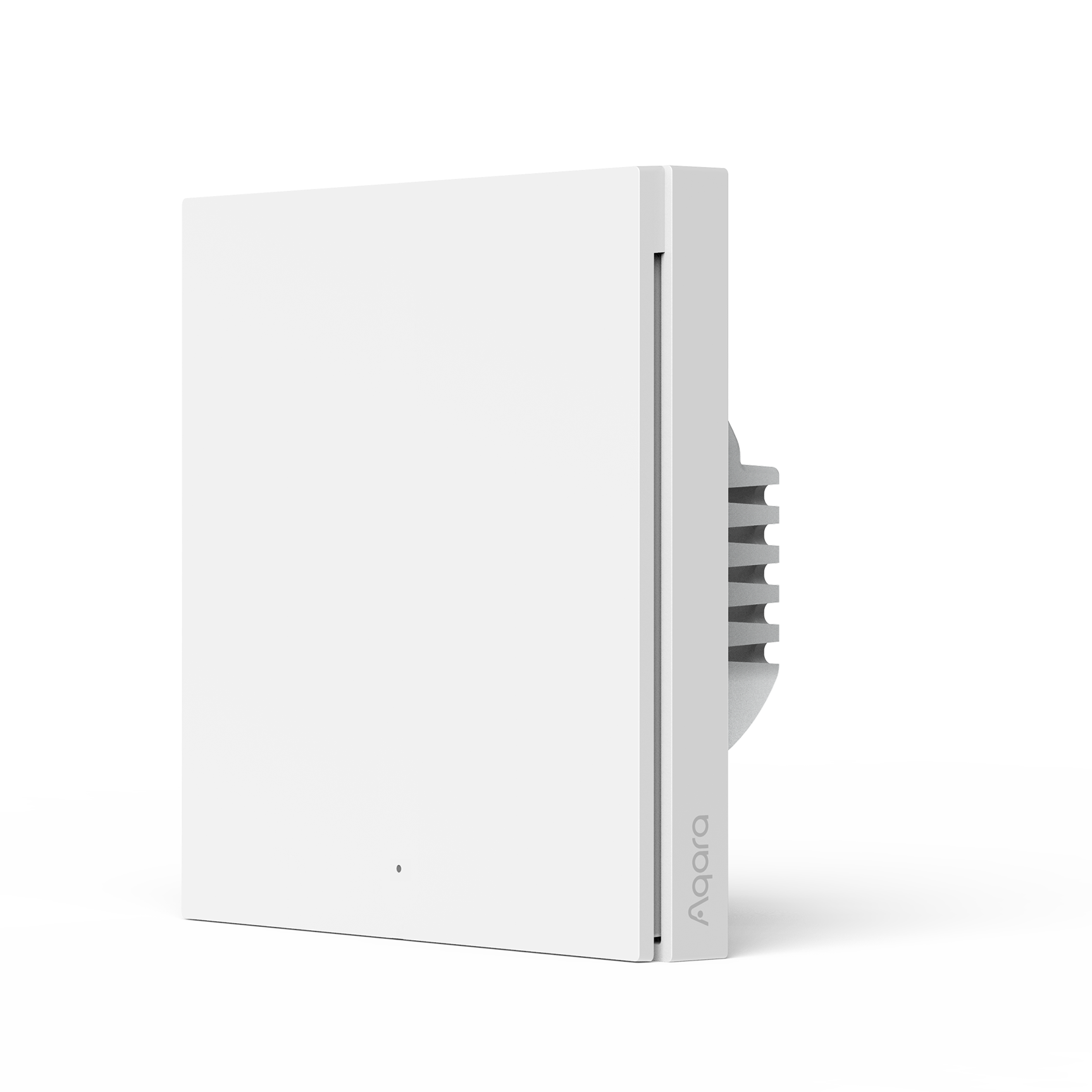

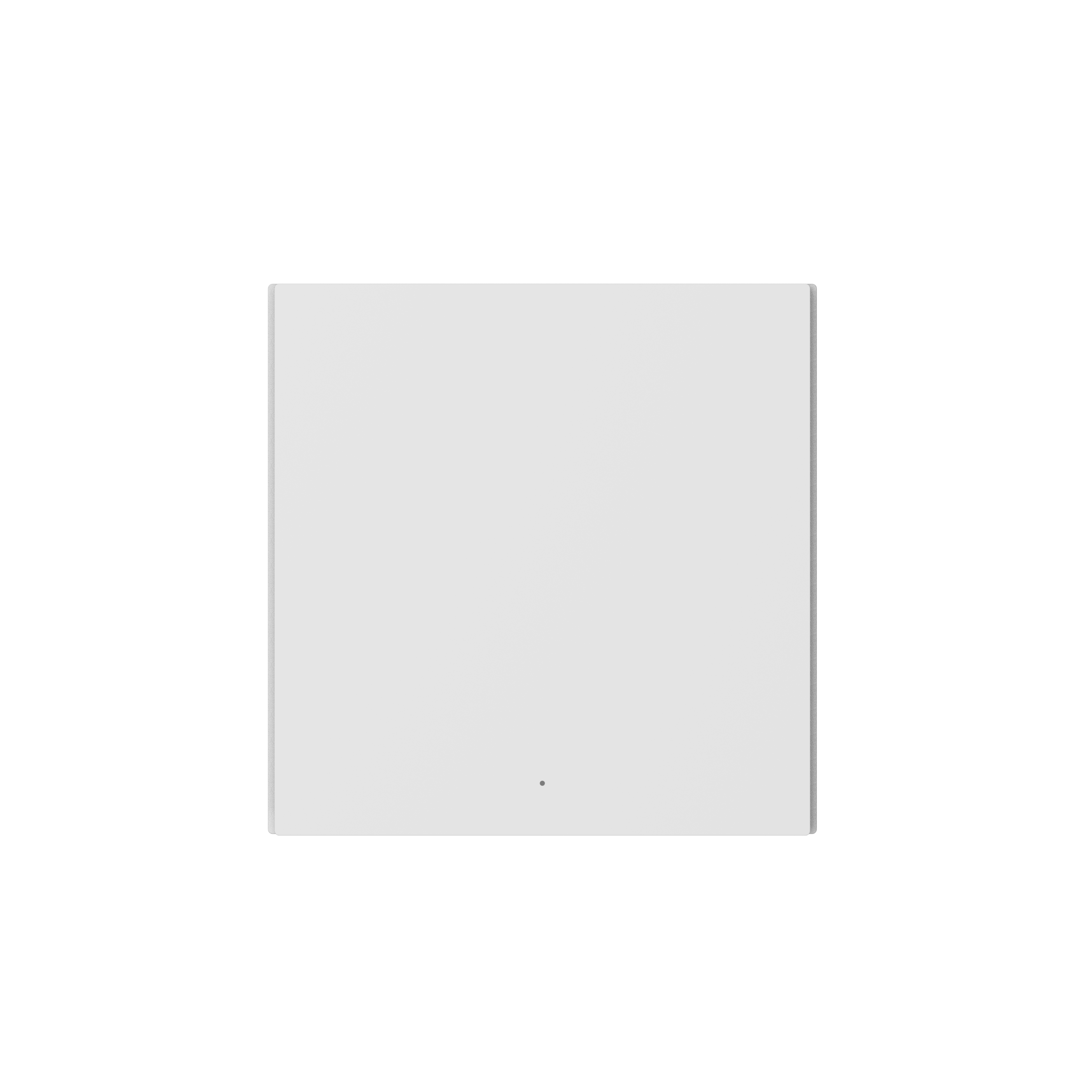

Aqara Smart 20A Switch H1

$67.00

Overview

Type: Smart Wall Switch
Single-channel control
Requires a neutral wire
Protocol: Zigbee
Requires Aqara Hub: Yes
Colour: White
Input: 100-250VAC, 50/60Hz, Max 20A
Dimension: : 85.8 × 86 × 37.55 mm

Warranty:

Installation: Excluded
Warranty: 2 years (Refer to Warranty Policy)

SKU: WS-K01D Category: Switch & Controller

Designed for High Power Loads, High-Power Appliances

The Aqara Smart 20A Switch H1, built on the Zigbee 3.0, is a smart switch designed to control high-power appliances like water heaters, ovens, and other devices. When paired with an Aqara Hub, it offers features like remote control via the Aqara Home app, scheduled control, and power usage statistics. It works seamlessly with other Aqara smart devices, facilitating the creation of smart scenes and automations. For example, users can set routines that automatically turn on a water heater when human presence at a bath room is detected.

Typical Current Rage (for Residential):

Water heater (Instantaneous / Storage): 13 ~ 20A
Oven: 8 ~ 16A
Remarks: it varies depending on the product and the usage.

Smart 20A Switch H1

Zigbee 3.0 Protocol

Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology.

Premium Build and Metal Frame

The Smart 20A Switch H1 uses our award-winning, cleaner design preferred by the majority of our users. The metal frame makes it more rigid and durable.

Convert to Wireless Switch Function

The button of the switch can be remapped so that you will get an extra "wireless switch" while the light will be controlled by automations.

Advanced Protection

With overheat and overload protection, you can be sure your home is safe and secure.

Power Monitoring

Check power consumption reports and usage statistics to track the efficiency of your electrical appliances.

All-Round Compatibility

Compatible with most popular voice assistants and ecosystems: HomeKit, Alexa, Google, IFTTT*.

* Certain integrations may be unavailable by the time of the launch. ** A compatible Zigbee 3.0 Aqara hub is required, such as G2H, M1S and M2.

The Smart 20A Switch H1 makes your Aqara devices compatible with a wide range of smart home ecosystems and voice assistants.

Apple HomeKit, Google Assistant, Amazon Alexa, and more* are supported.

Support of an Easy and Flexible 2-Way Switch Setup

An existing 2-Way setup can be upgraded to the smart one using the Smart 20A Switch H1 and the Wireless Switch H1, which can be placed both on top of the existing wall box used for secondary 2-Way switch or on any flat surface such as wall using the provided sticky pad.

Convert to Wireless Switch

The actual electrical switch can be controlled by automations (such as motion sensor or wireless mini switch) while the switch button will control something else, e.g. roller shade, so the user will have the functionality of an extra wireless switch.

LED Indicator Behaviour Setting

The behaviour of LED indicator can be configured via Aqara Home app. From now on, you will be able to choose, if you want to turn it off completely, make it turn on when the switch is on or vice versa. * Not all of these options are available for the No Neutral version.

Power-Off Memory

You will be able to configure if you need the lights to turn on automatically after a power outage. No more lights turning on suddenly in the night.

Extra safety and durability

The Aqara Smart 20A Switch H1 passed all the necessary certifications such as CE and EAC and incorporates several levels of protection such as overheat and overload*, which makes is compatible with highest safety standards. Moreover, the new, award-wining design with a short button travel and symmetrical housing has increased durability compared to previous generations of Aqara Wall Switches.

Connect Aqara sensors with the Aqara Smart 20A Switch H1 and forget about using your switches manually.

IF: Motion is detected

THEN: Turn on the bedroom lights

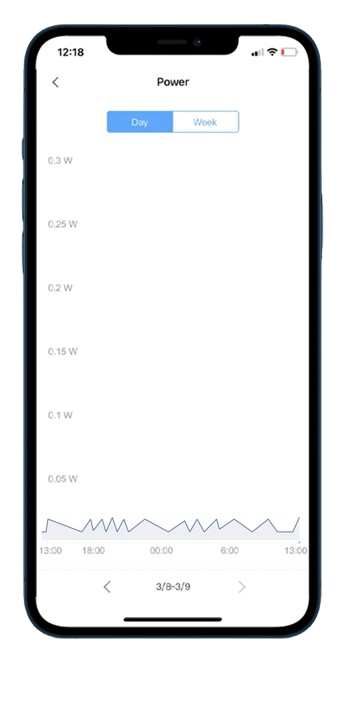

Power Monitoring and Statistics

How much power do your lights and other electrical appliances consume daily? The Aqara Smart 20A Switch H1 can monitor the power-consumption and generate a power curve diagram to make it easier for you to understand which devices are most power-efficient and which are not.

Product Specification

Model	WS-K01D
Dimension	85.8 × 86 × 37.55 mm
Wireless Protocol	Zigbee 3.0
Input Power	100-250VAC, 50/60Hz, Max. 20A (resistive load)
Operating Temperature	0°C ~ 40 °C (32°F～104°F)
Operating Humidity	0 ~ 95% RH, no condensation
Zigbee Operation Frequency	2405-2480MHz
Zigbee Maximum Output Power	≤ 13dBm
