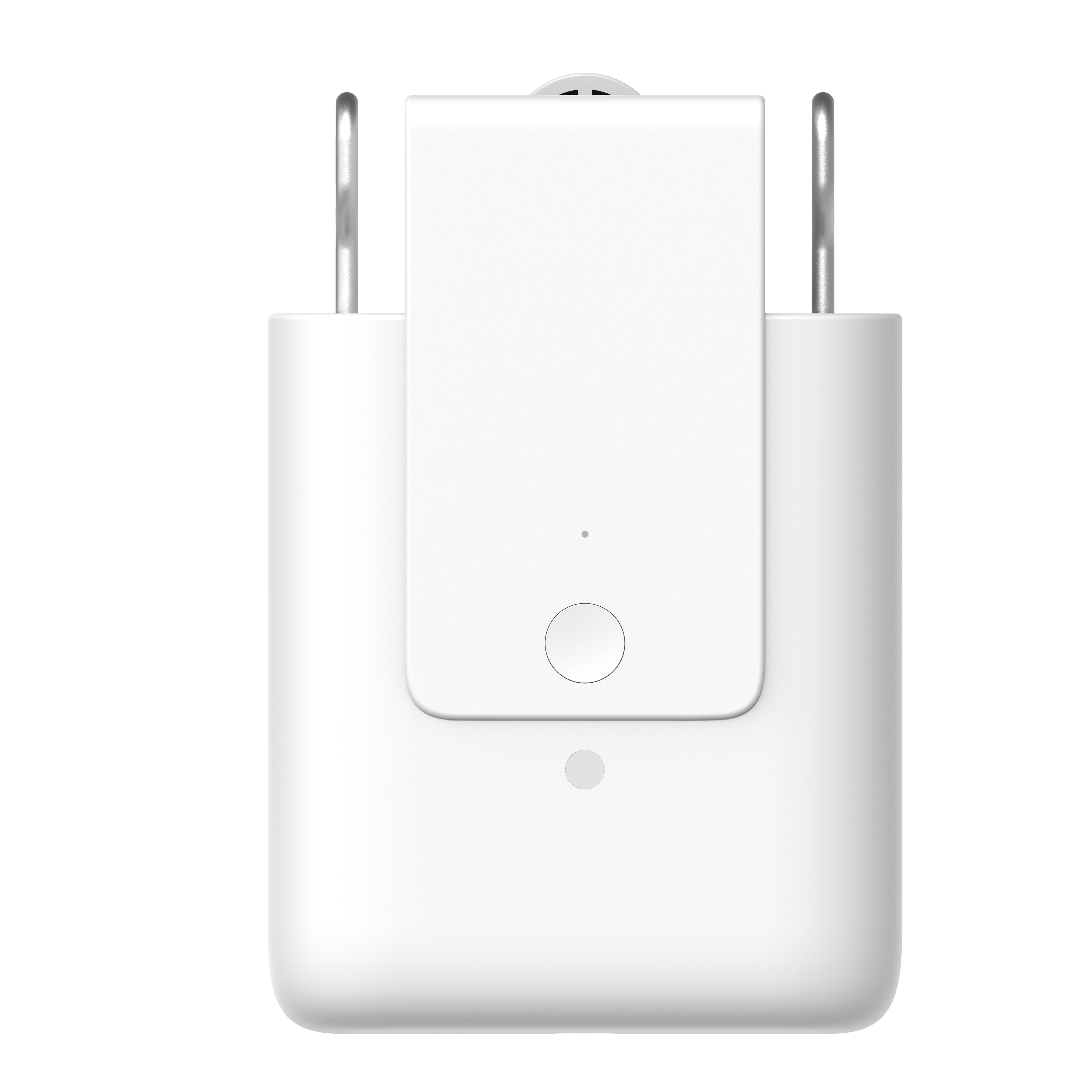

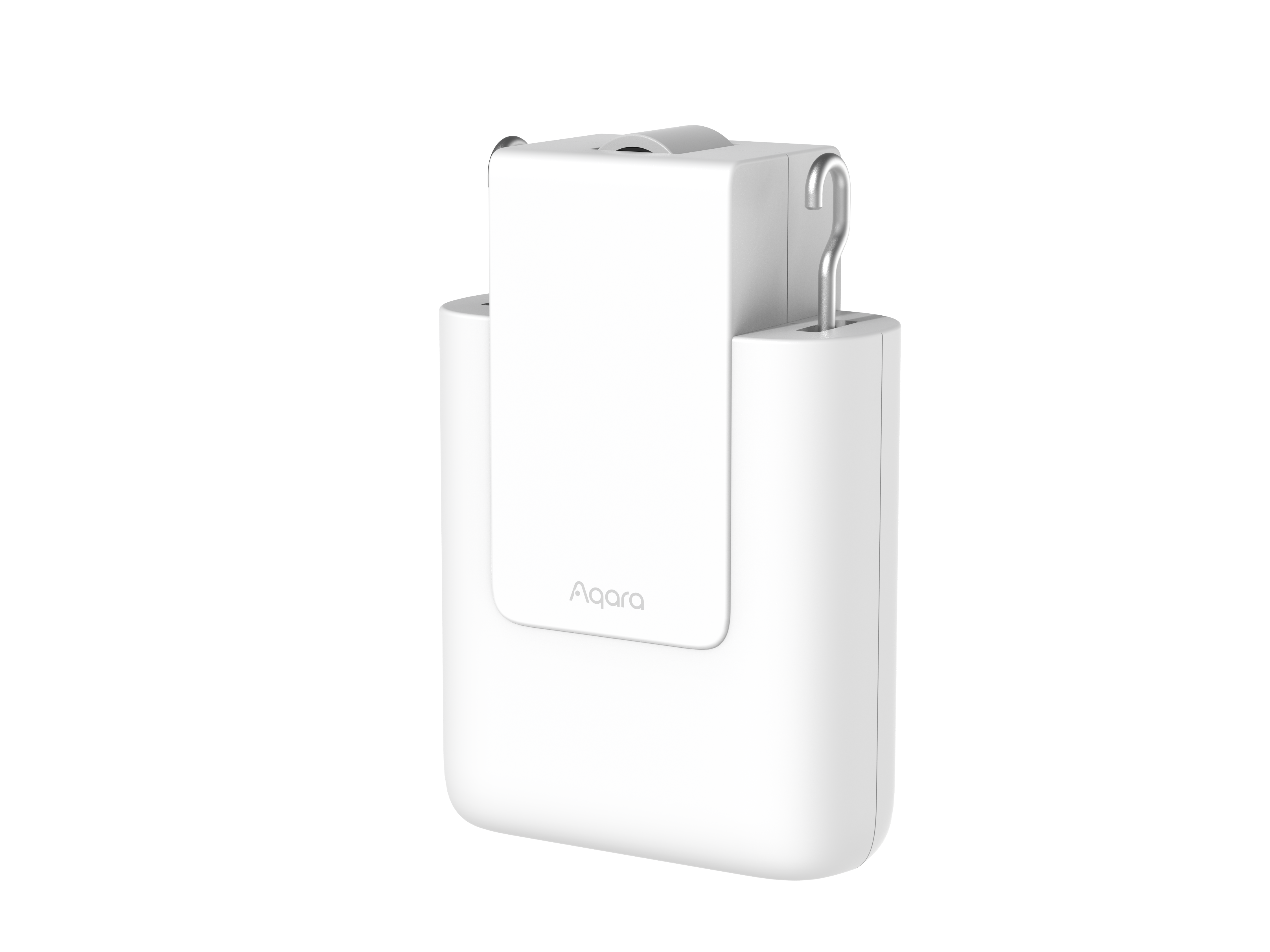

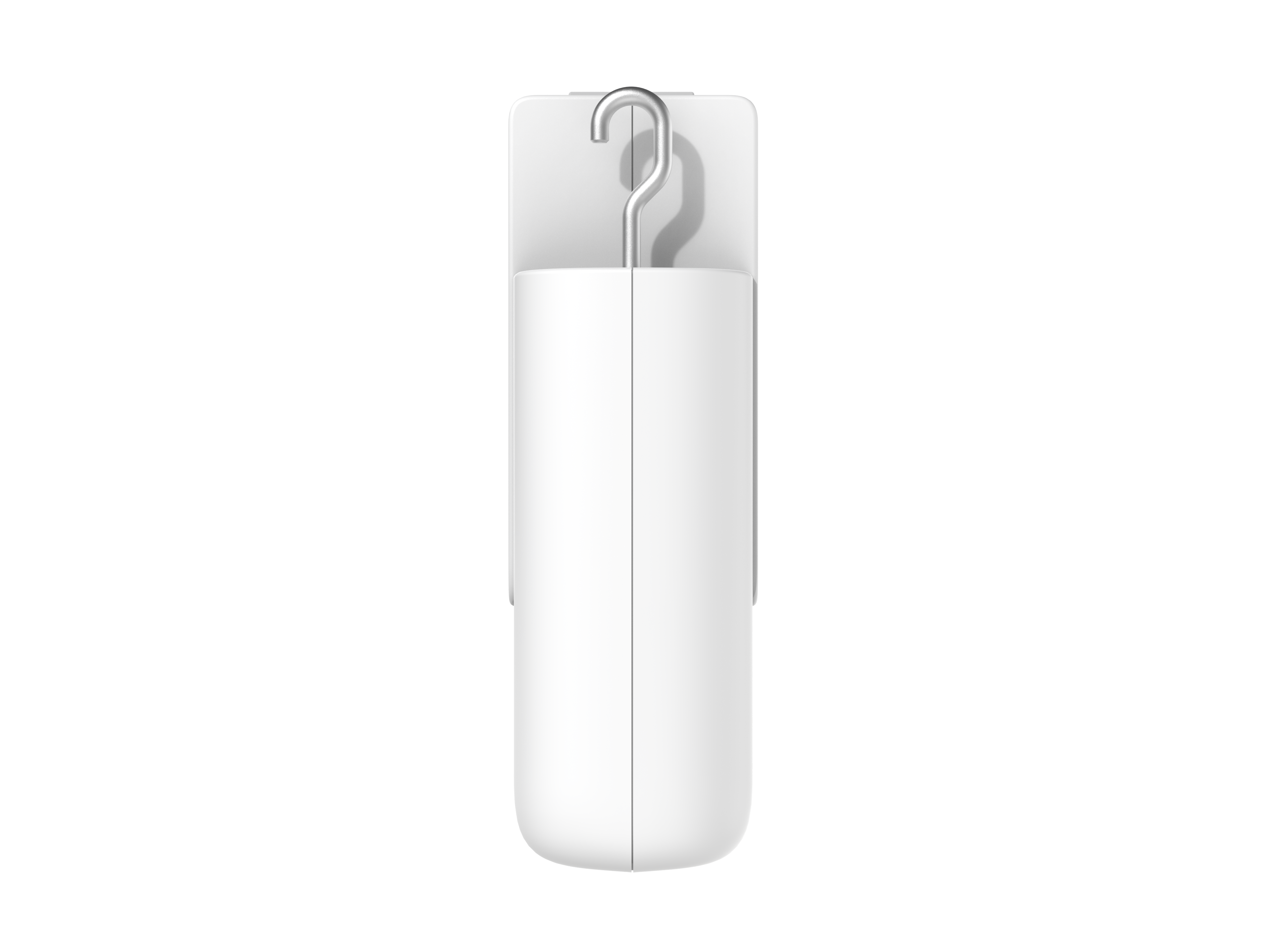

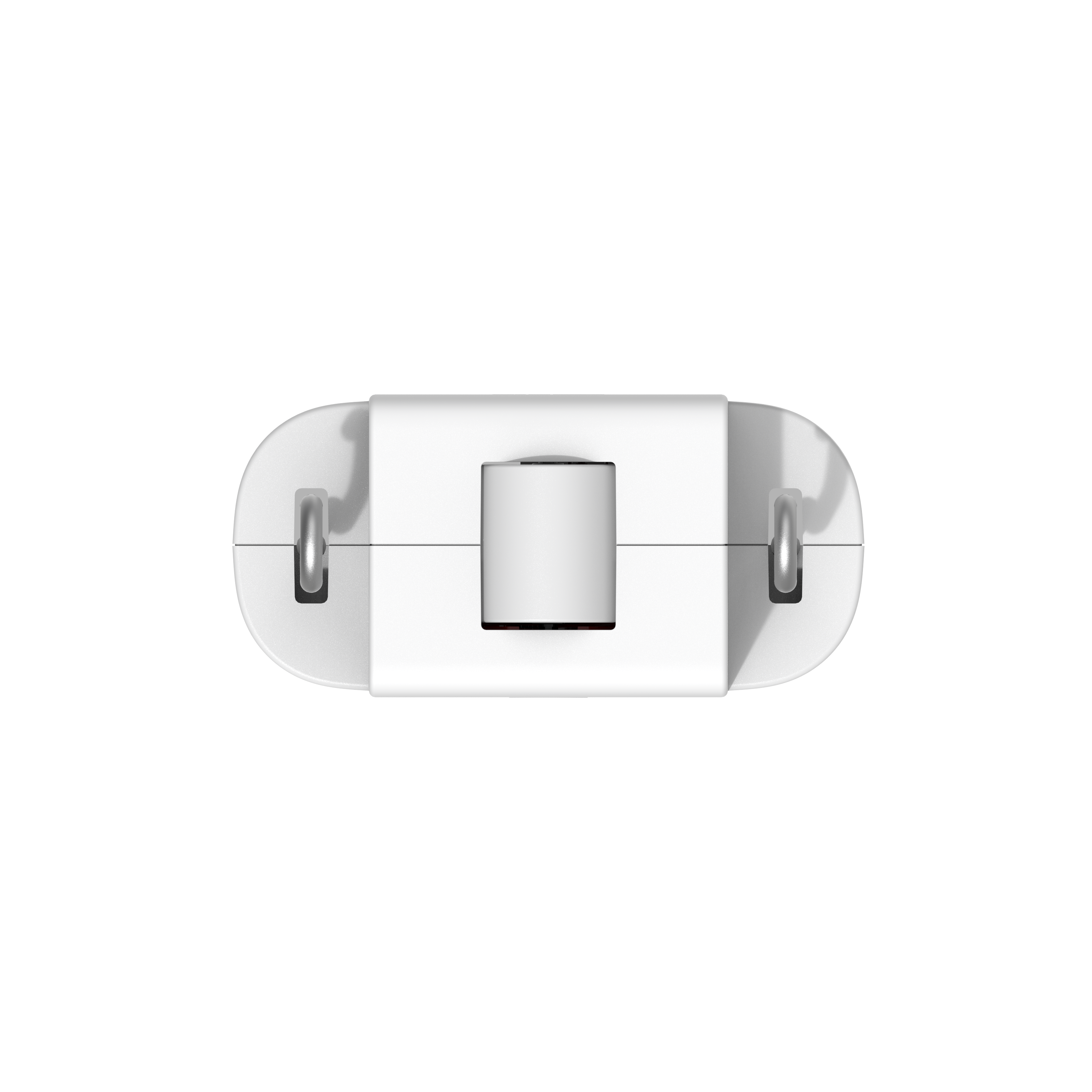

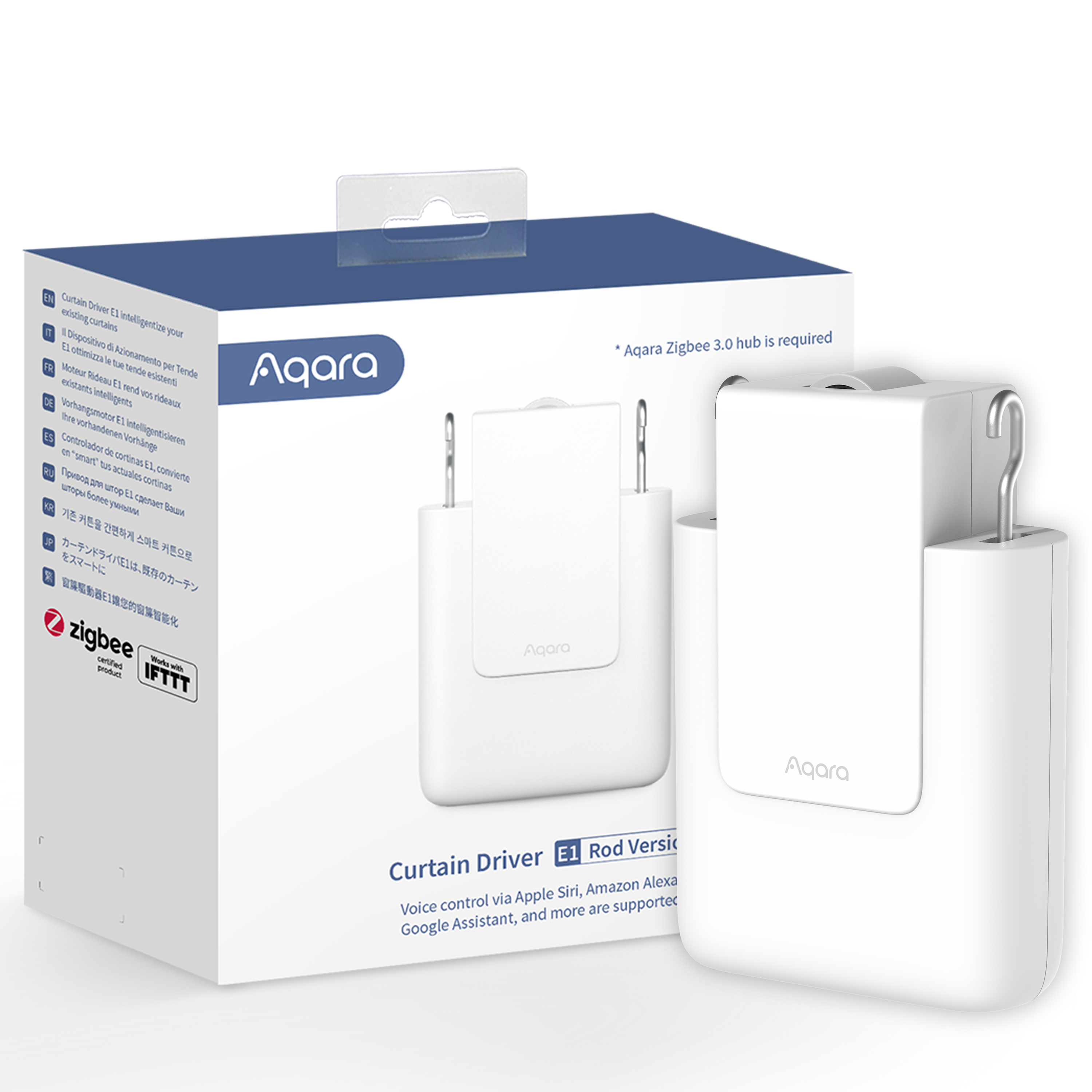

Aqara Curtain Driver E1
Price range: $140.00 through $150.00
Overview
- Protocol: Zigbee 3.0
- Requires Aqara Hub: Yes
- Colour: White
- Power: Rechargeable battery (included), or USB Type-C (for charging or constant power supply)
- Dimension: 140.5 × 96 × 44 mm
- Type: Track or Rod version
- Maximum load: 12kg
- Track version: U-rail, I-rail
- Rod version: Grommet, Ring top curtains
- Adjustable opening speed
- Built-in light sensor for automation
Pricing & Warranty:
- Installation: Excluded
- Warranty: 2 years (Refer to Warranty Policy)
Key Highlights
The Aqara Curtain Driver E1 is a motorized device designed to automate your existing curtains. It allows for scheduled control and seamless integration with other Aqara smart devices (such as wireless mini switch T1, cube T1 pro) through the Aqara Home app.

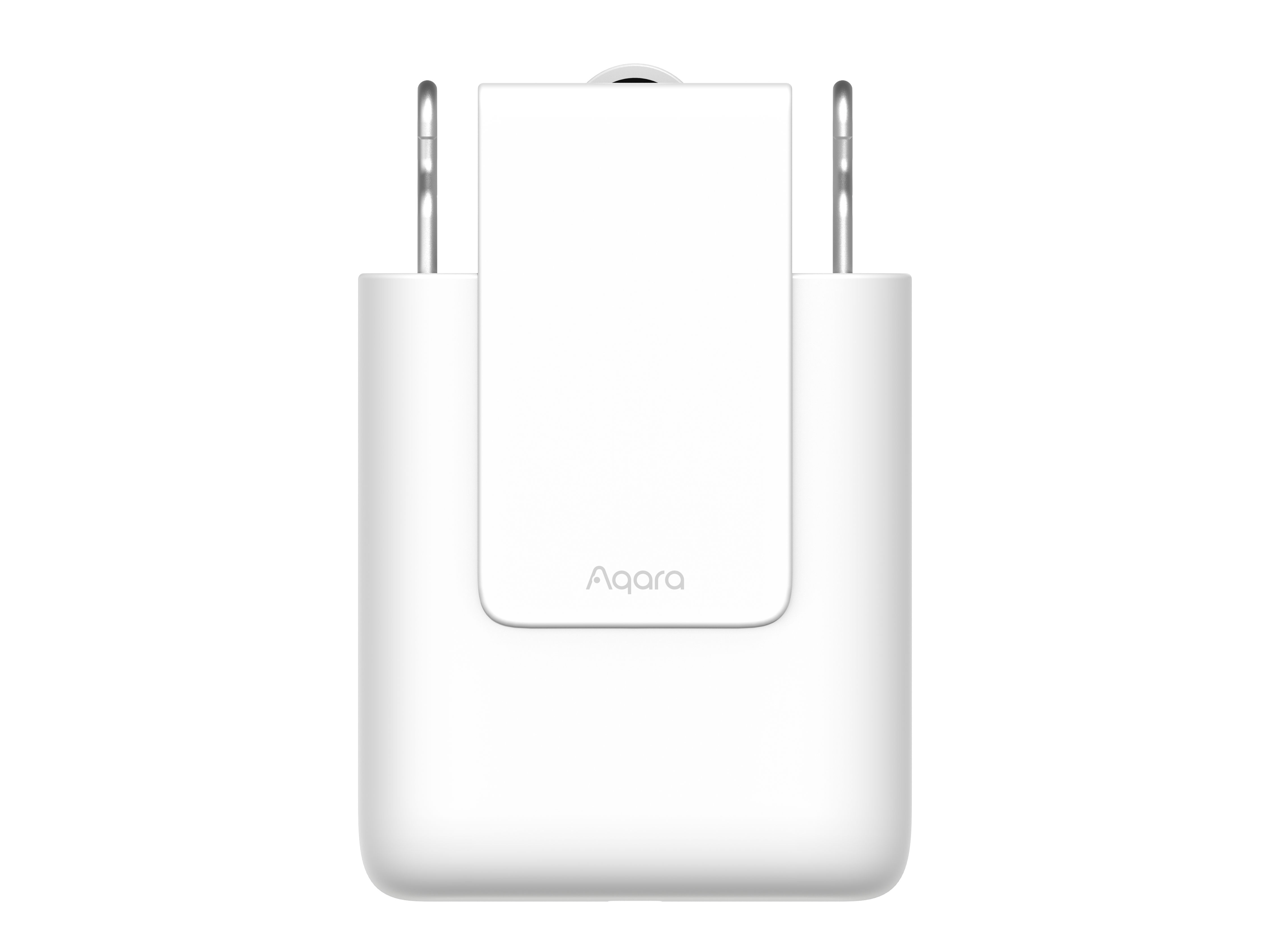

Aqara Curtain Driver E1

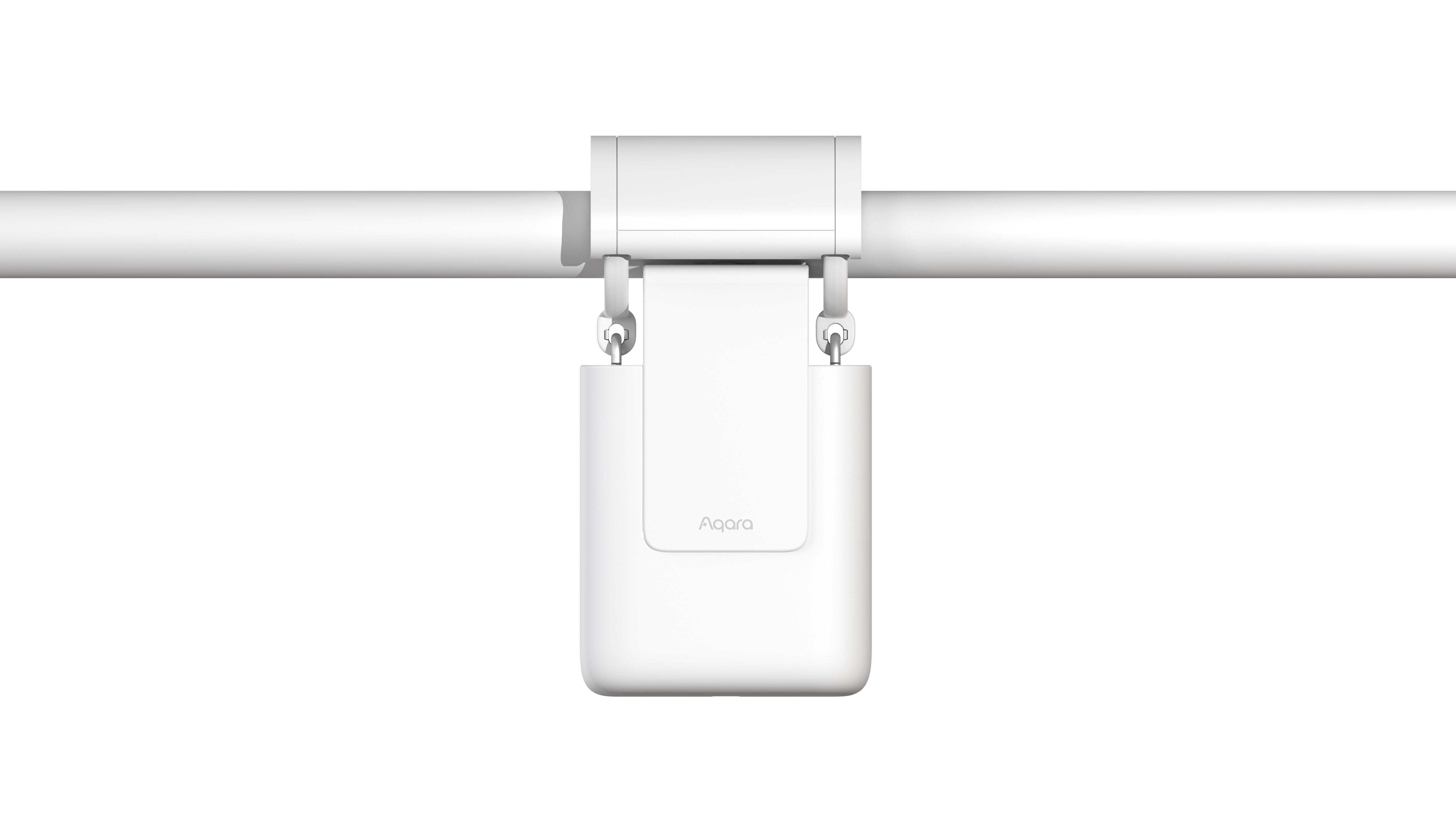

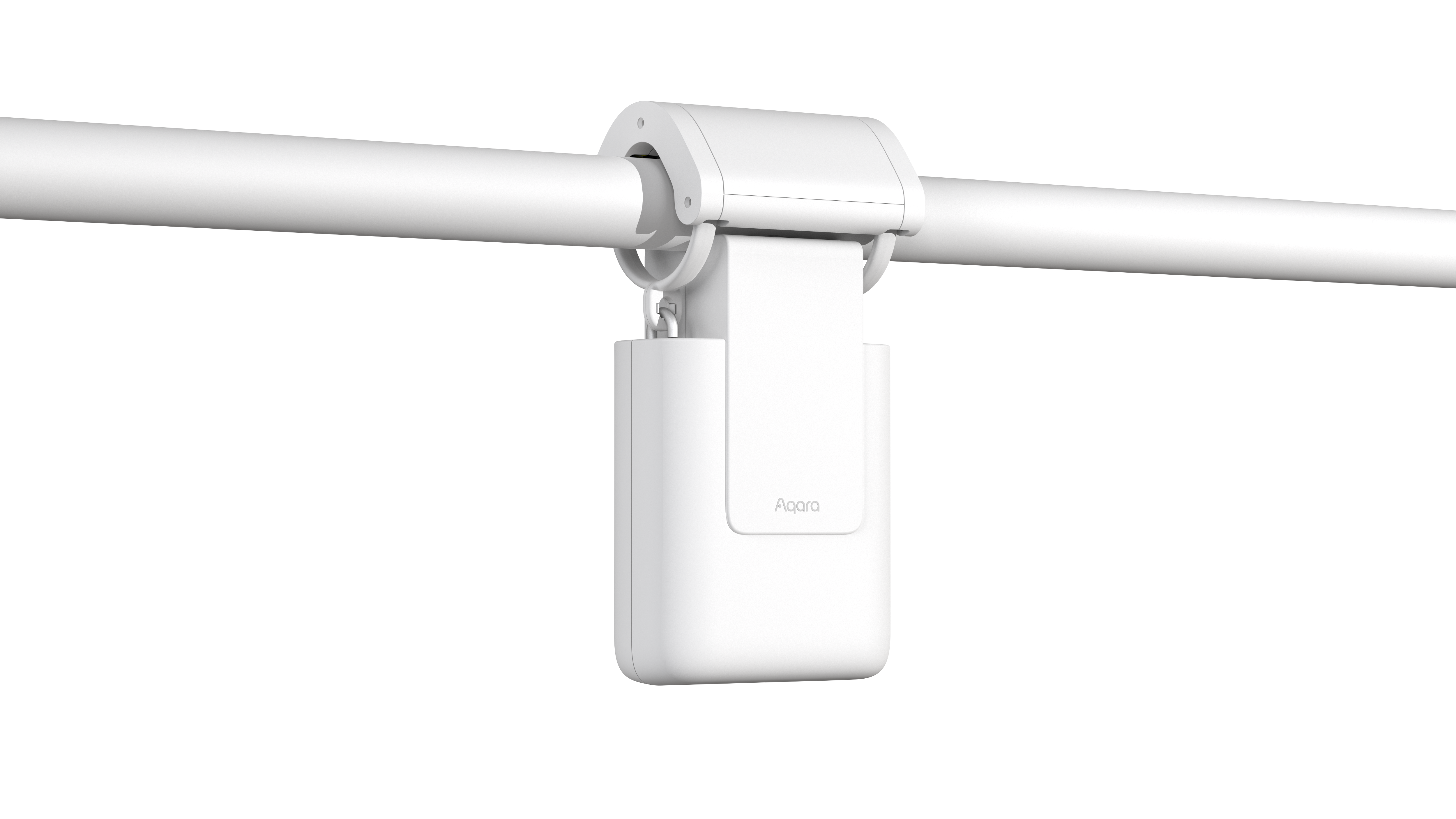

(Rod Version & Track Version)
Easy-to-use Yet Powerful Smart Curtain Controller.
Wide Compatibility
The Curtain Driver E1 is compatible with a wide range of smart home ecosystems and voice assistants.
Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT and more are supported. Matter support will be available via OTA update of Aqara hubs after the official release of Matter specifications.
* Matter support may be unavailable by the time of the launch, and will be rolled out as an OTA update of a compatible Aqara Zigbee 3.0 hub.
Easy Installation and Usage
No tools are needed. Just mount the Curtain Driver E1 onto theNo tools are needed.
Rechargeable Battery that Is Made to Last

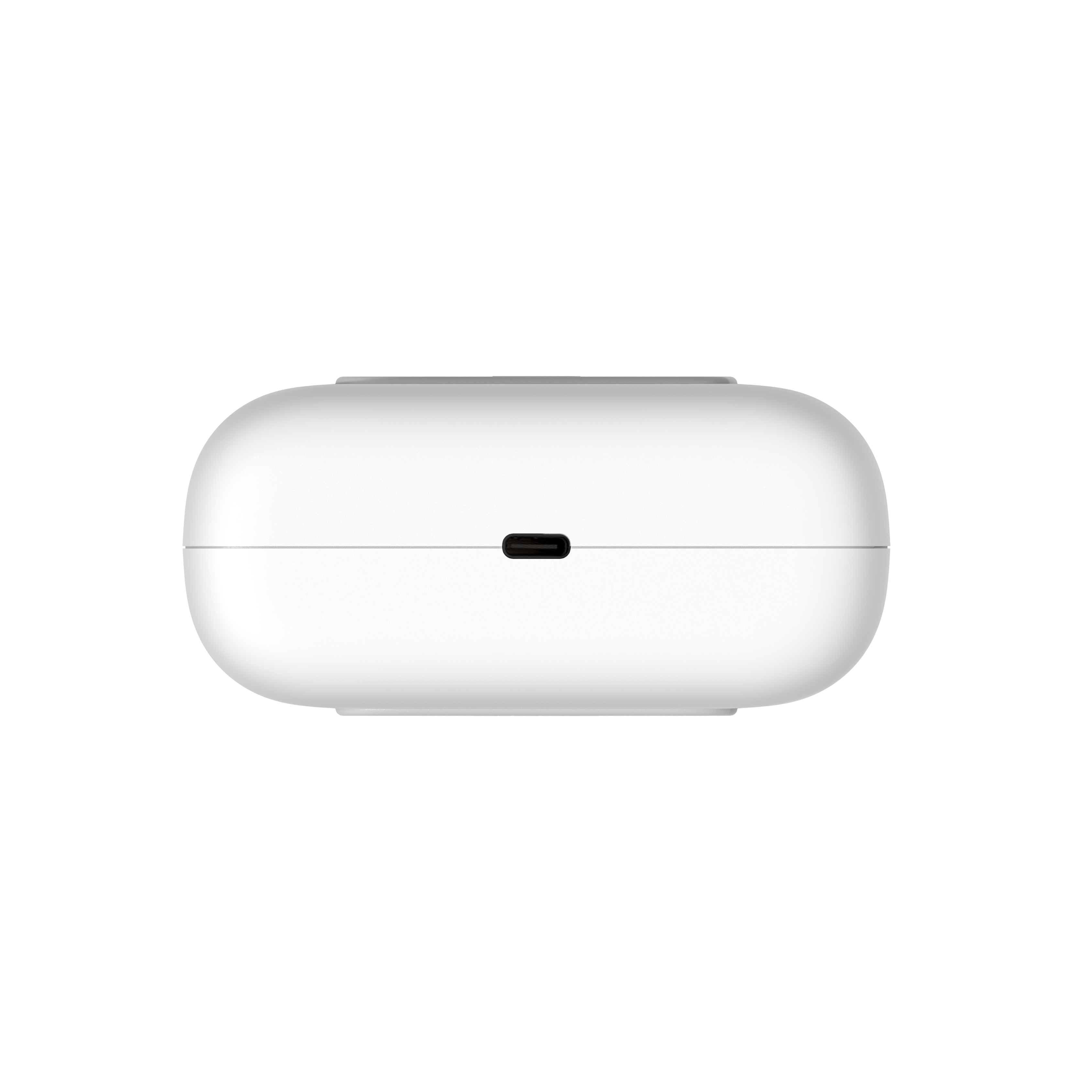

The cutting-edge energy-saving technologies and the huge 6400mAh battery are chargeable to last for up to a year.* The most modern and versatile Type-C port is used for charging or even powering the device constantly.**
* The actual battery life may vary depending on curtain weight, track length, and friction. **constant powering requires the cable to be placed freely to prevent it from being tangled.
Design to Fits for Popular Curtain Track You Would Probably Use
* The actual battery life may vary depending on curtain weight, track length, and friction. **constant powering requires the cable to be placed freely to prevent it from being tangled.
Multiple Control Methods for Any Occasion
· By voice command
"Hey Siri Open the curtain!"
Apple's Siri, Amazon Alexa and Google Assistant are supported. Choose from the most popular voice assistant that you like to control the Curtain Driver E1 easily by your voice command.
By an action or event
Control could be achieved by only one touch: By pulling the curtain slightly, pressing the Aqara Mini Switch, turning once the Aqara cube controller, and more for you to explore.
By a built-in or external illuminations sensor
The Curtain Driver can also be controlled automatically by the brightness level, or by temperature, motion or other events detected by a wide variety of Aqara sensors.

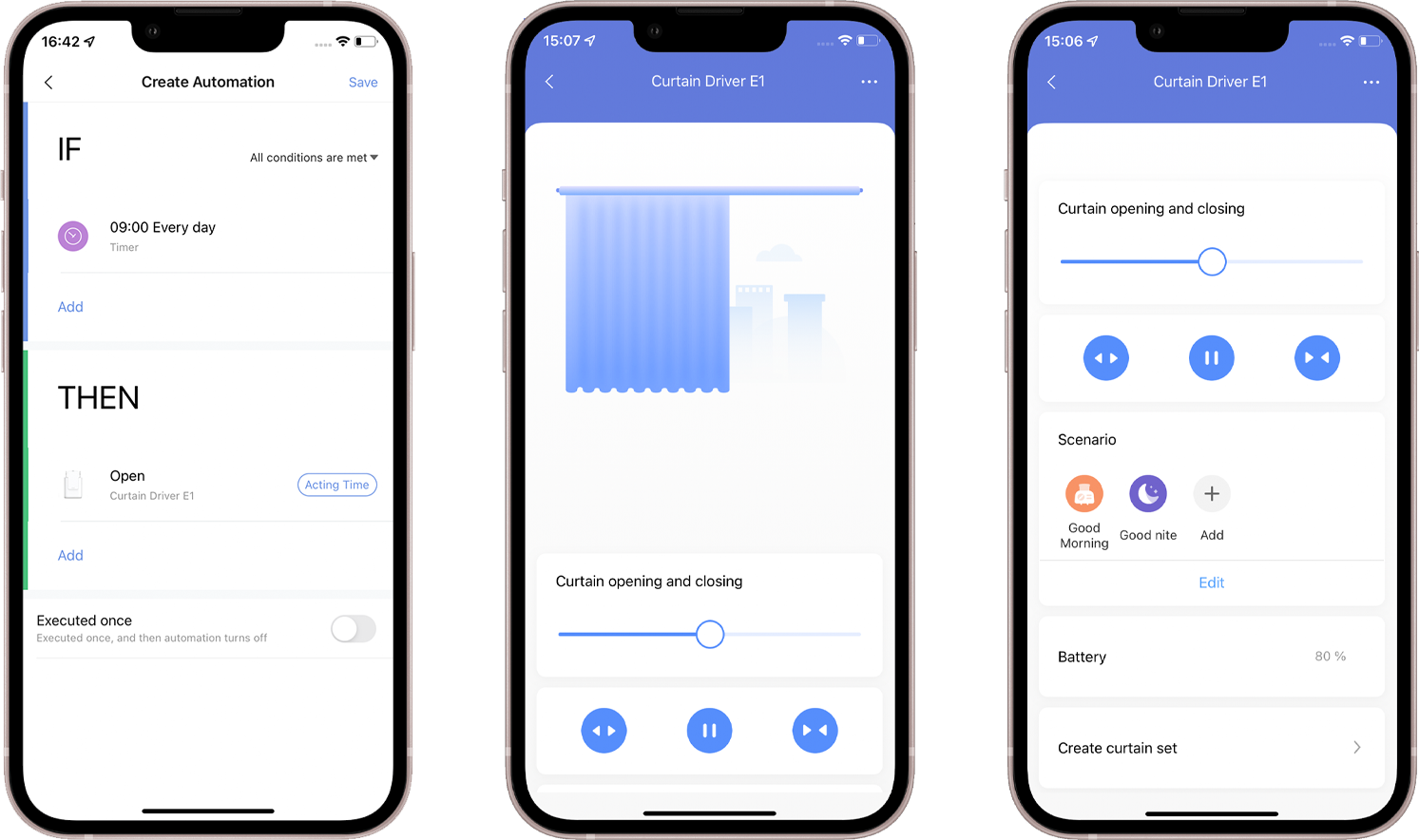

By time or other app setting
The Aqara Home app also has a powerful scheduling function including days of the week, holidays, monthly and yearly repetitions, geofencing, as well as sunrise and sunset.

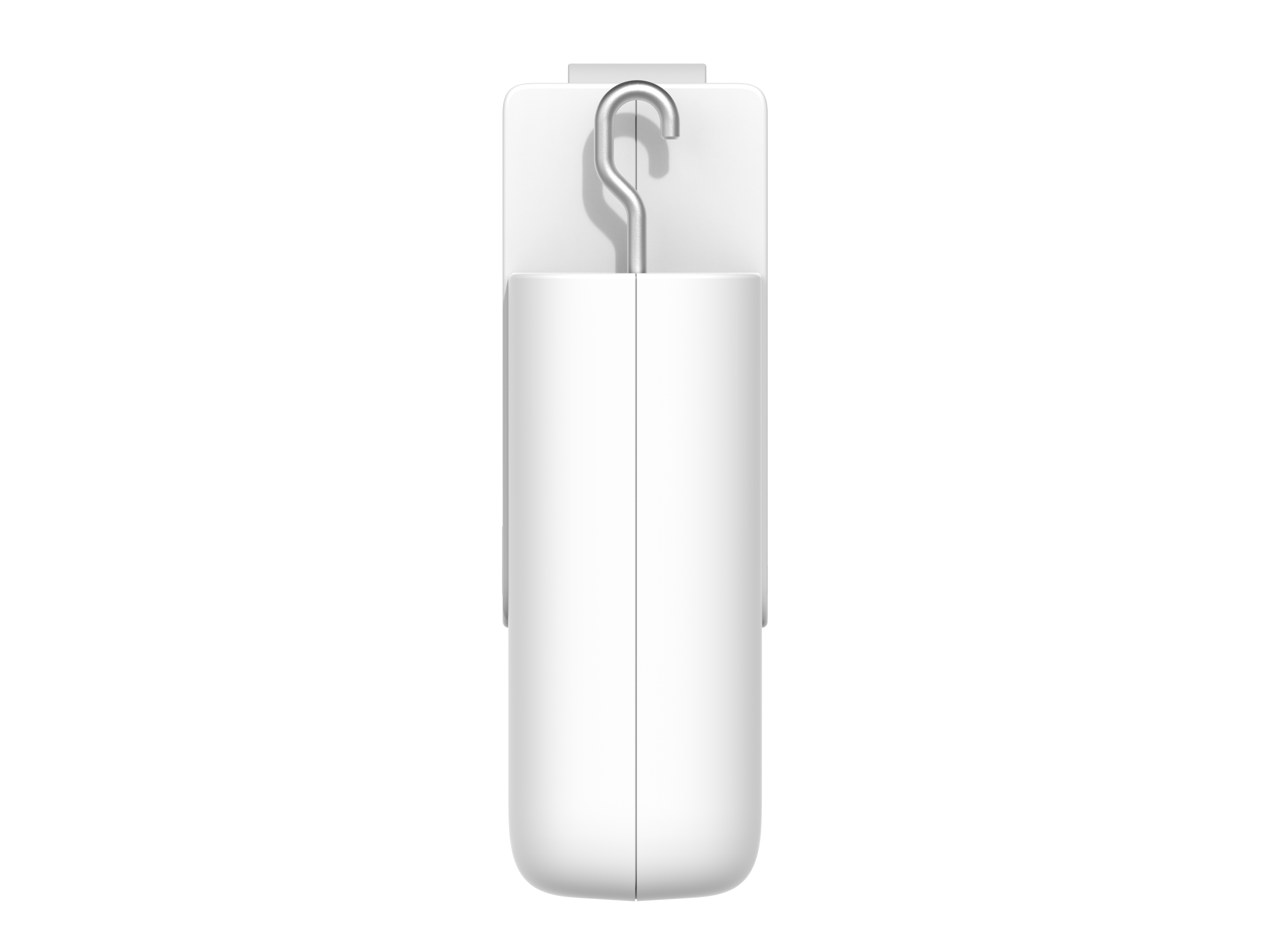

Compatc Yet Powerful Body
The Curtain Driver E1 can pull even the heaviest curtains: thanks to its powerful motor, the maximum load can reach up to a record 12 kilograms!

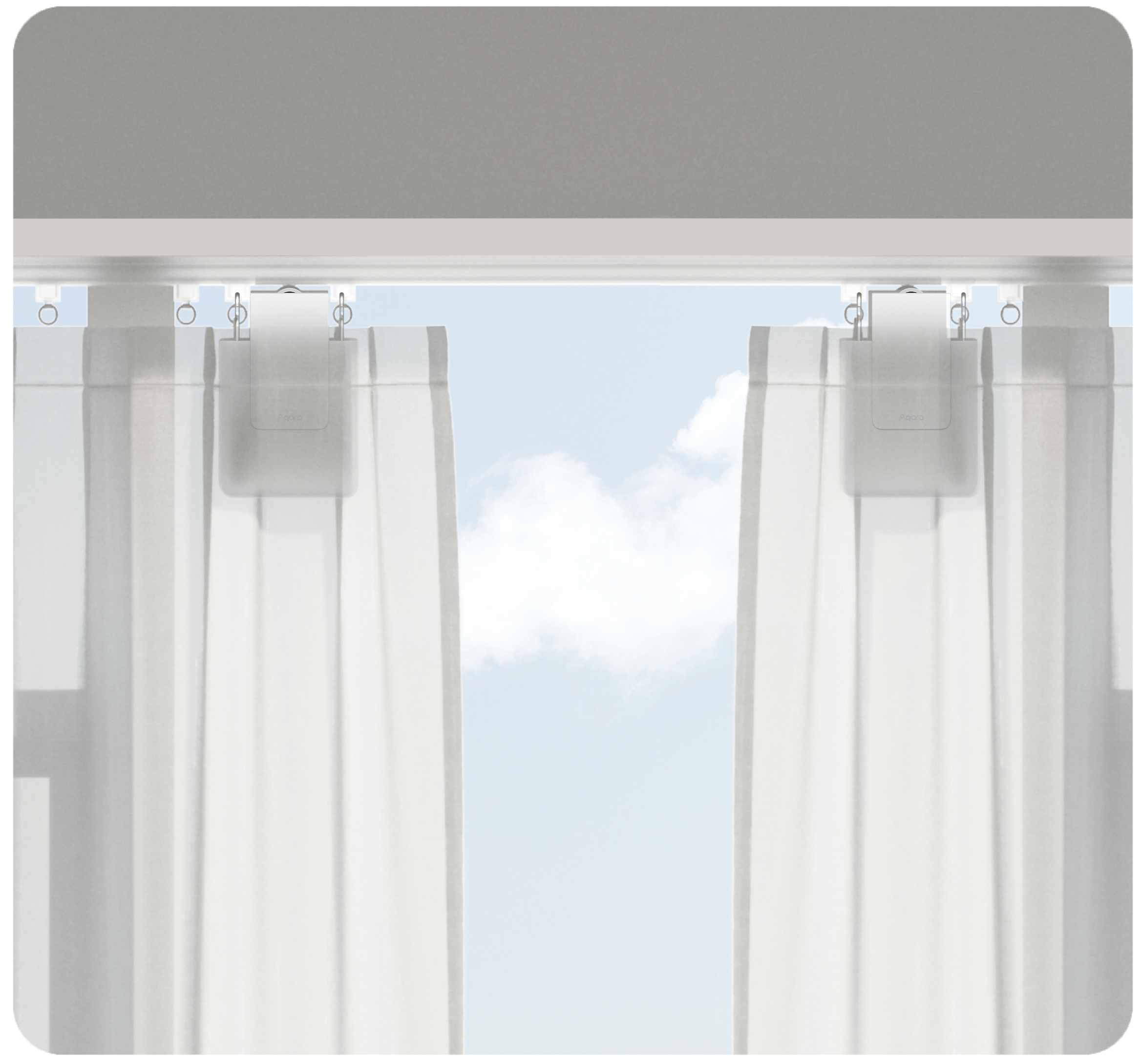

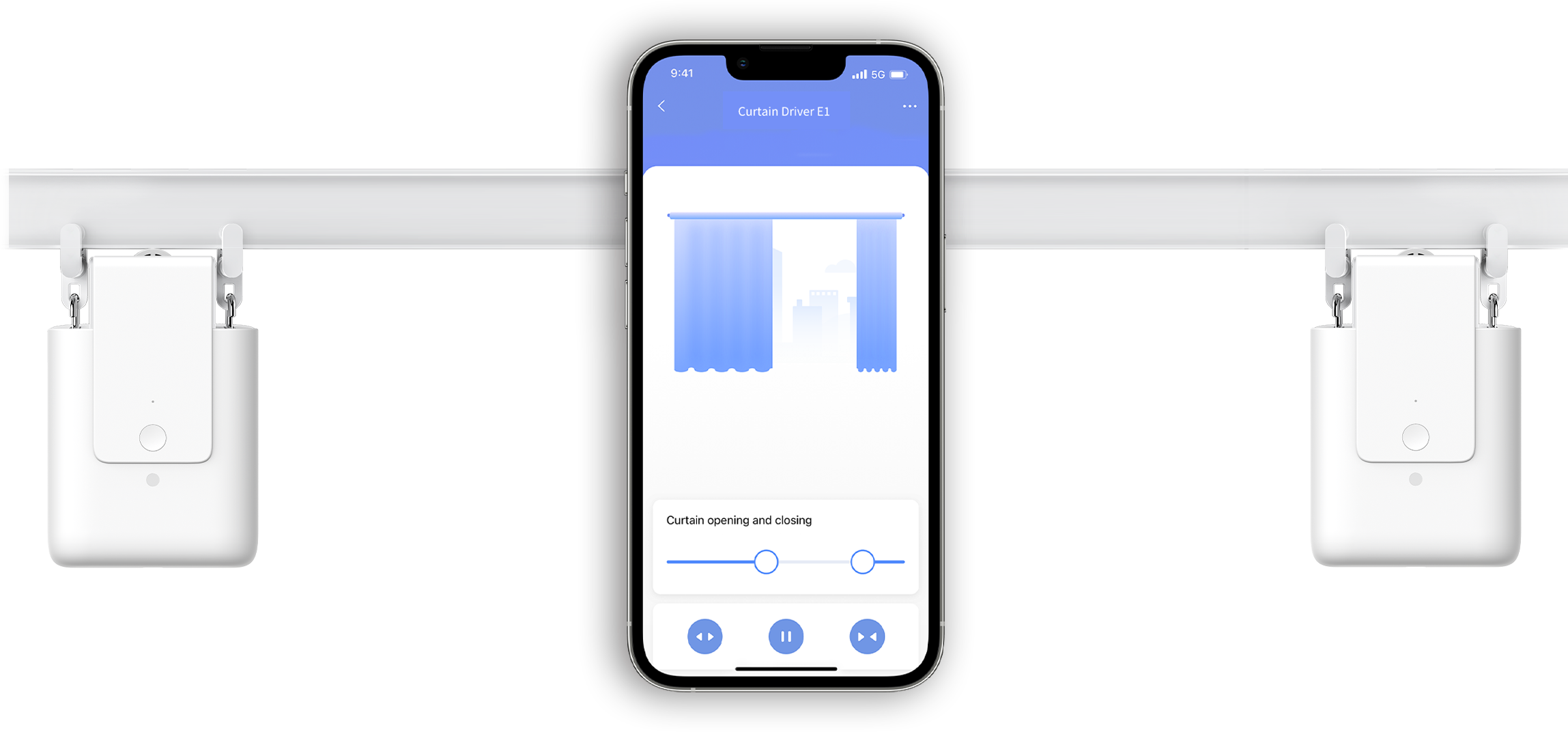

Install Two Curtain Drivers on One Window
To increase the battery life and opening speed, you can combine two Curtain Drivers per one window, so that each side of the window will be either controlled individually or synchronized with another one!
Installation Requirements (Rod Version)
Specification
Product Specification
 Weight | N/A |
|---|---|
| Track or Rod | Rod, Track |
 Model | CM-M01 |
 Color | White |
 Dimension | 140.5 × 96 × 44 mm |
 Wireless Protocol | Zigbee 3.0 IEEE 802.15.4 |
| Battery | Lithium battery (rechargeable) |
| Battery Life | Up to 1 year |
| Rated Current | 1.5 A |
| Rated Torque | 0.2 N·m |
| Rated Voltage | 5 V |
| Rated Power Input | 7.5 W |
| Rated Rotor Speed | 100 r/min |
| Rated Operating Time | 4 min |
| Moving Speed | 12 cm/s |
| IP Rating | IP20 |
| Operating Humidity | 0~95% RH, no condensation |
| Operating Temperature | 0°C ~ 45°C |
| Maximum Load | 12KG |
