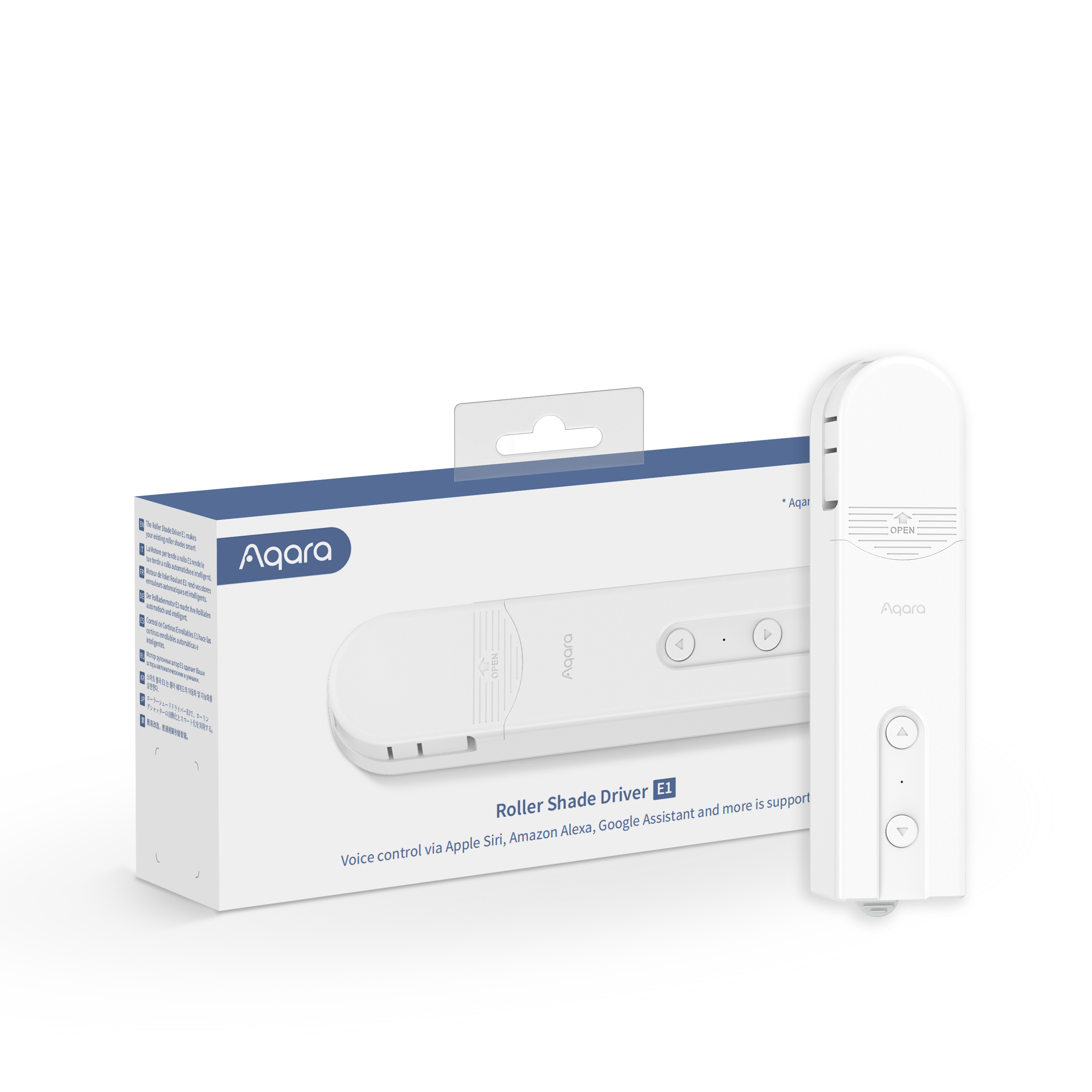

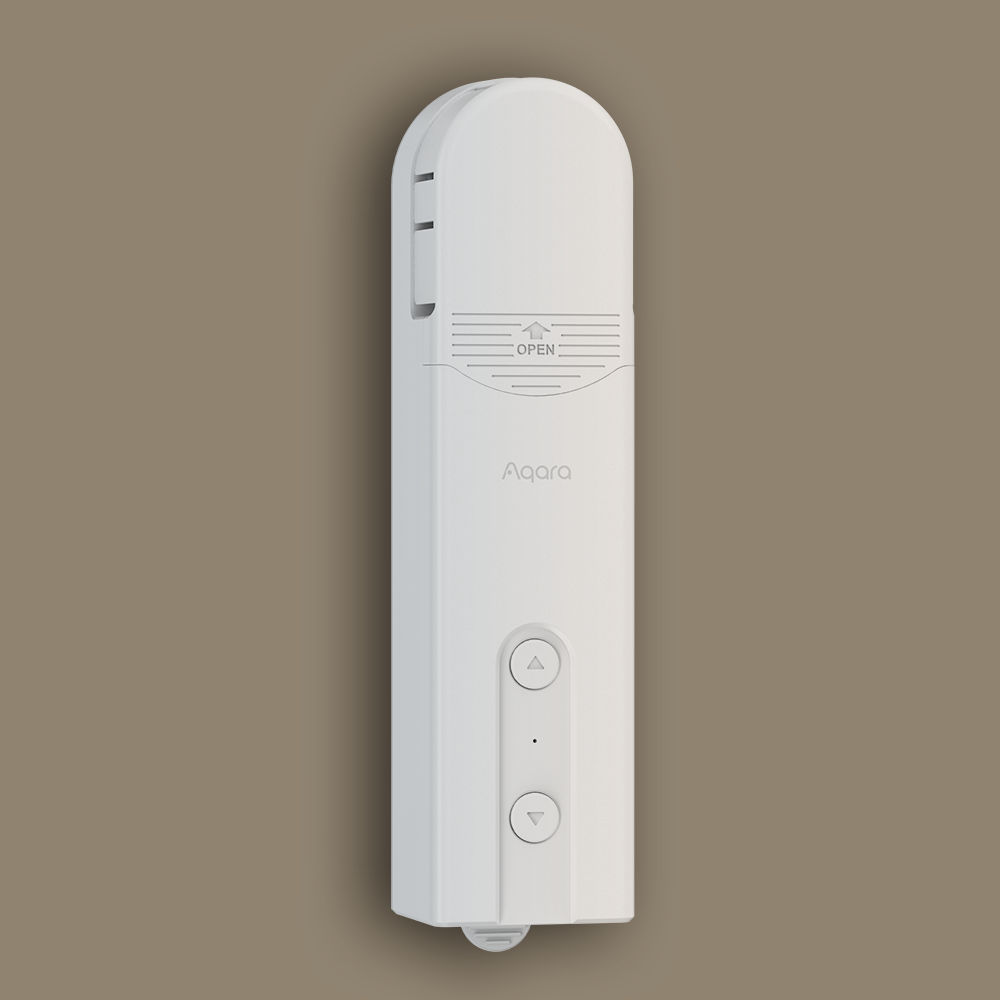

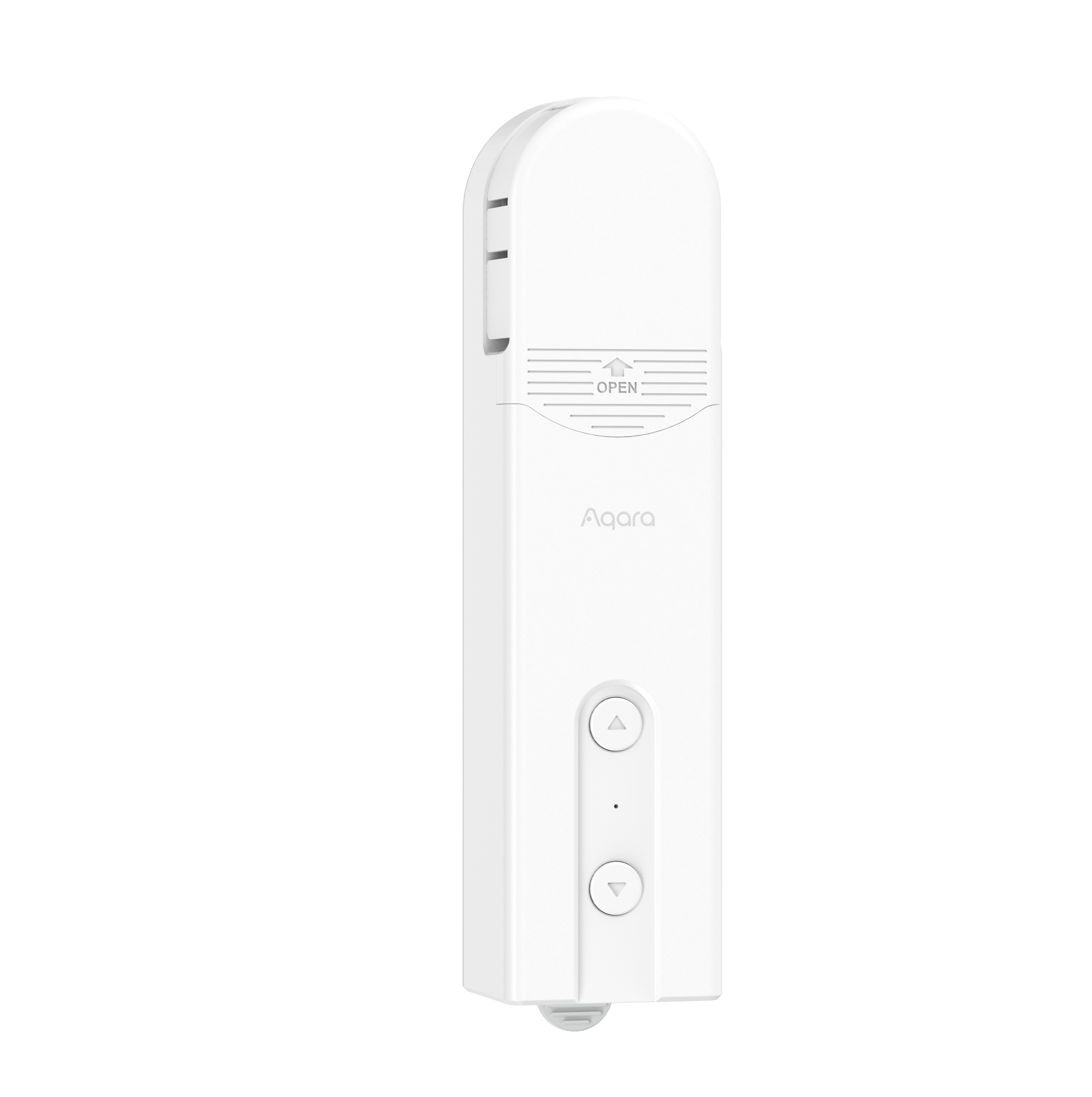

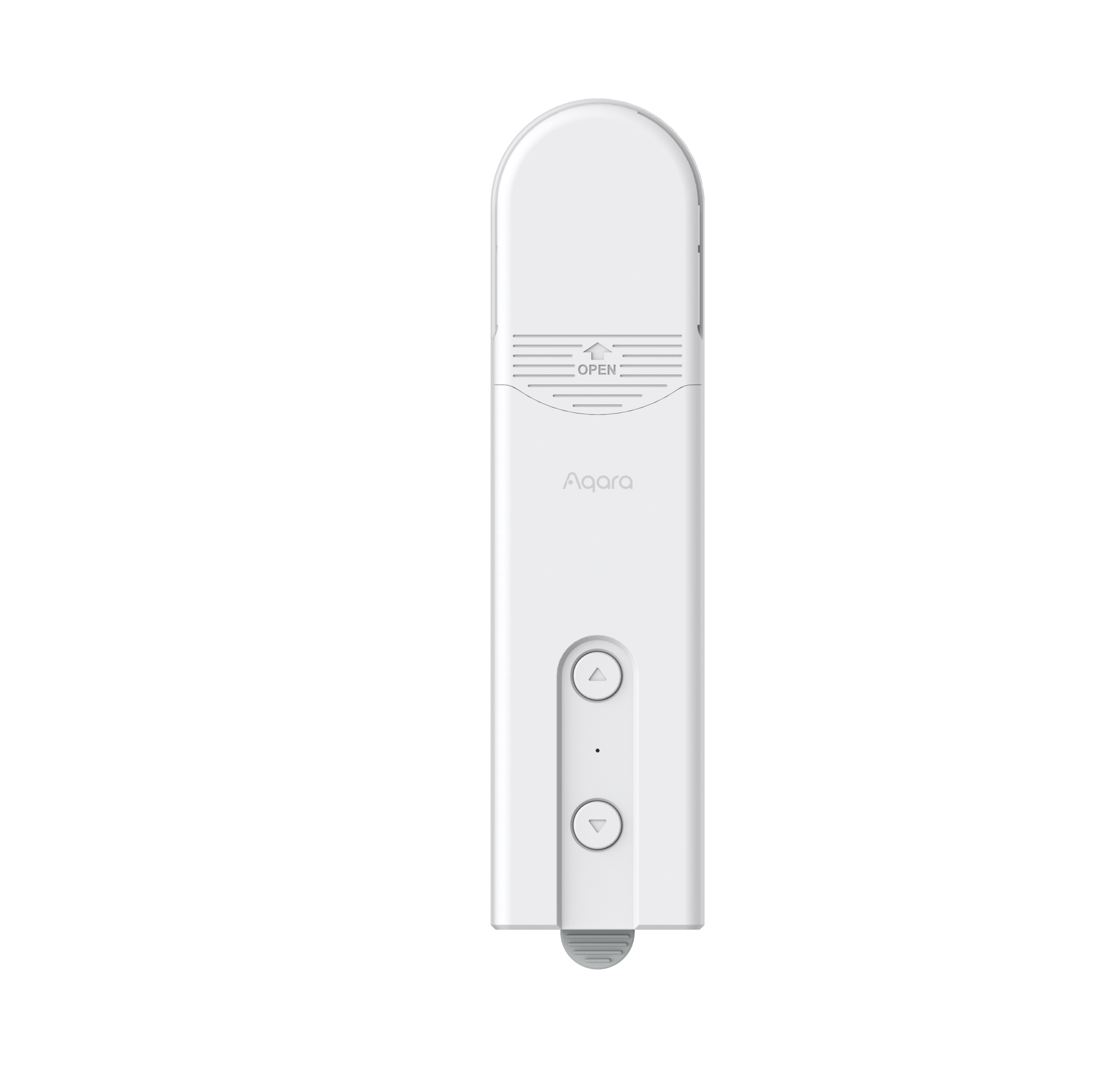

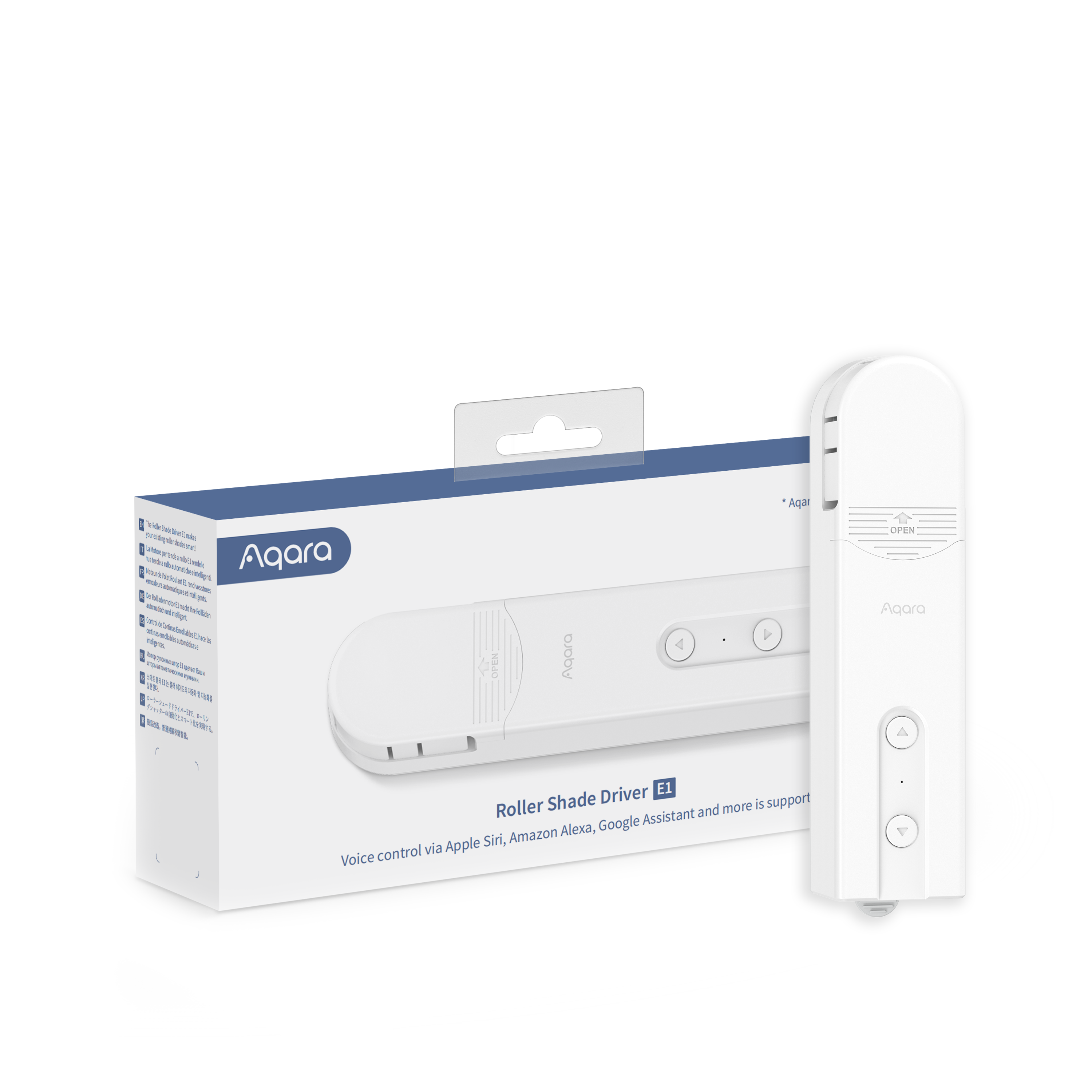

Aqara Roller Shade Drive E1

$100.00

Overview

Protocol: Zigbee 3.0
Requires Aqara Hub: Yes
Colour: White
Power: Rechargeable battery (included), or USB Type-C (for charging or constant power supply)
Dimension: 43×38.5×175 mm
Compatible with most types of shades/blinds: Roller shade, Zebra roller blinds, Blinds, Shangri-la blinds
Comes with adapters to support different types of beaded cords (diameter: 3 ~ 6mm)

Warranty:

Installation: Excluded
Warranty: 2 years (Refer to Warranty Policy)

SKU: RSD-M01 Category: Curtains & Blinds

Key Highlights

The Aqara Roller Shade Driver E1 is a motorized device designed to automate your existing shades/blinds. With an Aqara hub, it can realize functions such as remote control and timing control via the Aqara Home app, and work with other smart devices to form a smart home. The user will be able to pre-set desired open/close percentages and switch between them easily.

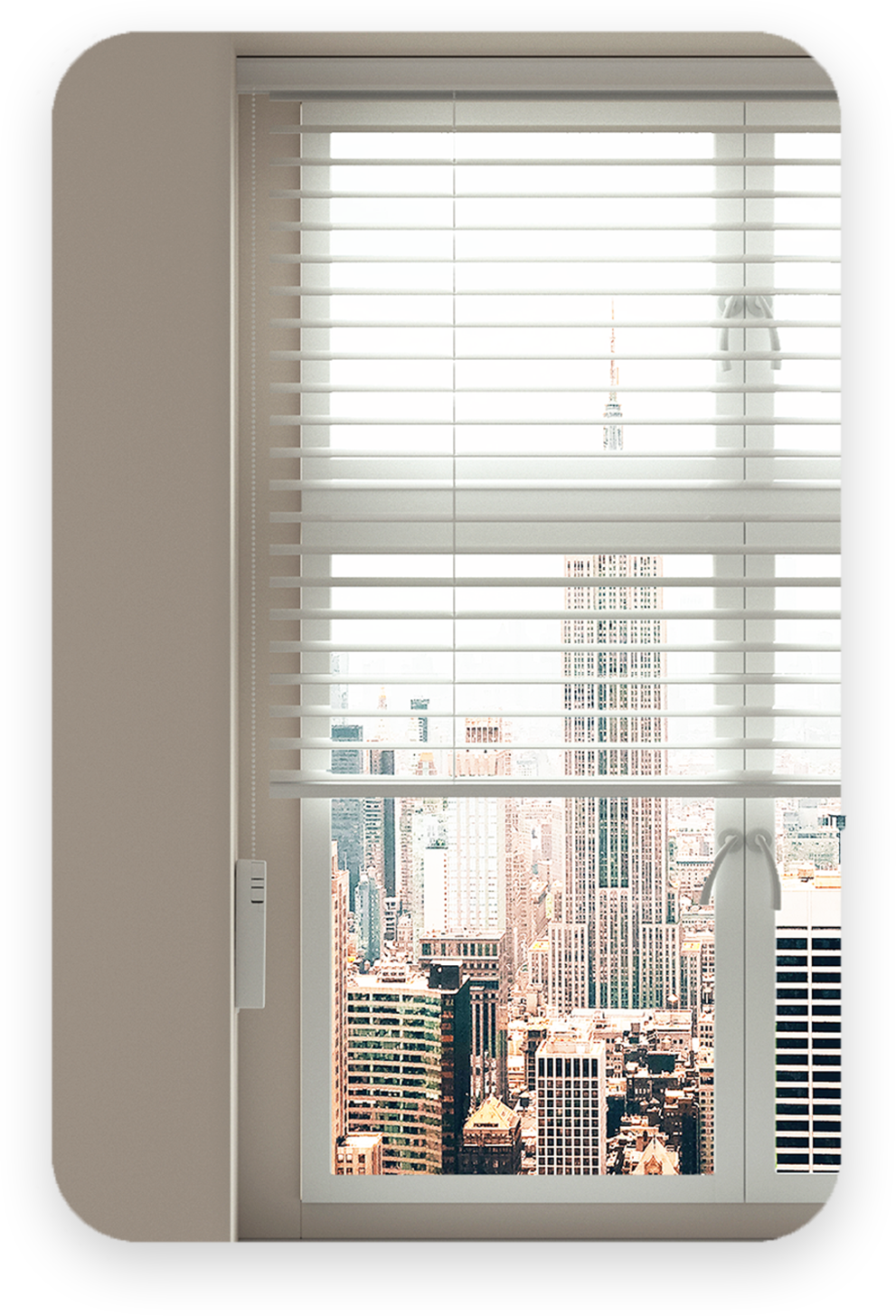

The Aqara Roller Shade Driver E1

Just 5-minute installation to free yourself from the tedious task of setting your roller shades every day.

Zigbee 3.0 Protocol

Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology.

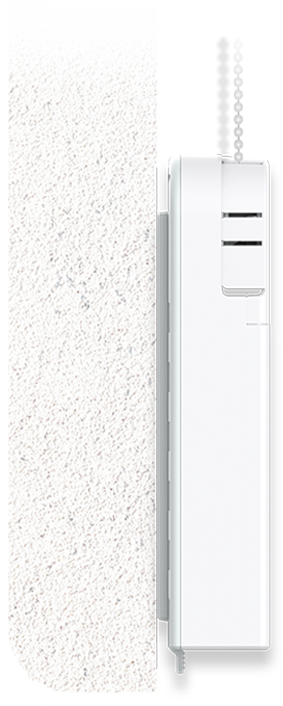

Easy Installation

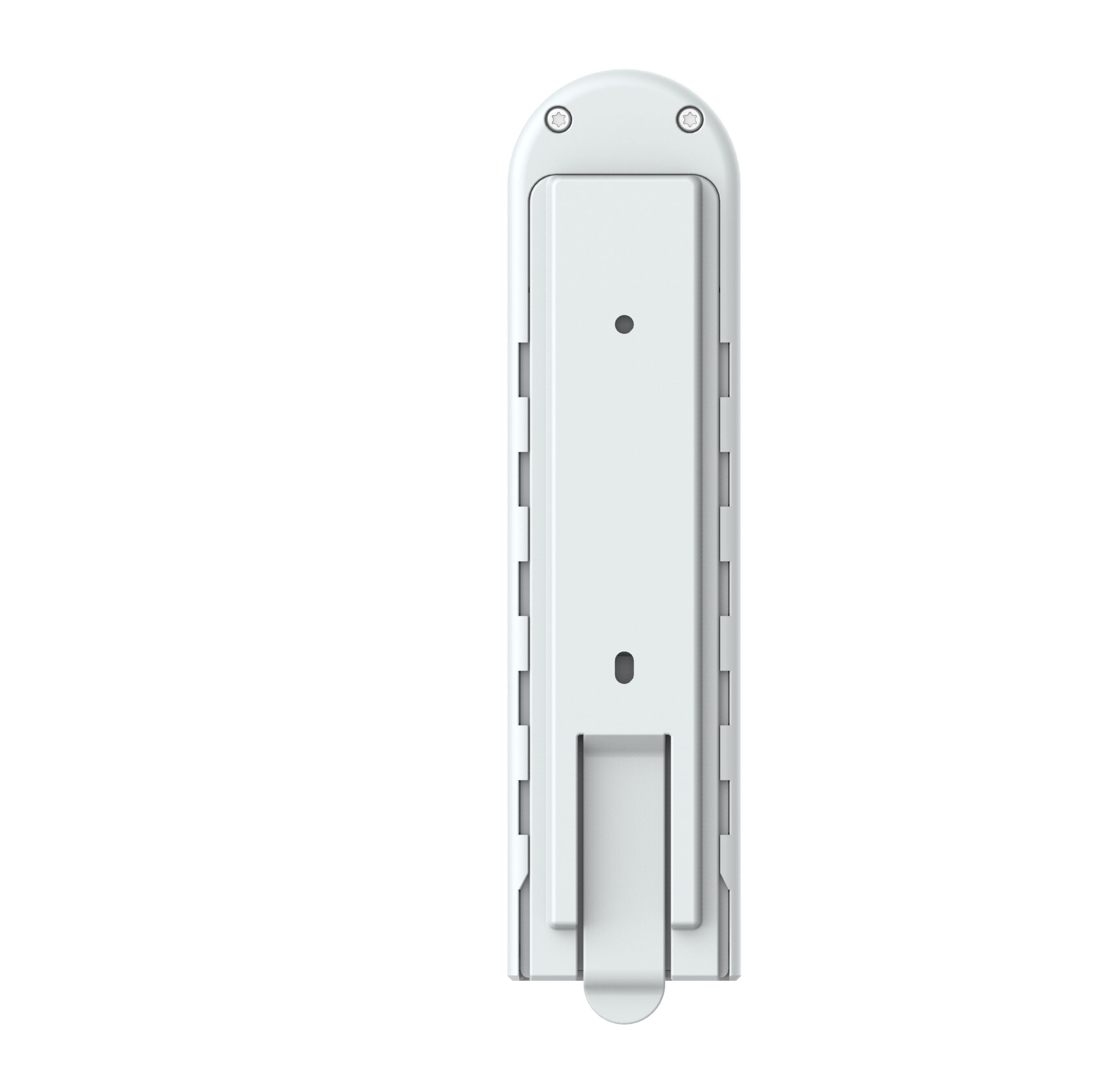

Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device will be ready to be connected.

Charging or Constant Power Supply

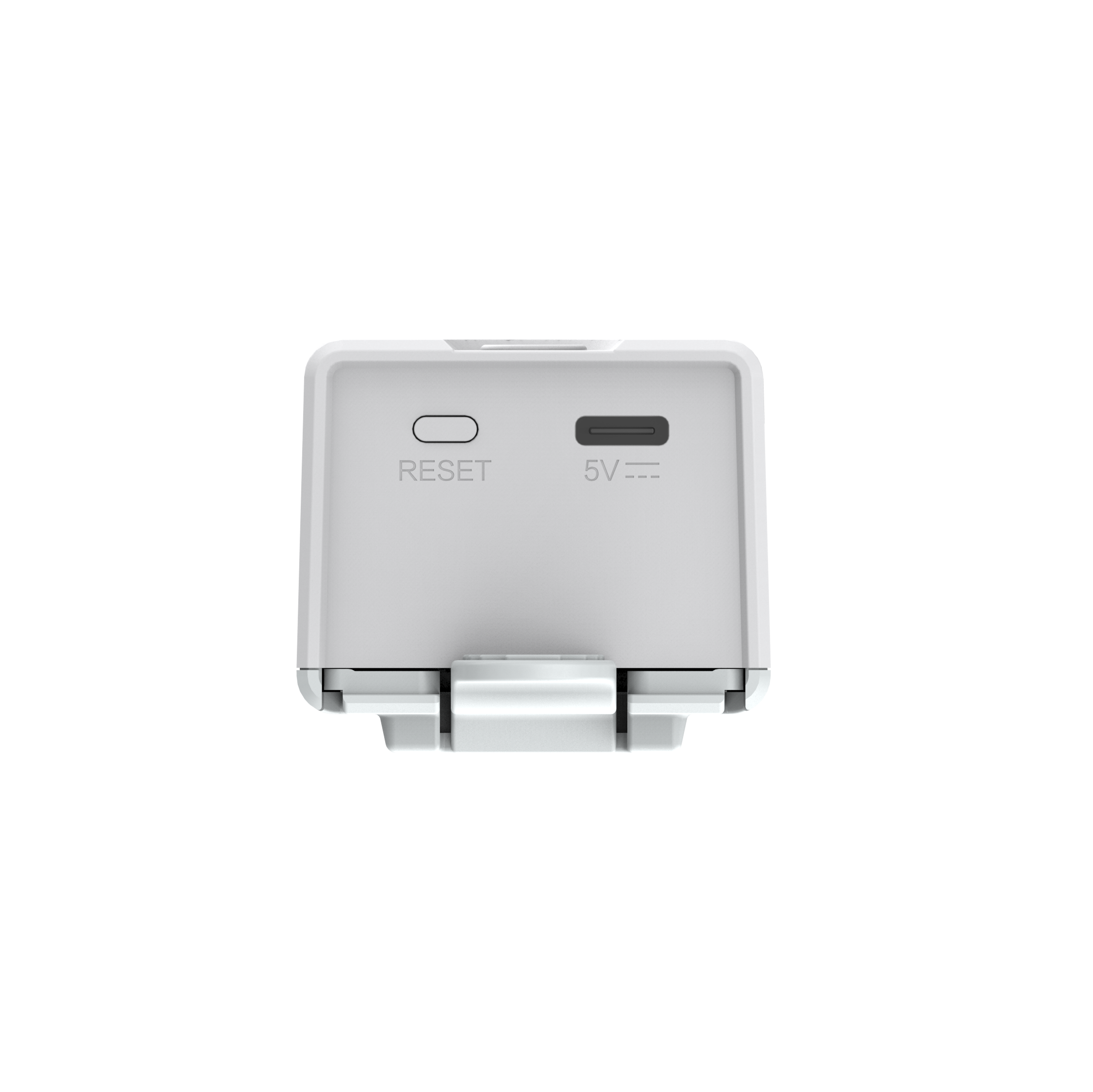

You can choose between two installation modes: wired and wireless. For charging or powering the device constantly, the most modern and versatile Type-C port is used.

User-Defined Open/Closed Positions

The user will be able to pre-set a number of desired open/closed positions and switch between them easily.

All-Round Compatibility

Compatible with the most popular ecosystems and voice assistants: HomeKit, Alexa, Google, IFTTT, Alice, Marusya are supported.

Wide Beaded Cord Support

The majority of roller shades with beaded cords are supported thanks to a variety of included adapters.

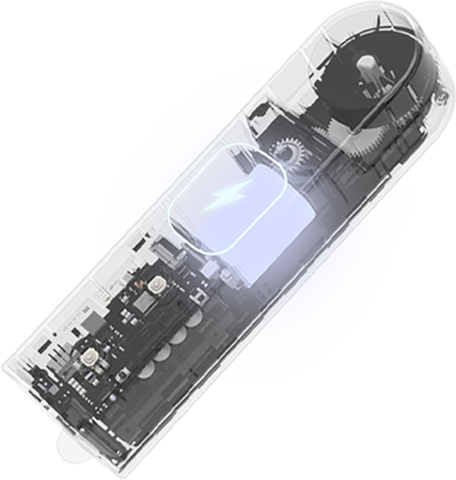

2-Months Battery Life*

Thanks to Aqara's battery-saving technologies, industry-leading battery life is achieved. You don't need to worry about charging the device every few weeks.

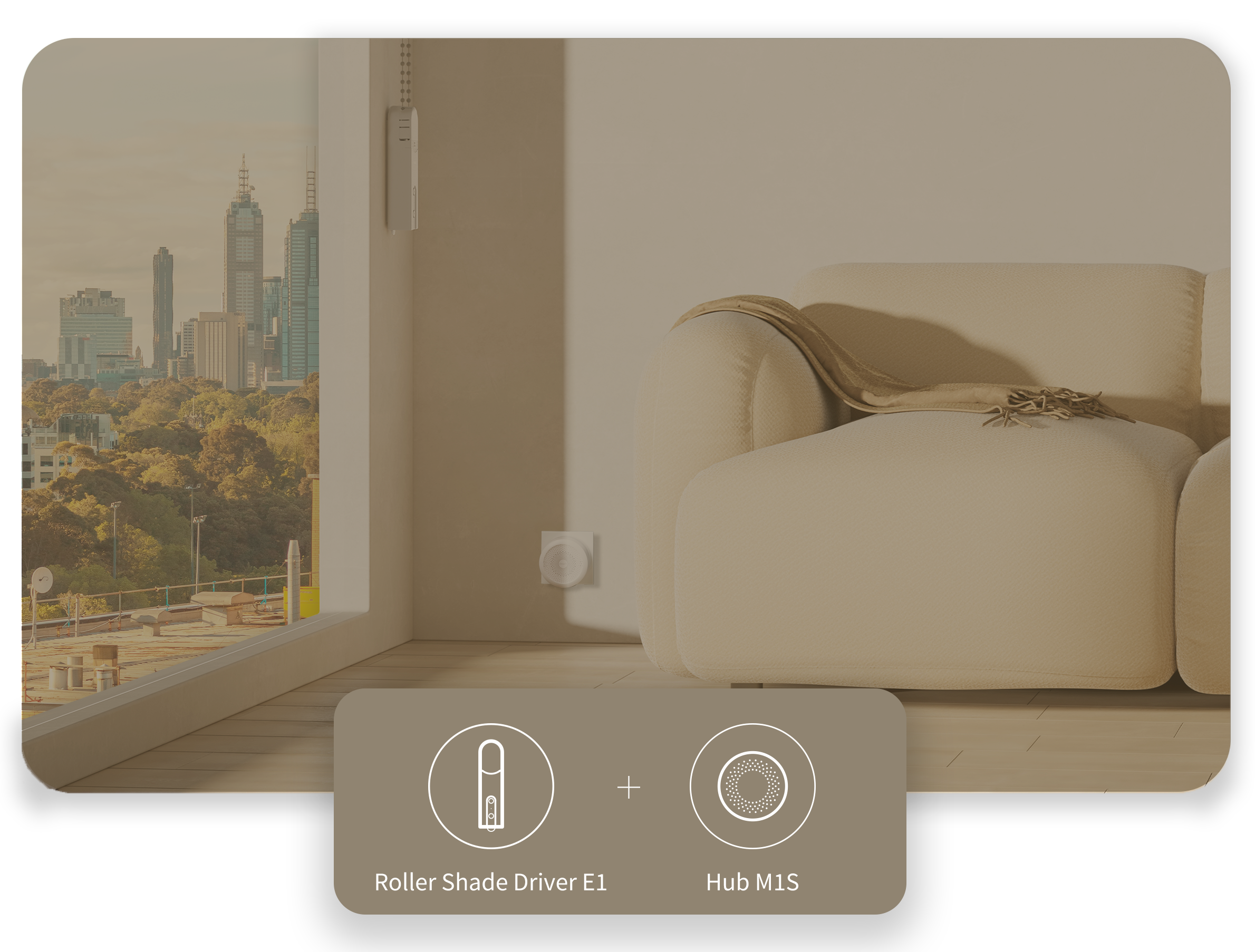

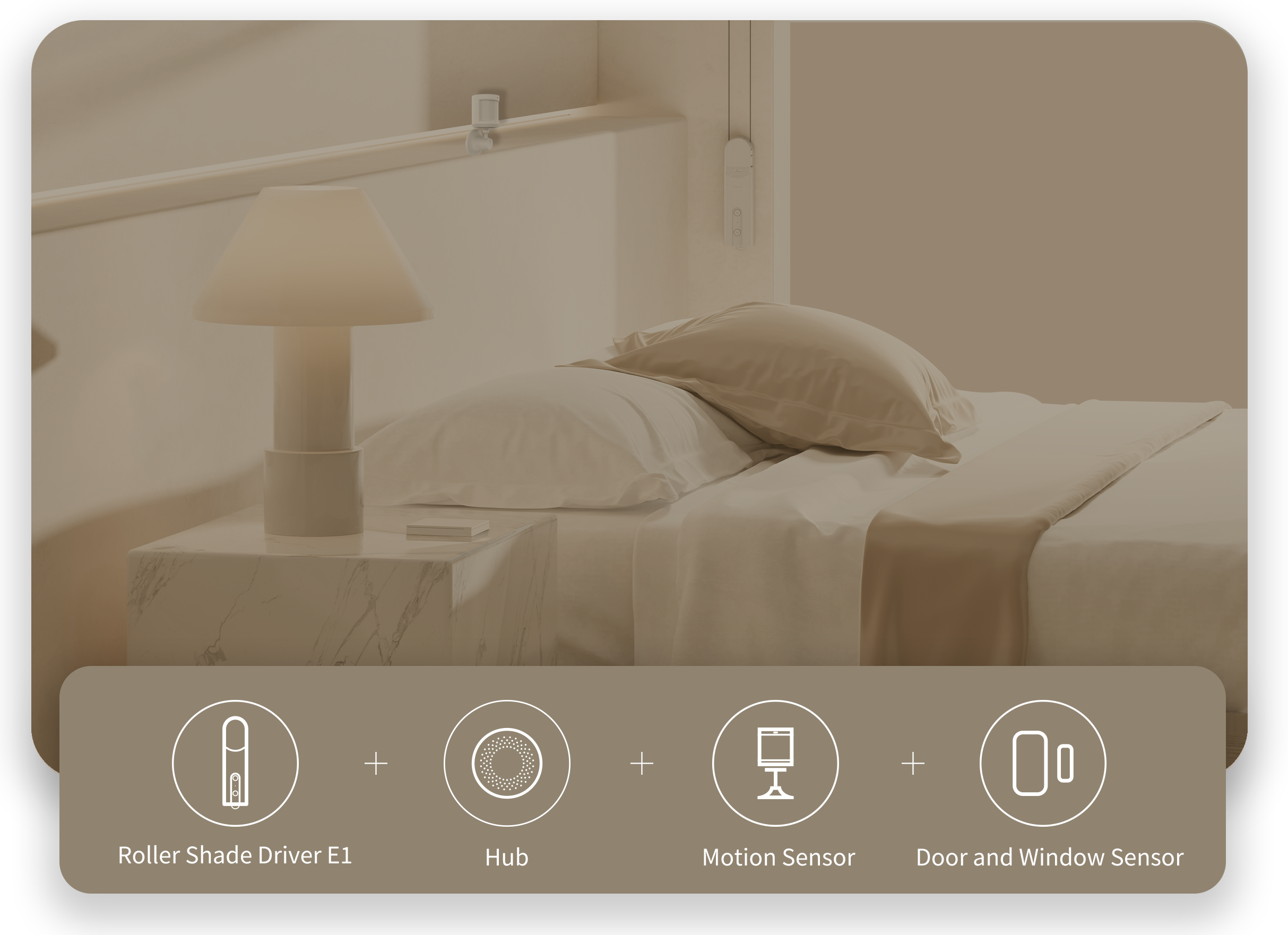

Smart Home Automations

Connect the device to the Aqara Home app, and you will be able to control via a button or even forget about operating the device manually: after configuring the automations, it will just work by itself!

All-Round Compatibility

The Roller Shade Driver E1 is compatible with a wide range of smart home ecosystems and voice assistants.

Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Alice, Marusya are supported.

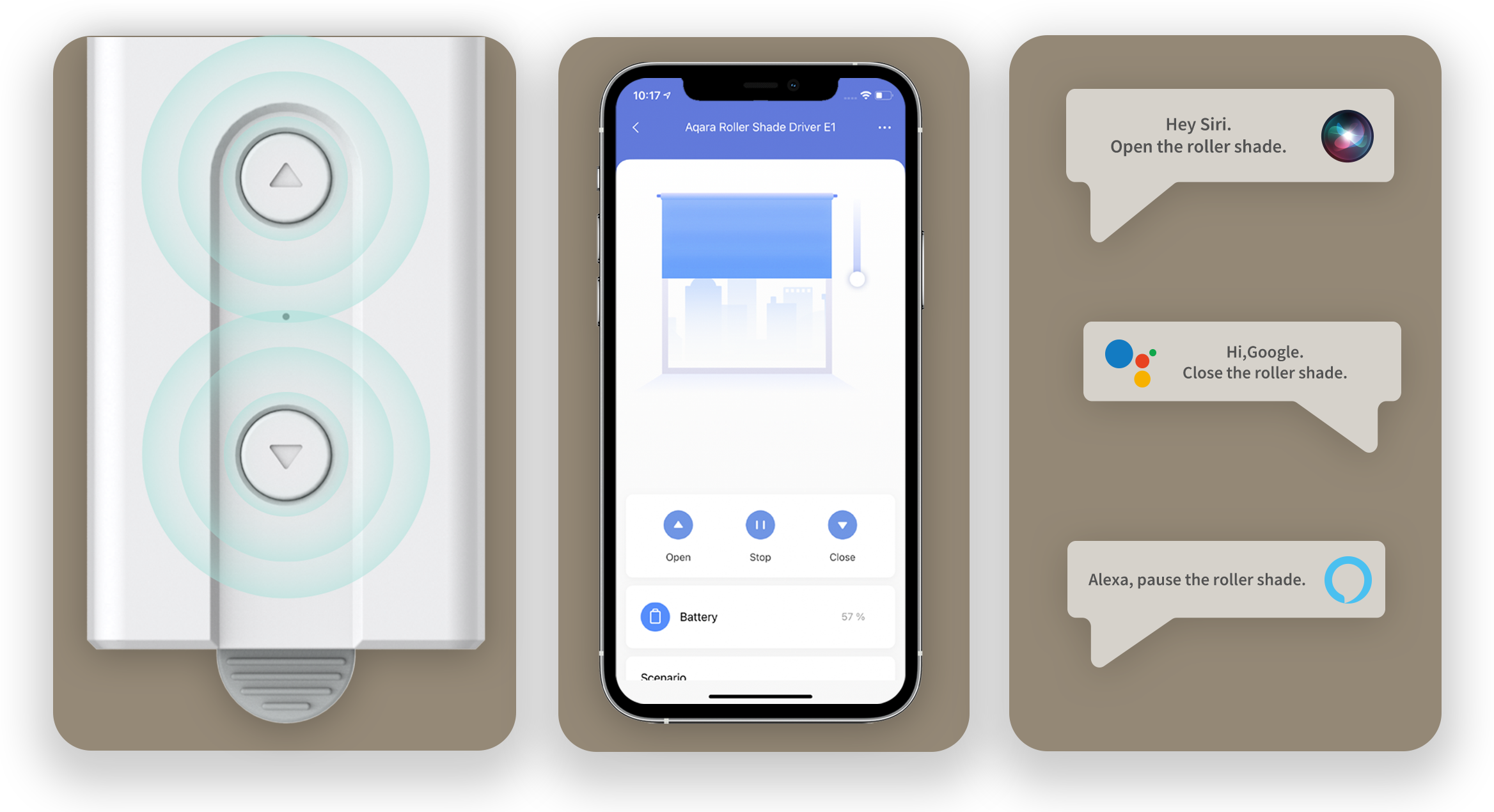

Easily Control with a Button, Mobile or Your Voice

Hands-free setting your roller shades. Implement with simple control using one button, remote control, or voice.

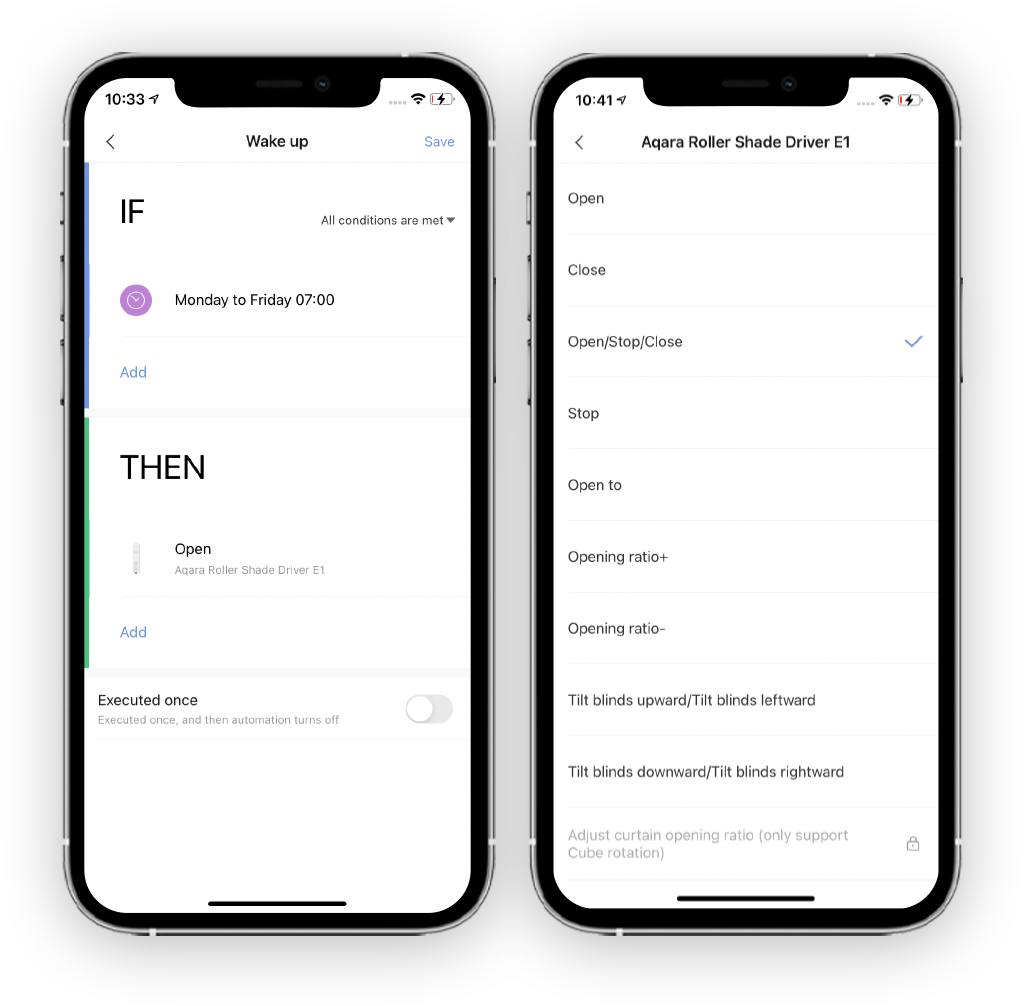

Set a Schedule for Your Daily Routine

Set daily or weekly schedules to automate your shades naturally simplify your life.

7:30 AM Open to 80%

Wake up to the sunshine instead of the alarm clock.

9:00 AM Open to 10%

Avoid your home being damaged by UV rays.

7:00 PM Open to 100%

Enjoy the view outside the window when you come home.

11:00 PM Close

Have a peaceful sleep all through the night.

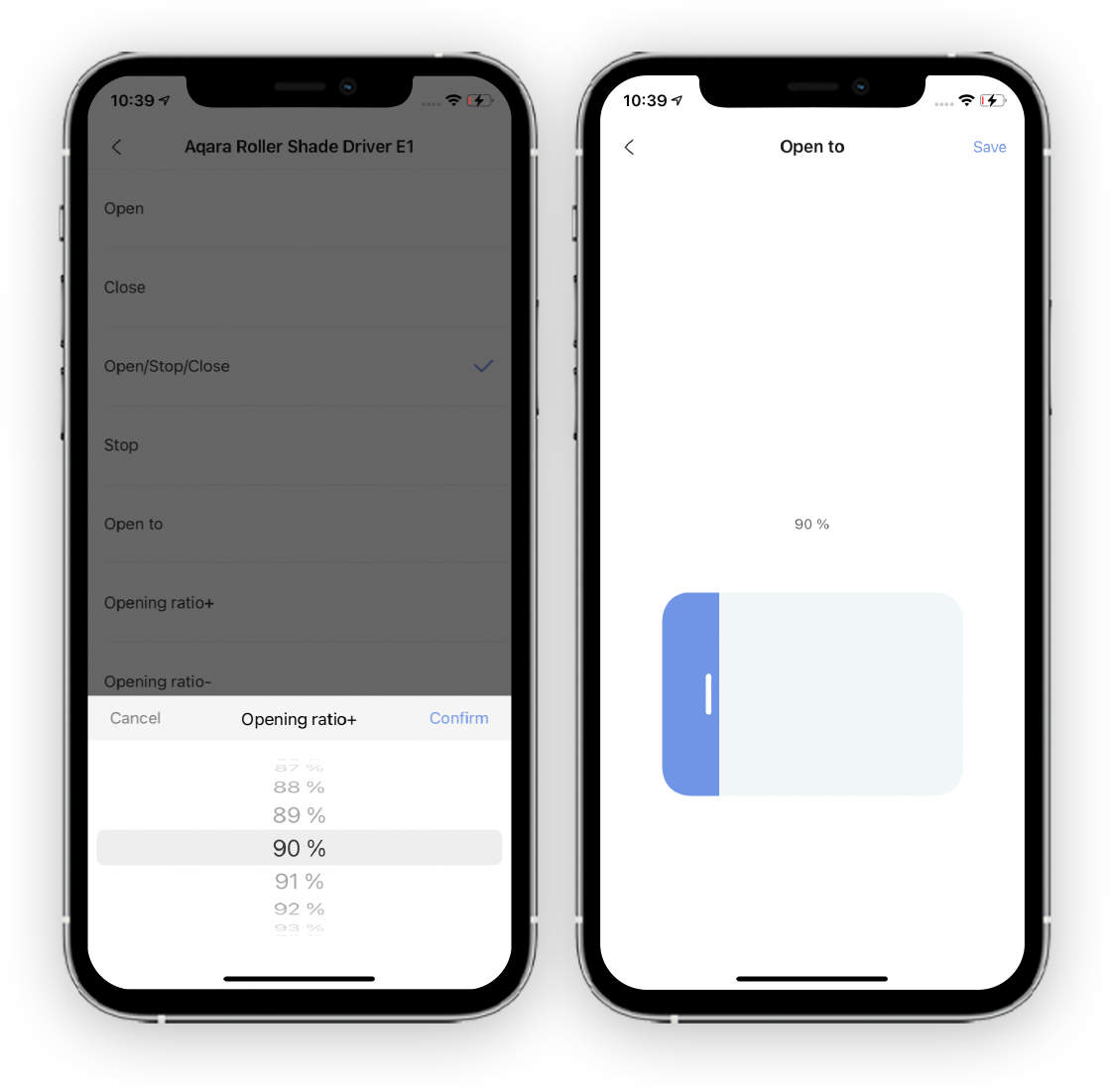

Adjustable Open/Closed
Positions as Your Please

You can raise and lower your shades to the level you set. Use your app to control it anytime and anywhere.

Easy Installation & Wide Compatibility

3-step installation

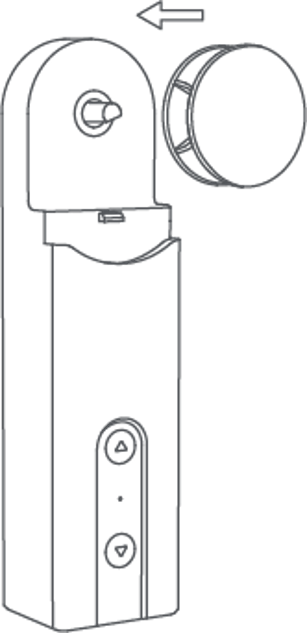

Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device is ready to be connected.

Wired or Wireless
Power Supply

You can choose between a chargeable battery that lasts up to 2 months or powering the device via the provided USB Type-C cable.

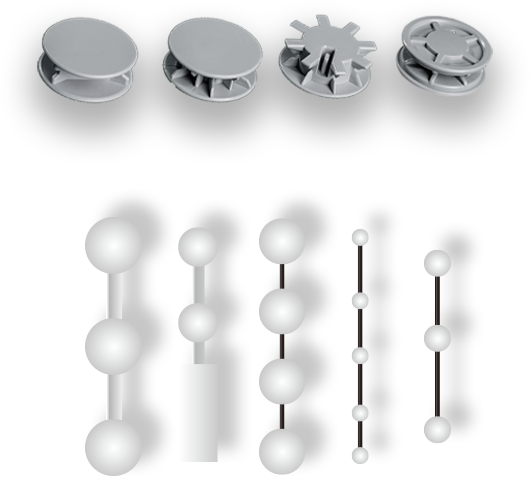

4 Adapters for Different
Types of Beaded Cords

4 adapters included make it compatible with beaded chains with a thickness of 3-6 mm and the majority of cords.

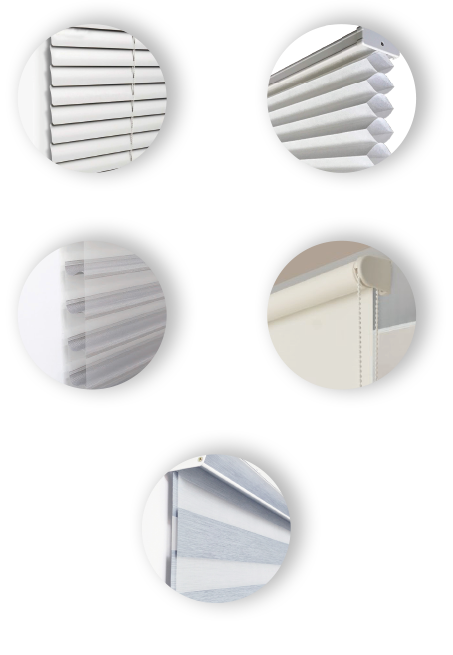

Compatible with most
Roll-type Blinds

The Aqara Roller Shade Driver E1 is designed to be compatible with most roll-type blinds in different shapes and sizes.

Specification

Beads with a diameter of
3 - 4.5 mm

Beads with a diameter of
4.5 - 6 mm

Product Specification

Model	RSD-M01
Wireless Protocol	Zigbee 3.0
Dimension	43×38.5×175 mm
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity	0-95% RH, no condensation
Battery	Lithium battery (rechargeable)
Input Power	5V 1A
Total Power Consumption	5W
Color	White
Standby Time	Up to two months (supposed to control a roller shade of 1.8m*1.8m up and down once a day)
