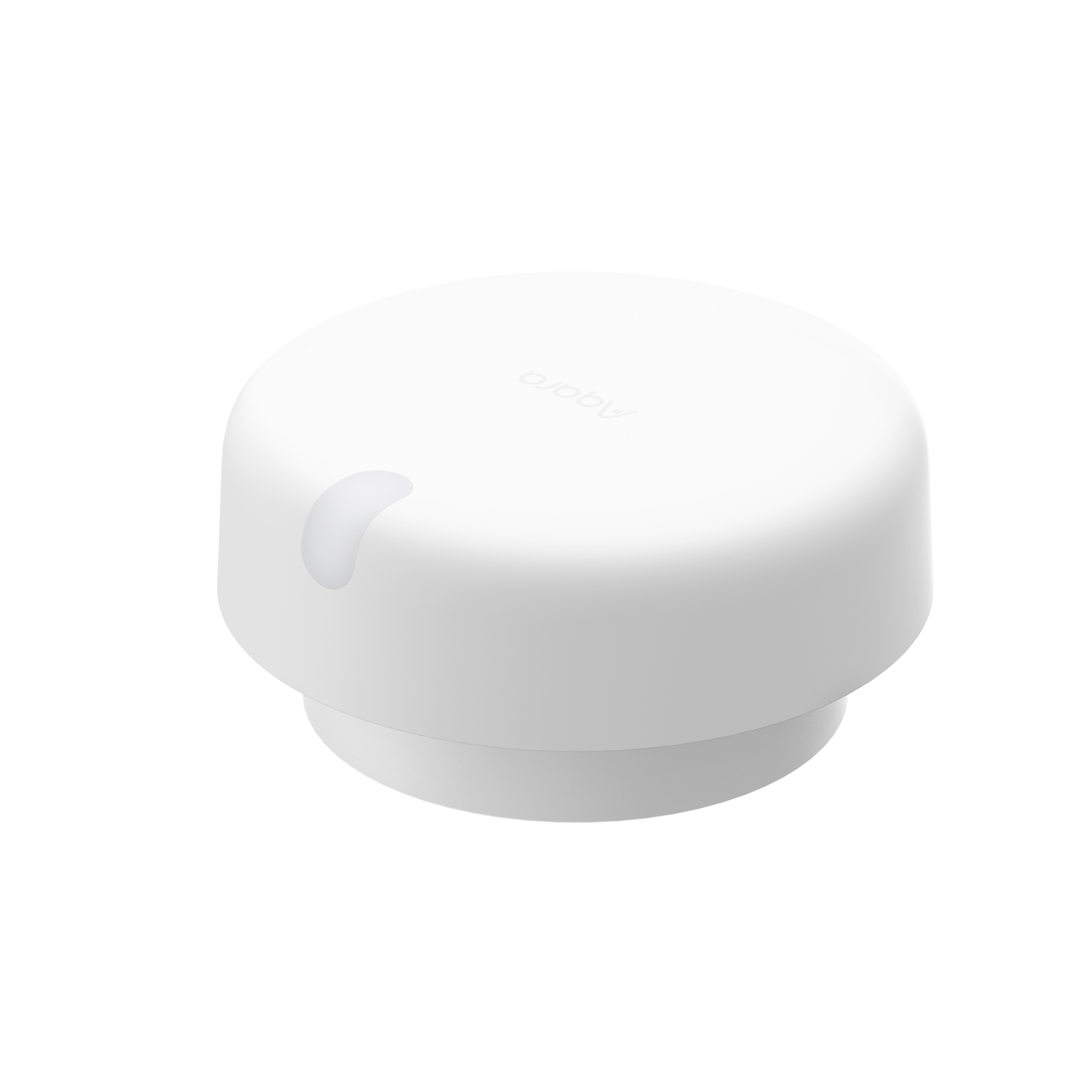

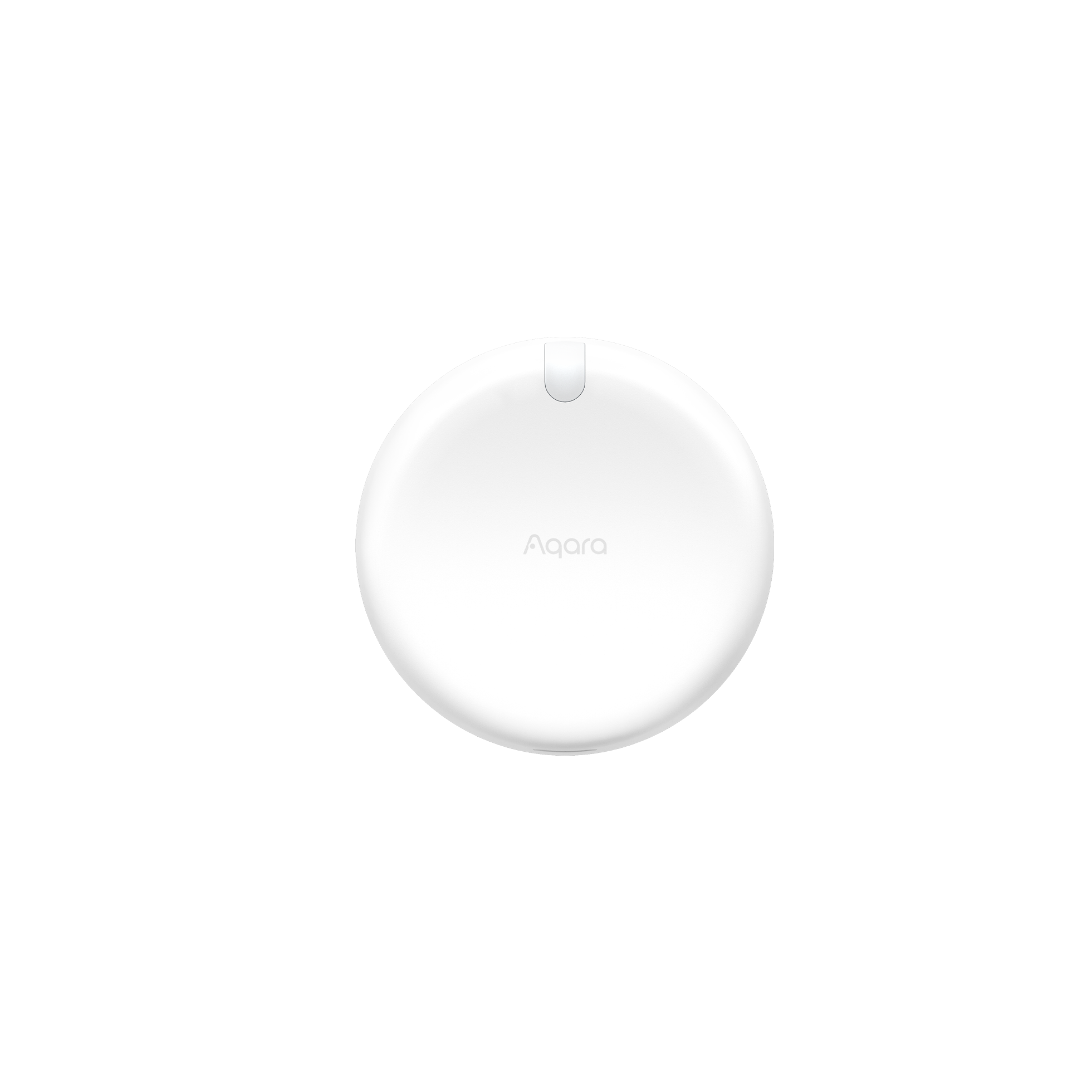

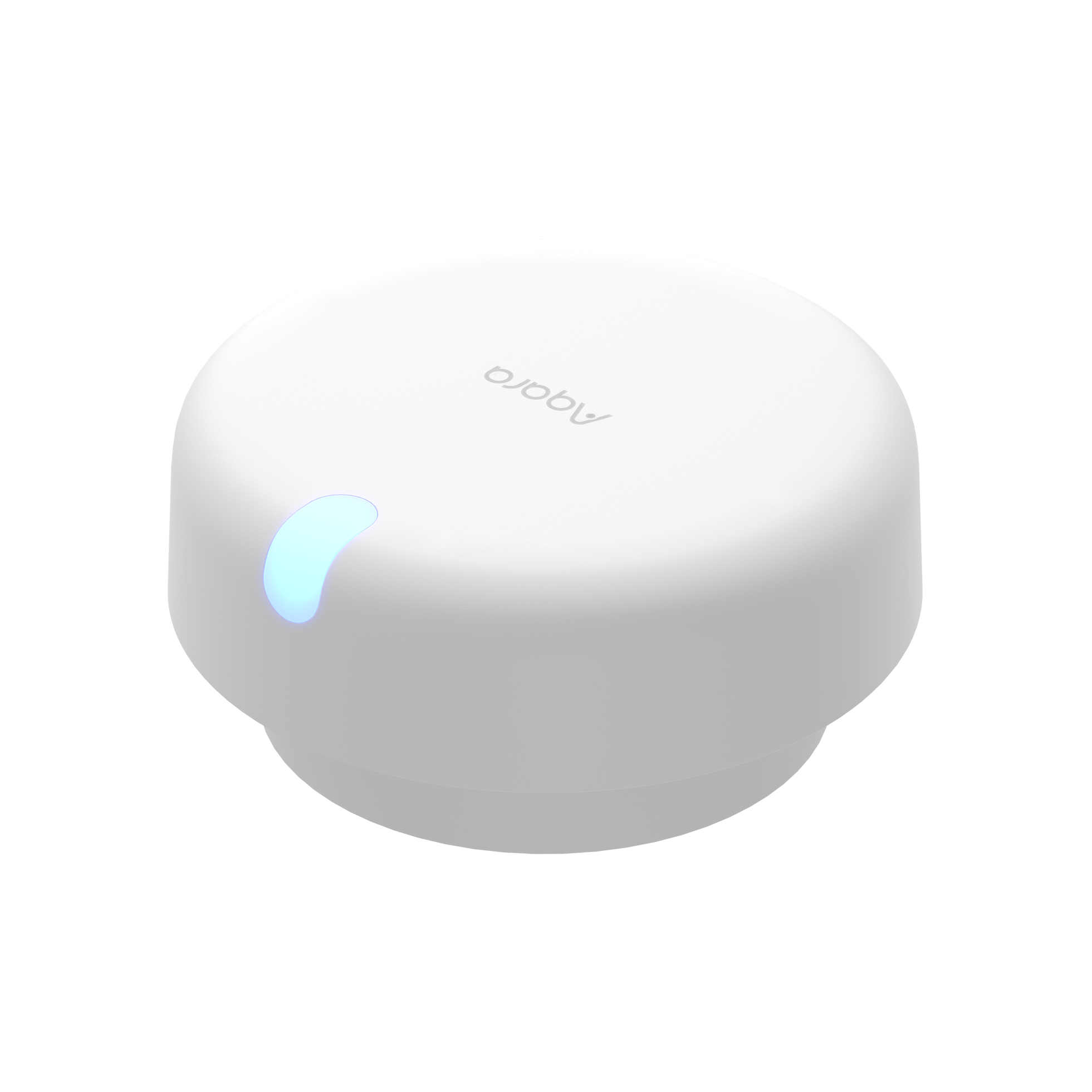

Aqara Presence Sensor FP2

$159.00

Overview

  • Protocol: Wi-Fi (2.4GHz)
  • Maximum Range of Wi-Fi to the Router: up to 10 ~ 15 meters
  • Requires Aqara Hub: No
  • Colour: White
  • Power: DC 5V 1A, USB-C port
  • Dimension: 64 × 64 × 29.5 mm
  • Weight: 170g
  • Protection Rating: IPX5 (water-resistant)
  • Precise tracking of the movement and presence of several people in a space (up to 40sqm) and divide up to 30 separate zones (such as sofa, bed, desktop, etc).

Warranty:

Compare
Add to wishlist
SKU: PS-S02D Category:

Key Highlights

The Aqara Presence Sensor FP2 utilizes advanced millimeter-wave radar technology to precisely detect human presence, even with the slightest movements. Its innovative zone positioning feature allows you to automate different actions in specific areas, such as beds or tables, within a single space. The FP2 can divide a room into up to 30 small zones and detect up to five individuals simultaneously (Multi-person Detection).

The sensor is equipped with AI features like human fall detection and a built-in light sensor, making it an indispensable tool for enhancing the automation of your home, tailored to fit the unique needs of every user.

Presence Sensor FP2

Reinvent your space.

Zone Positioning

By using only one radar sensor, you will be able to monitor a room of up to 40 m² (ca. 430 sq ft) and divide them into various zones. Presence at each configured zones can trigger different automations.

Multi-Person Detection

The FP2 radar sensor has the ability to detect up to 5 people* at the same time, making it a useful tool for households with multiple occupants.

Ultra-High Precision

Radar sensors possess a high level of precision, allowing them to detect even the slightest movements without producing false positives.

Multi-Ecosystem Support

The FP2 is exposed as multiple sensors within third-party ecosystems, including HomeKit (and Home Assistant), Amazon Alexa, Google Home and Alice.

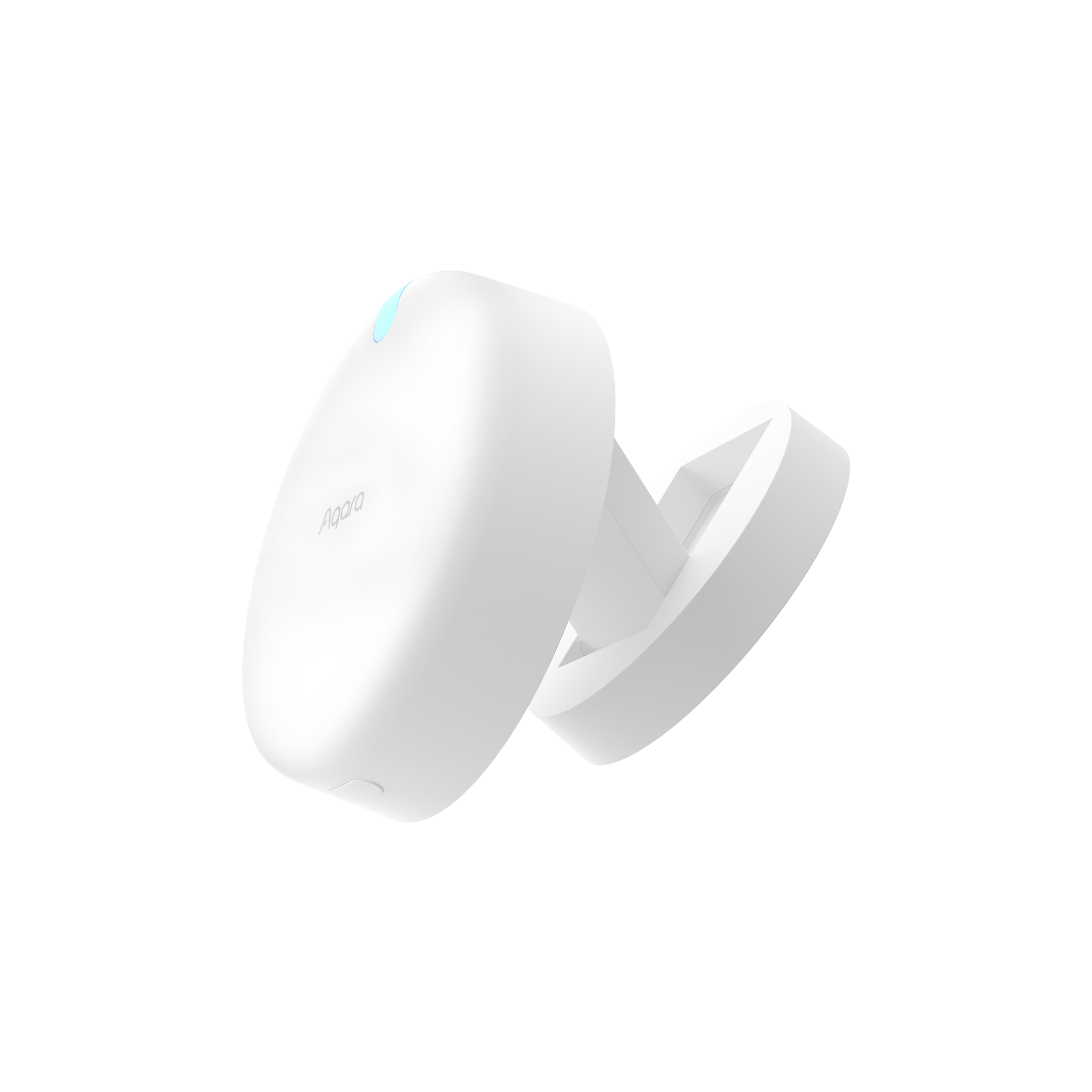

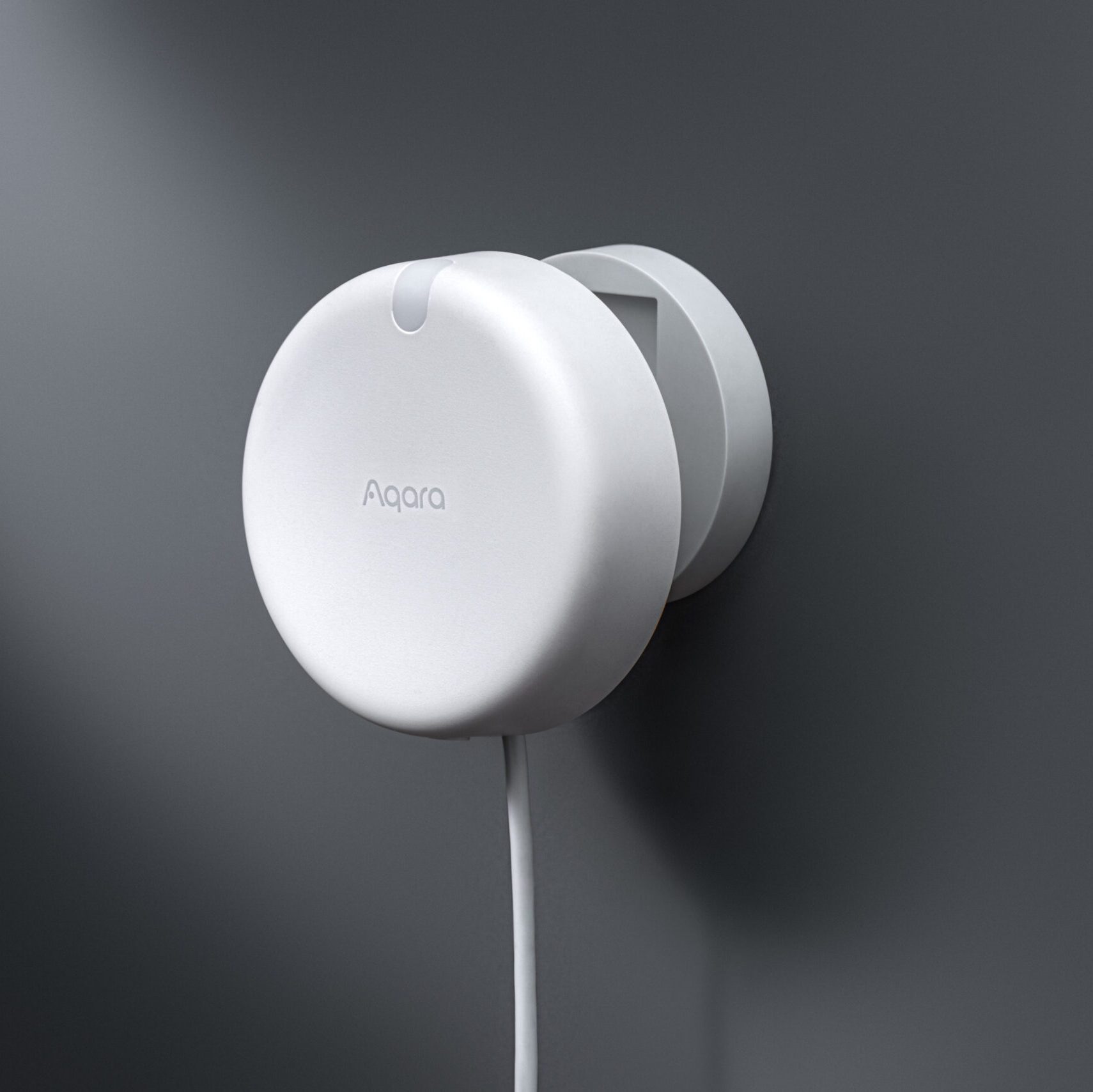

Flexible Placement

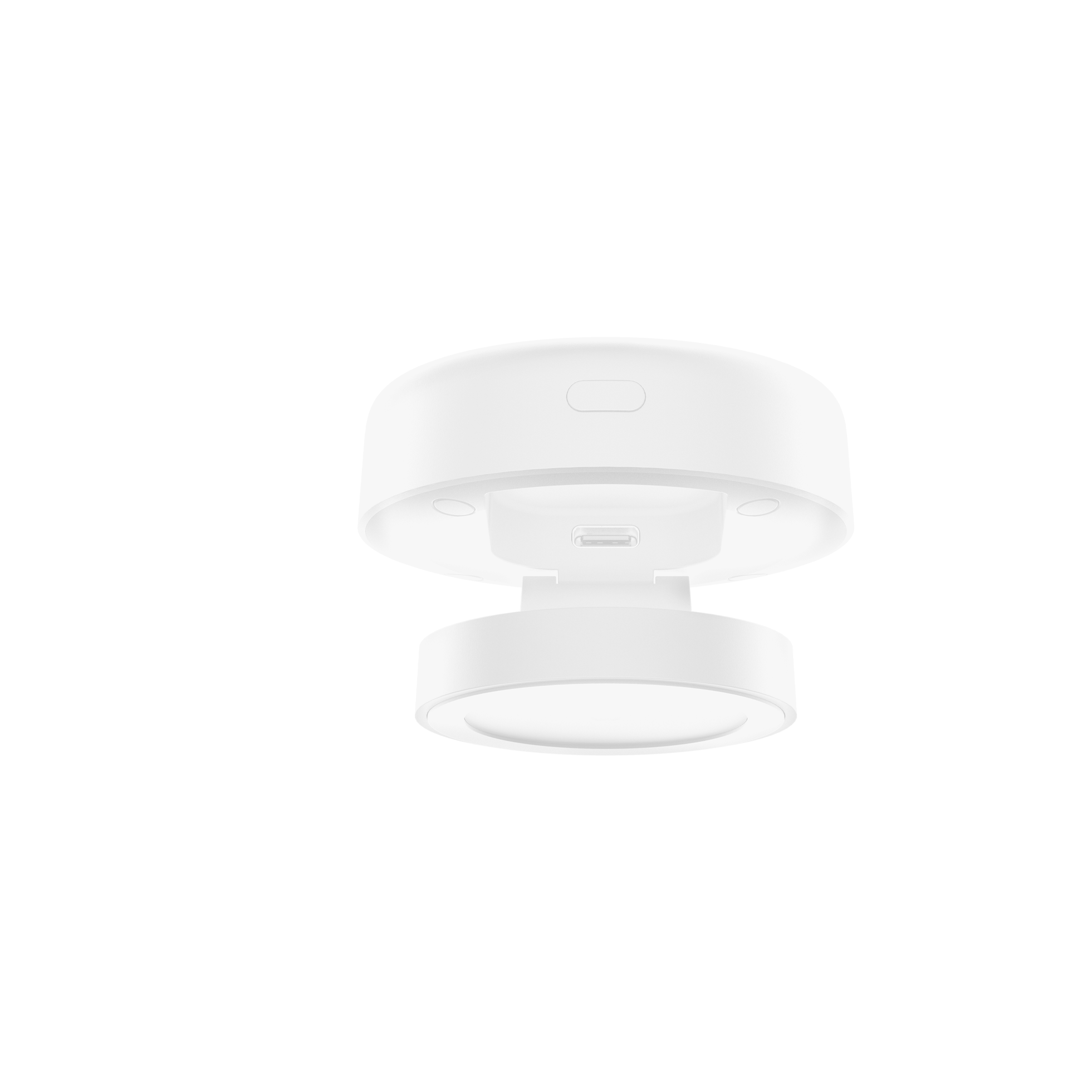

A recessed USB-C port and magnetic adjustable stand increases the flexibility of placement. Ceiling and vertical attachment are both supported.

Built-In Light Sensor

The FP2 has an extra built-in additional light sensor, which provides greater flexibility and enjoyment when creating lighting automations.

Local Automations

Automations of FP2 are executed without sending to the cloud, and they will keep working even in case of no internet connection.

Fall Detection and Alerts**

The FP2 has the capability to detect and alert you when a family member falls down, which is not required for camera monitoring.

* The best result can be achieved in case of tracking not more than 3 persons ** Ceiling placement is required for fall detection

Positioning By Zones, Stay Connected to Your Home

Zone positioning offers significant advantages over traditional PIR sensors by monitoring rooms of up to 40㎡ (ca. 430 sq ft), and dividing them into up to 30 zones. It is suitable for a practically endless variety of use cases based on the actual presence in each of such zones. Additionally, using just two conditions of "Presence" and "Absence" will make the automation configuration simpler than ever before.

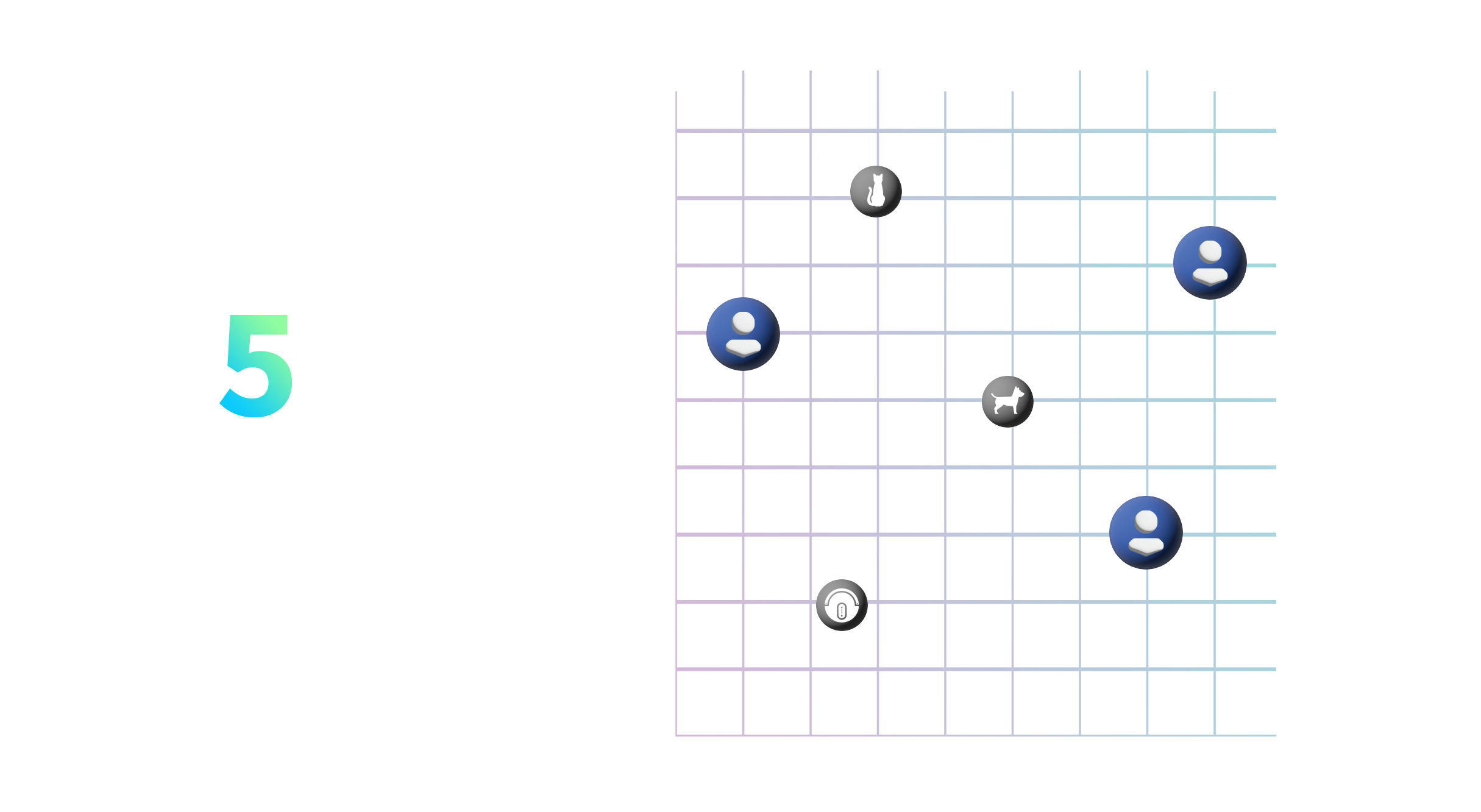

The FP2 detects up to 5 people simultaneously, perfect for multi-occupant homes, enabling automation and energy management based on room presence. With AI Person Detection, it filters out interferences like robot vacuums, pets, and moving toys, ensuring reliable detection for a convenient experience.

* The best result can be achieved in case of tracking not more than 3 persons

** Wall-mounting installation is required for zone positioning and multi-person detection

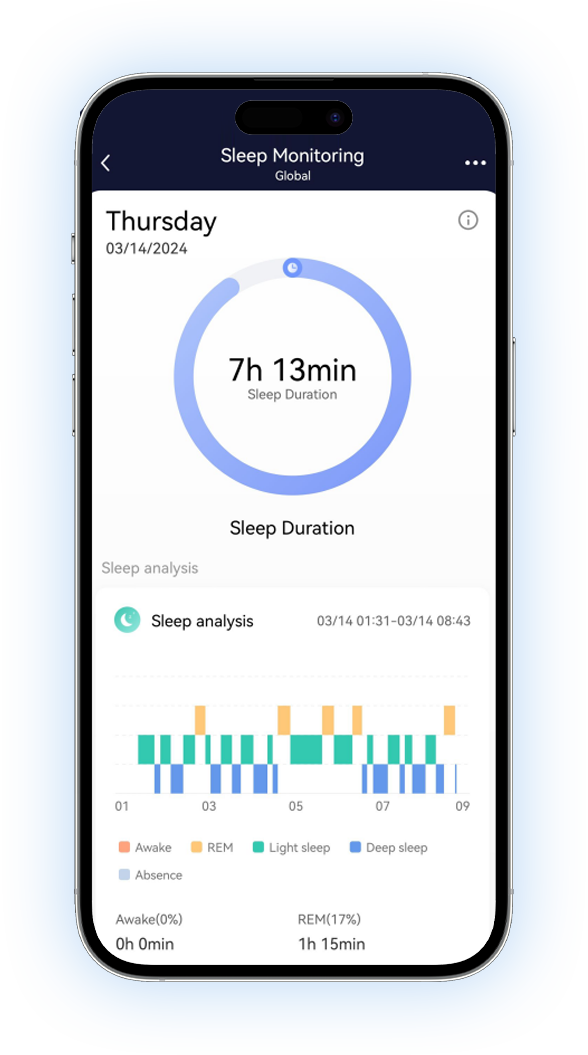

AI Sleep Monitoring

The FP2 offers independent sleep monitoring capabilities without the need for wearables. It provides real-time tracking of heart and respiratory rates, along with historical reports for deeper insights into sleep quality. Additionally, Aqara Home automation features enable convenient actions such as automatically turning off lights when going to bed or activating night lights upon getting out of bed at night.

*Sleep monitoring can only support one person who is sleeping alone.

**Heart and breathing rate tracking is not currently exposed to third-party ecosystems

Captures Slightest Movements with Maximum Privacy

By implementing millimeter-wave radar technology, the FP2 provides a precise presence detection without producing false negatives, even for the slightest movements. On top of that, it is wearable-free and does not require a camera monitoring system, which ensures maximum privacy for users.

* Please note: the FP2 is a wired sensor that should be constantly powered

Multi-Ecosystem Support for Endless Possibilities

The FP2 is exposed as multiple sensors in HomeKit (and Home Assistant)*, Amazon Alexa, Google Home and Alice. You are able to integrate the sensor easily with no Aqara hub required, which is a good solution for smart home enthusiasts to expand your smart home setup.

You can mount the FP2 on the ceiling and activate the Falling Detection mode. The FP2 will detect and alert you through the app as soon as someone falls, which will minimize the risk of injury for your family's healthier lives.

* Ceiling-mounting is required for fall detection ** In fall detection mode, most features of the FP2 including zone positioning and presence detection become unavailable *** The FP2 Presence Sensor is not a medical device, and can only be used for notification purposes

1>N, Why Is It So Revolutionary?

The mmWave radar technology is the next big thing in smart home sensing! You will not need several sensors to detect different areas within a room, and careful configuration and long-term management of each sensor. With FP2, you will get multiple infrared (PIR) sensors and even one extra light sensor.

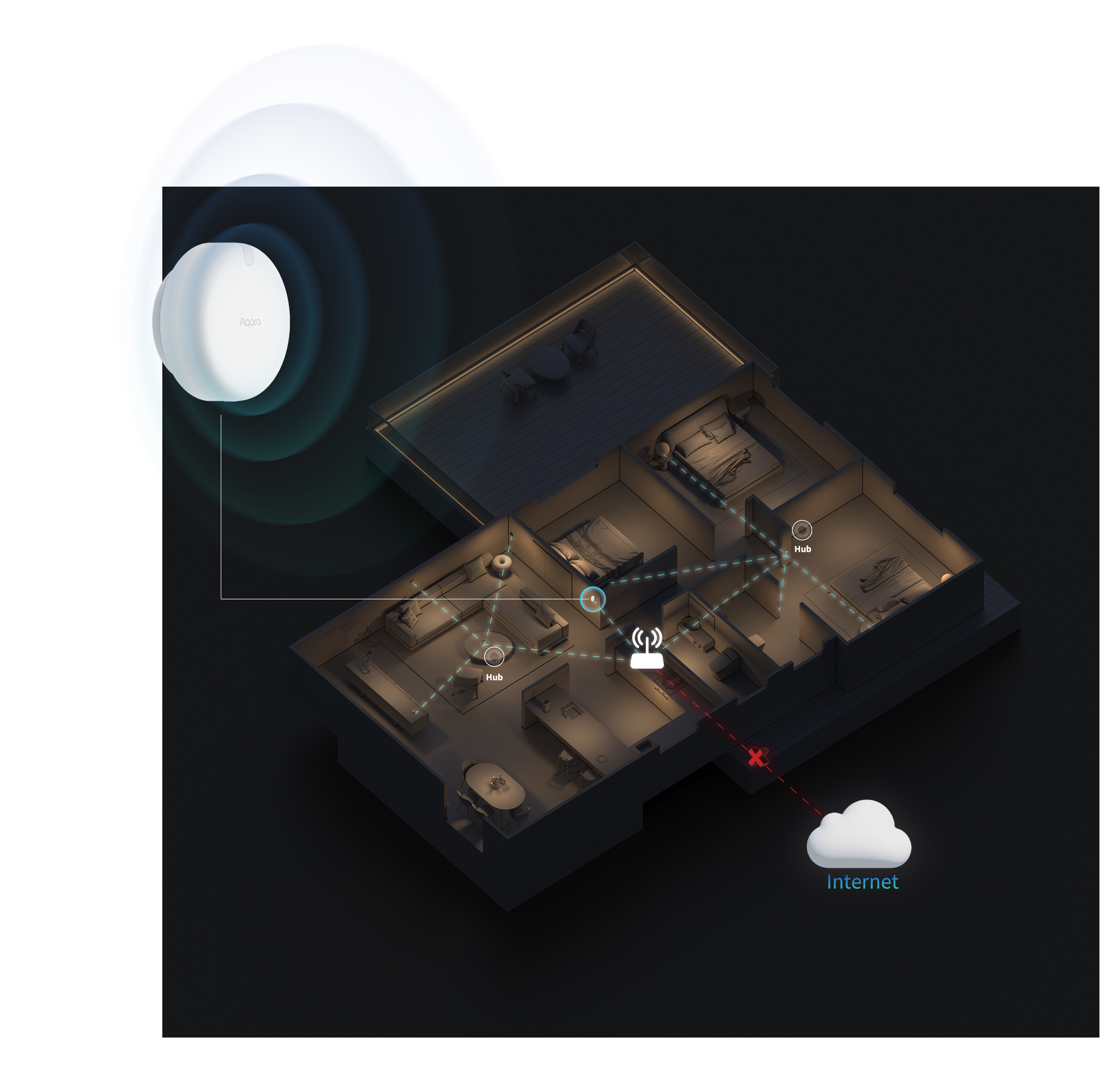

Local Automations

Wi-Fi doesn't mean being dependent on the cloud. The FP2 can easily execute automations locally, ensuring uninterrupted operation even without an internet connection.*

* Local automations are only available with other Aqara or Apple Home-compatible devices

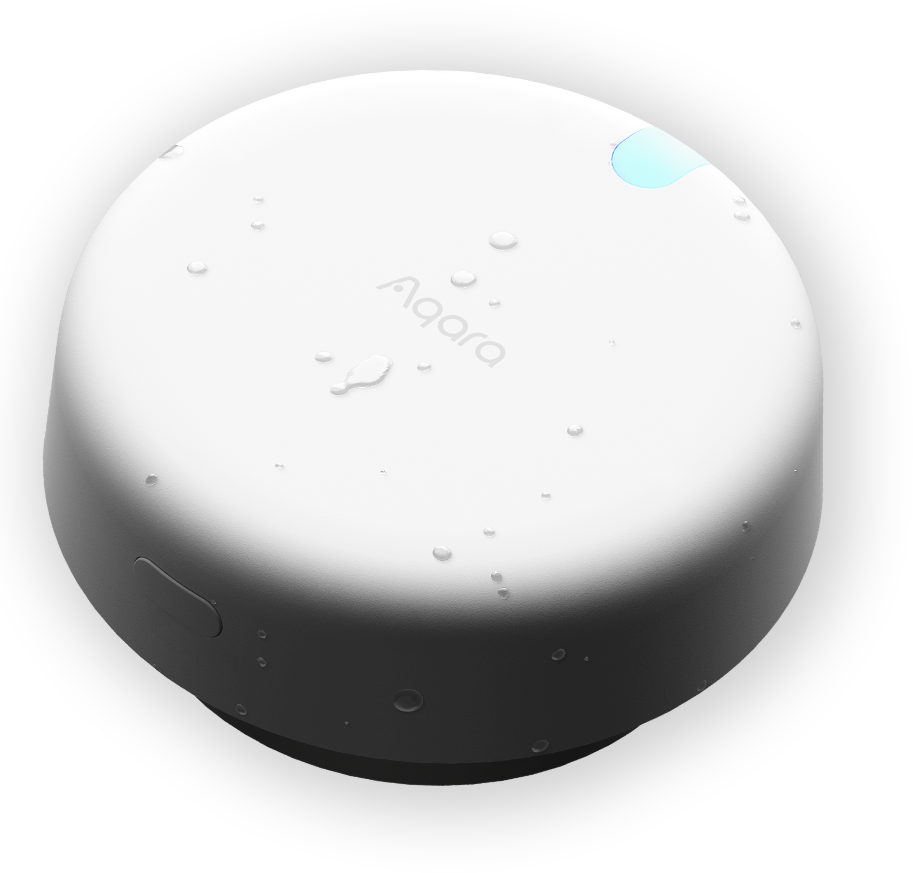

IPX5-rated

Thanks to its IP rating, the sensor can also be installed in humid environments such as bathrooms and even outdoors under a roof.*

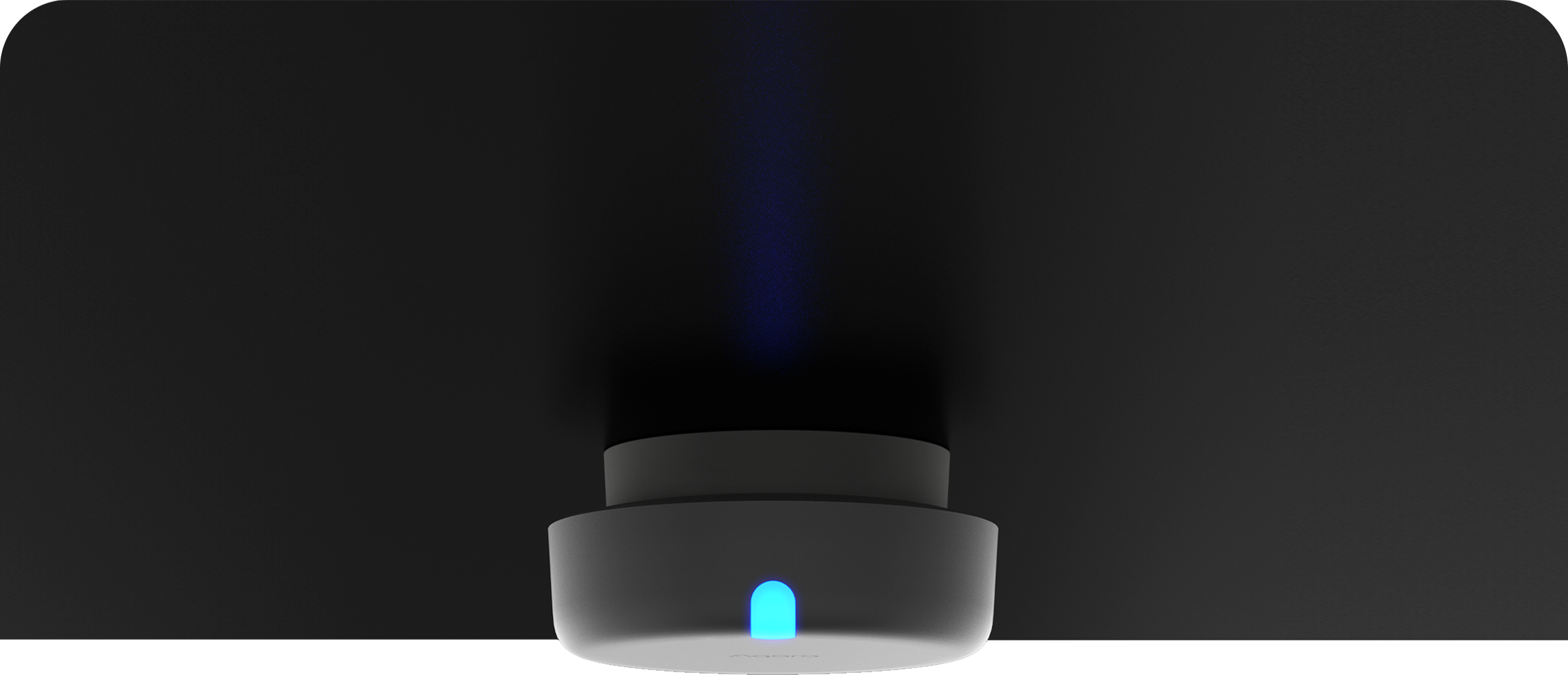

Built-in Light Sensor

Additionally, the built-in light sensor , that is also exposed to third-party ecosystems allows for more flexible and enjoyable lighting automations, as well as advanced home automation based on illuminance levels.

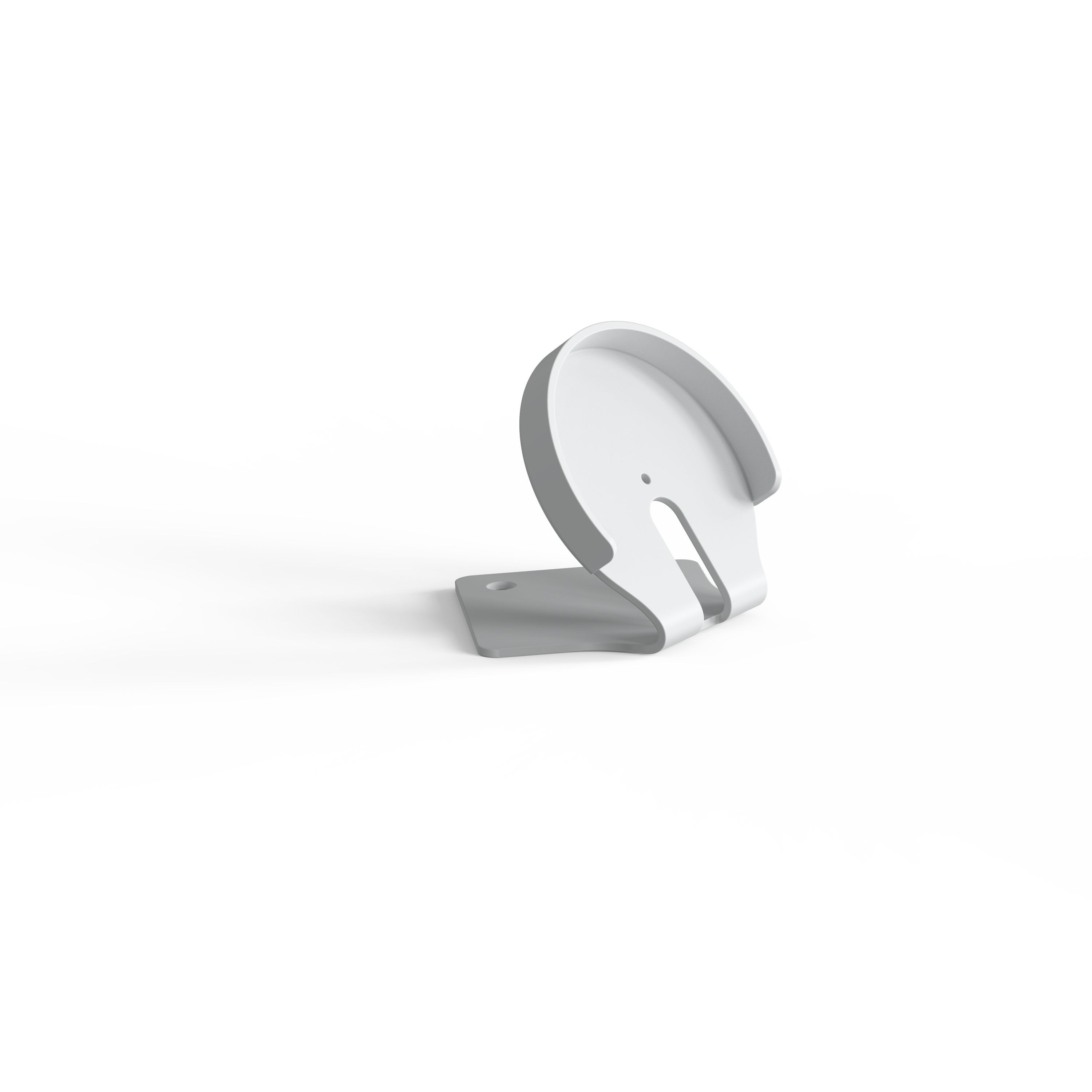

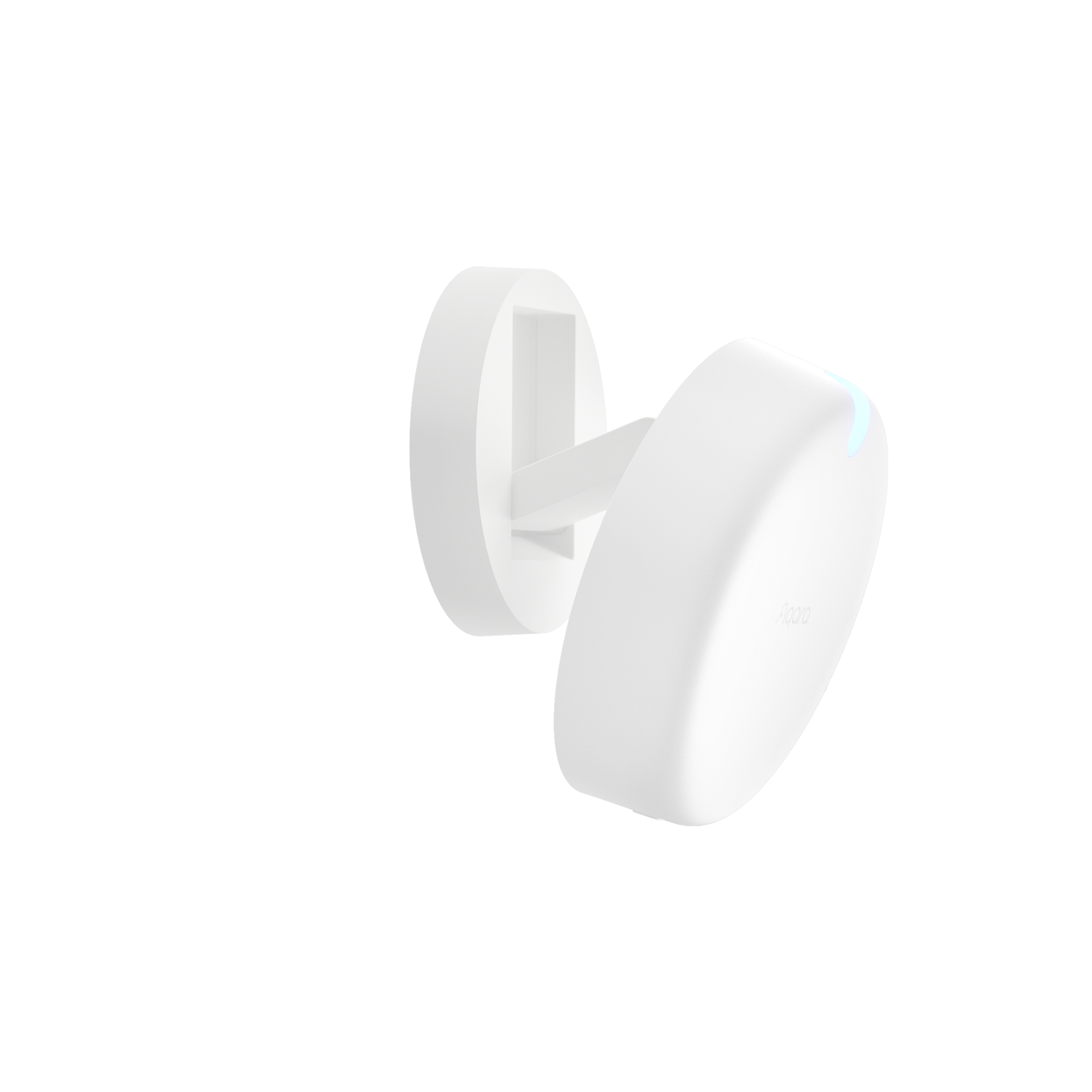

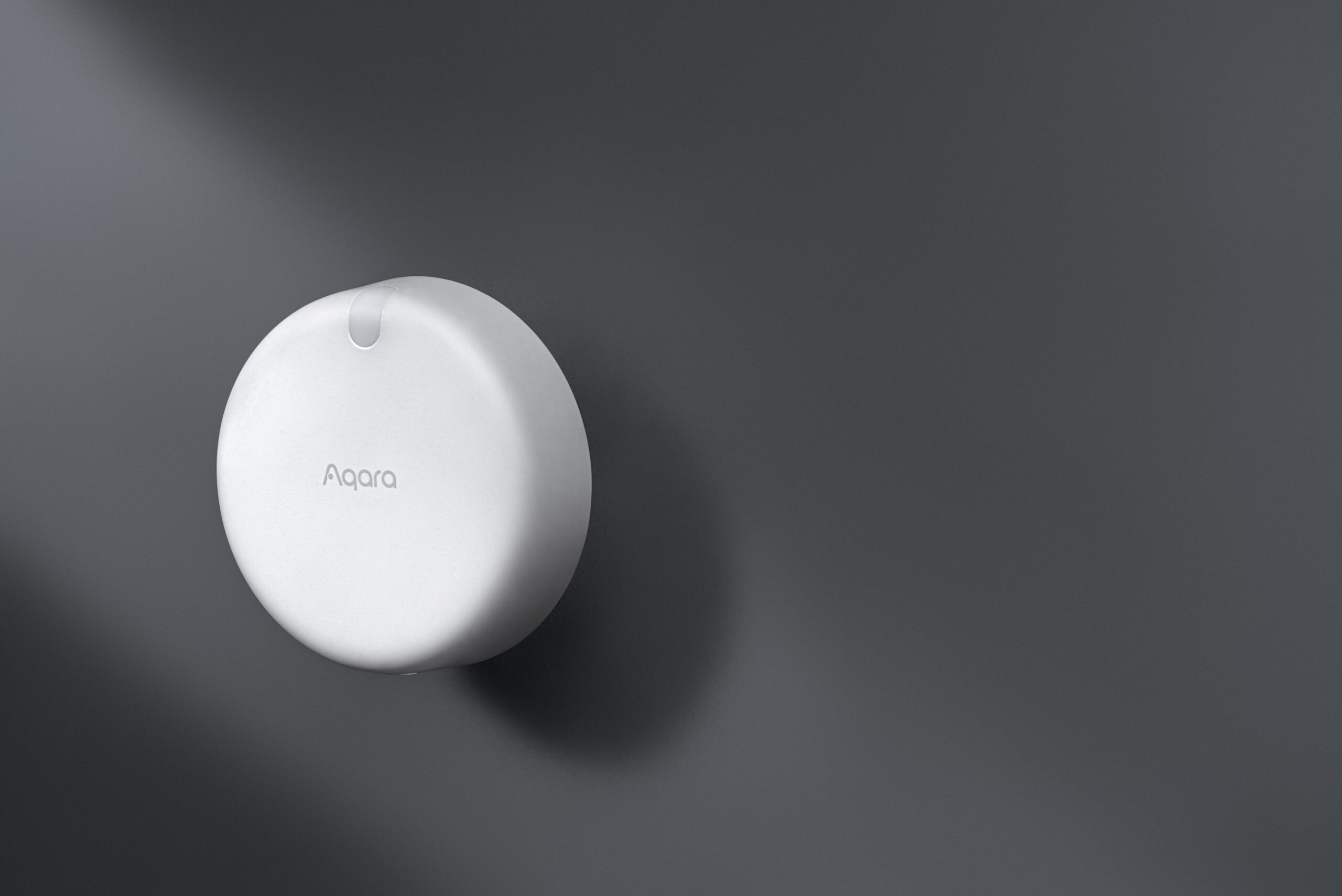

Flexible Installation

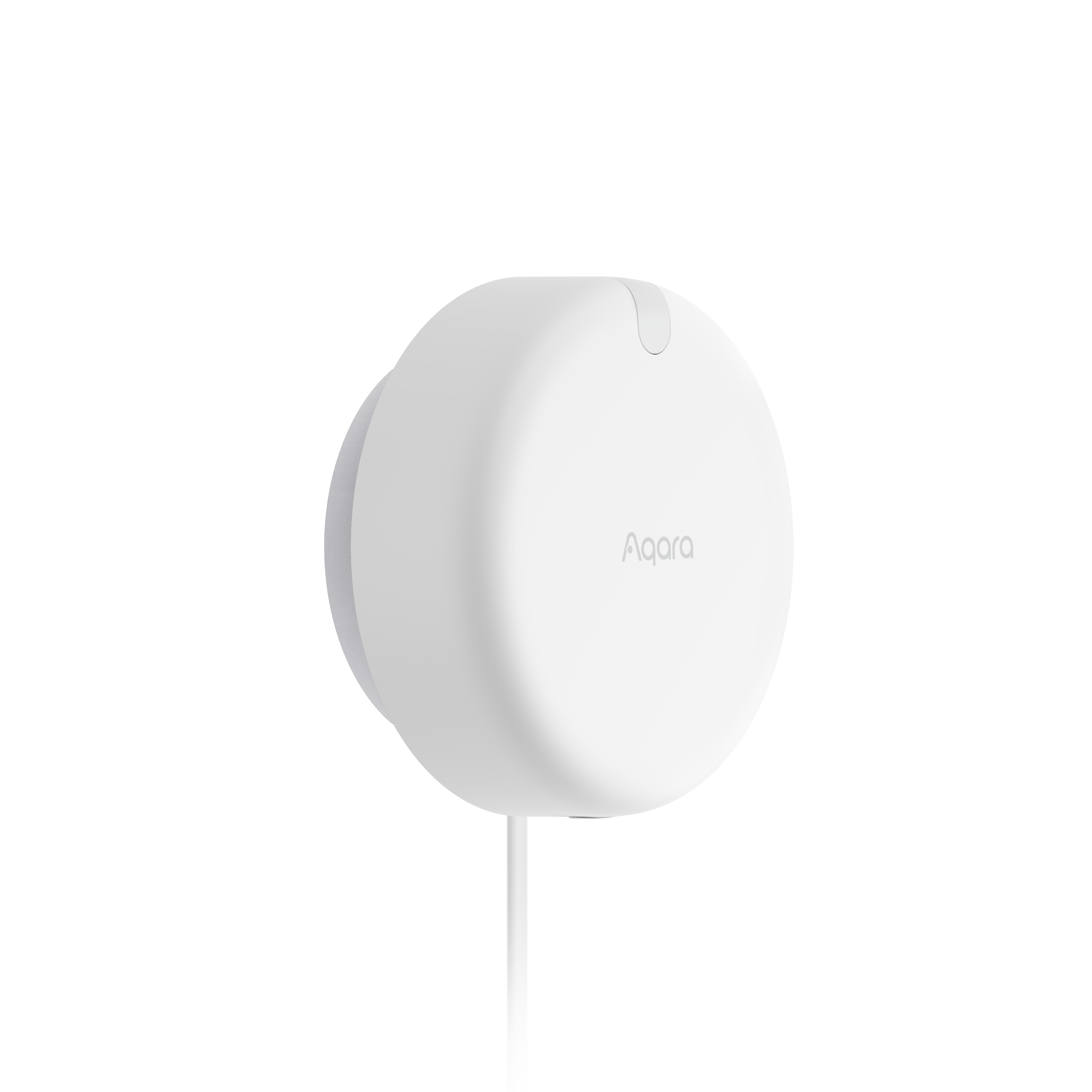

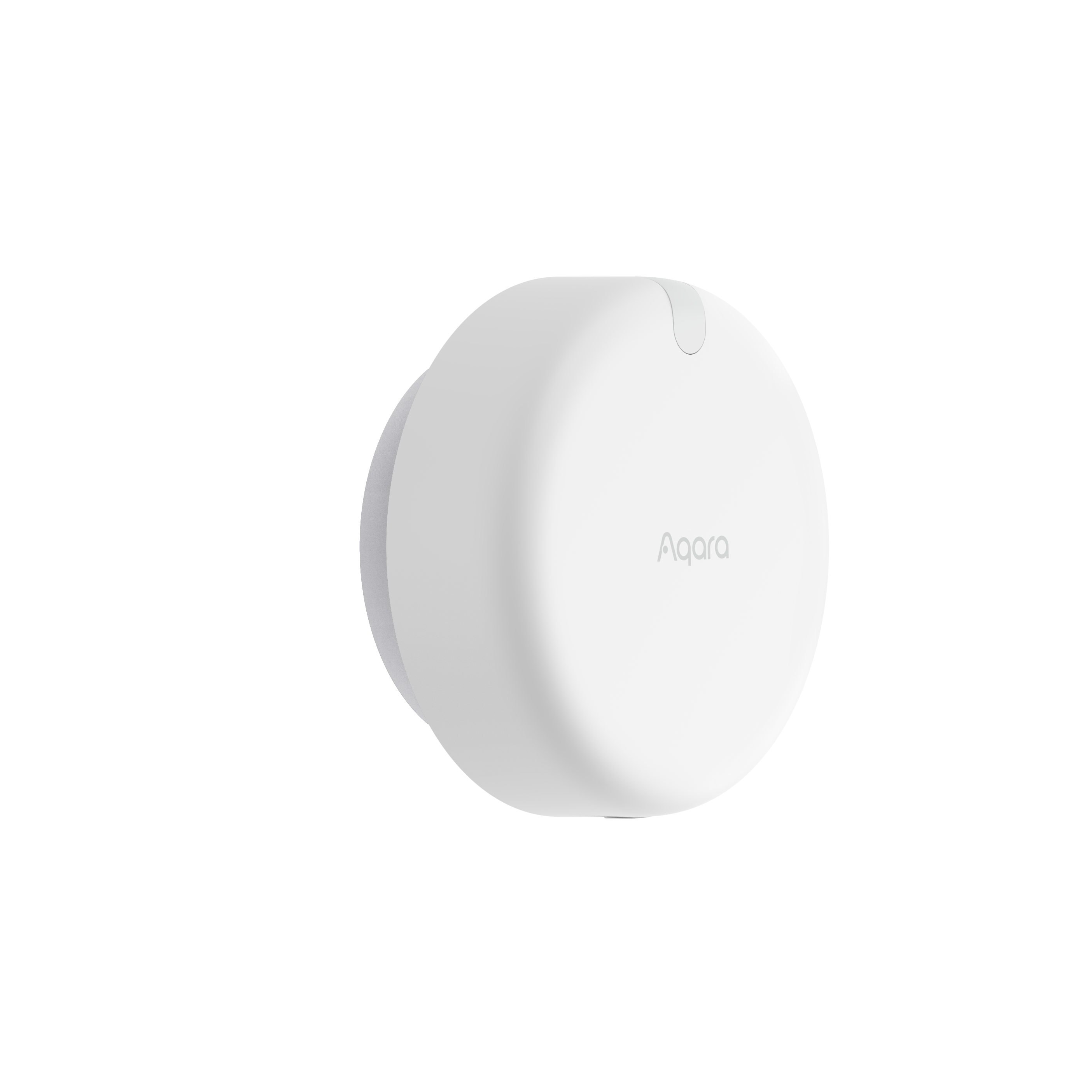

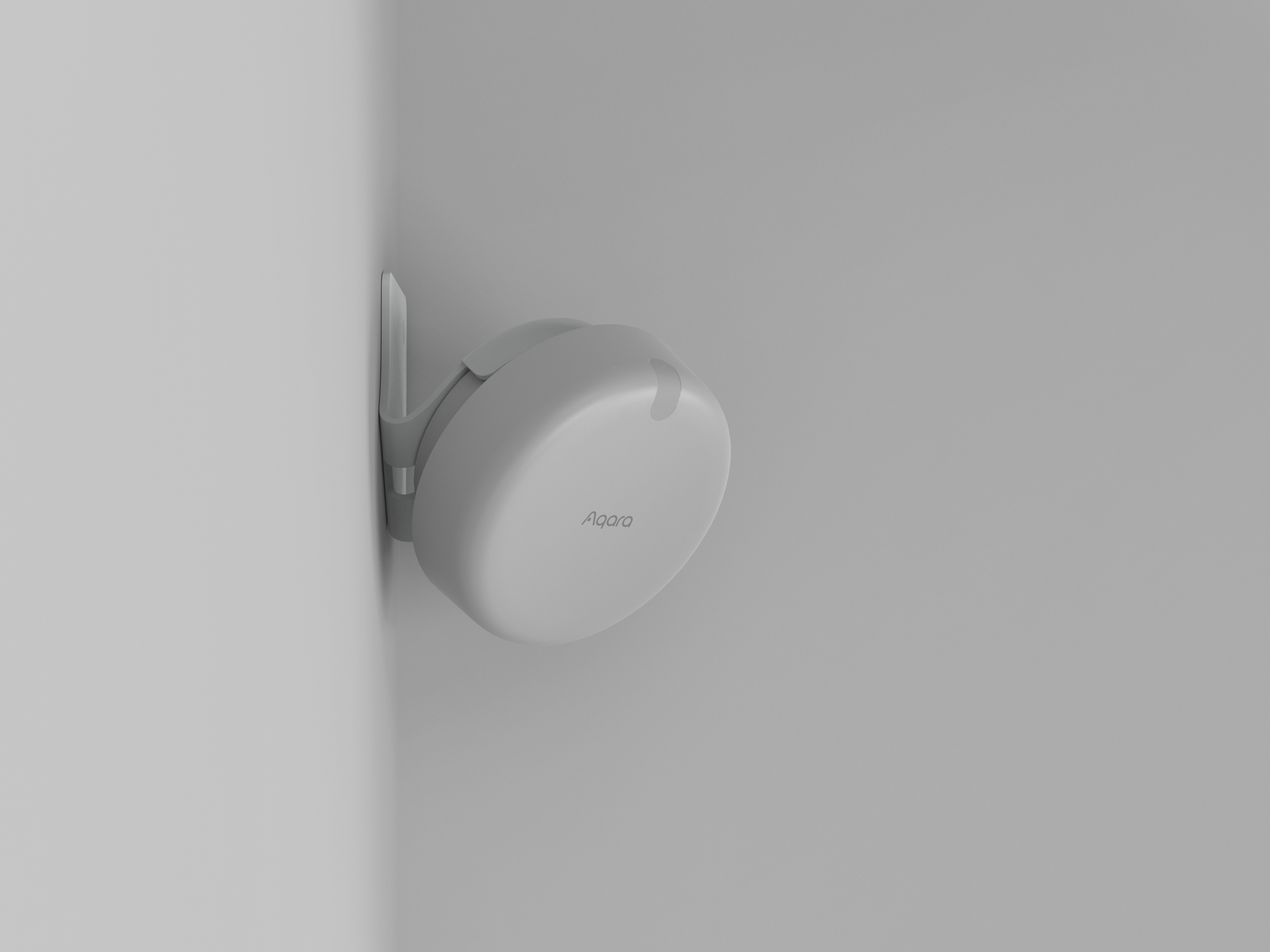

The FP2 supports wall mounting, ceiling installation, and angle adjustment for flexible placement. It’s also possible to install the FP2 in the corner of the room, and configure the map* accordingly. This configuration effectively eliminates dead zones caused by sensor detection angles. Additionally, rotating the room plan by 45 degrees, enhances the automation of zone detection, providing comprehensive coverage across the space.

It is Ultimately Future-Proof

With its advanced hardware, the FP2 is able to support much more cutting-edge features such as sleep monitoring, people counting, posture detection (lying down, sitting, standing, walking) and Matter support for enhanced functionality.

Wake-up automations that don't bother your family members

Accent lighting that follows you


Applications with Aqara Presence Sensor FP2

Home

Activates lighting and curtains/blinds when human presence is detected and keeps the lights on as long as occupancy is maintained. Triggers alarms if someone, like a child, enters a specific zone.

Retail/Shop:

People counting and Foot traffic monitoring.

Commercial

Meeting Room Automation - Automates lighting and air conditioning in meeting rooms based on occupancy. Switches off all relevant devices when the room is empty.

Elderly Care/Hospitals

Detects falls and monitors patient presence in bed, enhancing safety and care in elderly facilities and hospitals.

Your Privacy is Guaranteed

The Aqara Presence Sensor FP2 is not a camera, ensuring your privacy remains fully protected.

Remarks:

To fully integrate the Aqara Presence Sensor FP2 into a comprehensive smart home system you will need to add an Aqara Hub. While the Presence Sensor FP2 can function independently, pairing it with an Aqara Hub enables seamless connectivity with other smart home devices and enhances your overall smart home experience.

Comparison: Aqara Motion Sensor vs Presence Sensor

Function/ Description Aqara Motion Sensor P1 Aqara Presence Sensor FP2

Technology

 PIR (Passive Infrared)

mmWave 60 GHz

Protocols

Zigbee 3.0

Wi-Fi

Detection / Application

 Motion & Light detection
  • Presence (30 zones)
  • Light Detection
  • Multi-target tracking
  • Fall Detection (*only in case of ceiling mounting）
  • Sleeping monitoring
  • People counting

Power

 2 x CR2450 Battery (up to 5 years battery life,
depending on triggering frequency and settings

Wired, DC 5V1A

Configurable Timeout

 Yes,1s - 200s

Immediate

Sensitivity Adjustment

Yes (High-Medium-Low)

Yes (High-Medium-Low)

Angle / Range

 170° for up to 2 meters 150° for up to 7 meters 120° for up to 8 meters up to 40 sq m (wall mounting)

Price

$39

$159

Product Specification

Model

PS-S02D
Recognition Range of Wall mounting

8 meters in the radial direction, with a horizontal angle of 120°, tracking up to 5 targets.
Recognition Range of Ceiling mounting

A circle with a radius of 2 meters, the accuracy of fall detection>98%
Power Supply

DC 5V 1A, Type-C ports
Wireless Protocol

Bluetooth 4.2

,

Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Operating Temperature

-10°C ~ 40°C
Protection Rating

IPX5 (water-resistant)
Operating Humidity

0~95% RH，non-condensing
