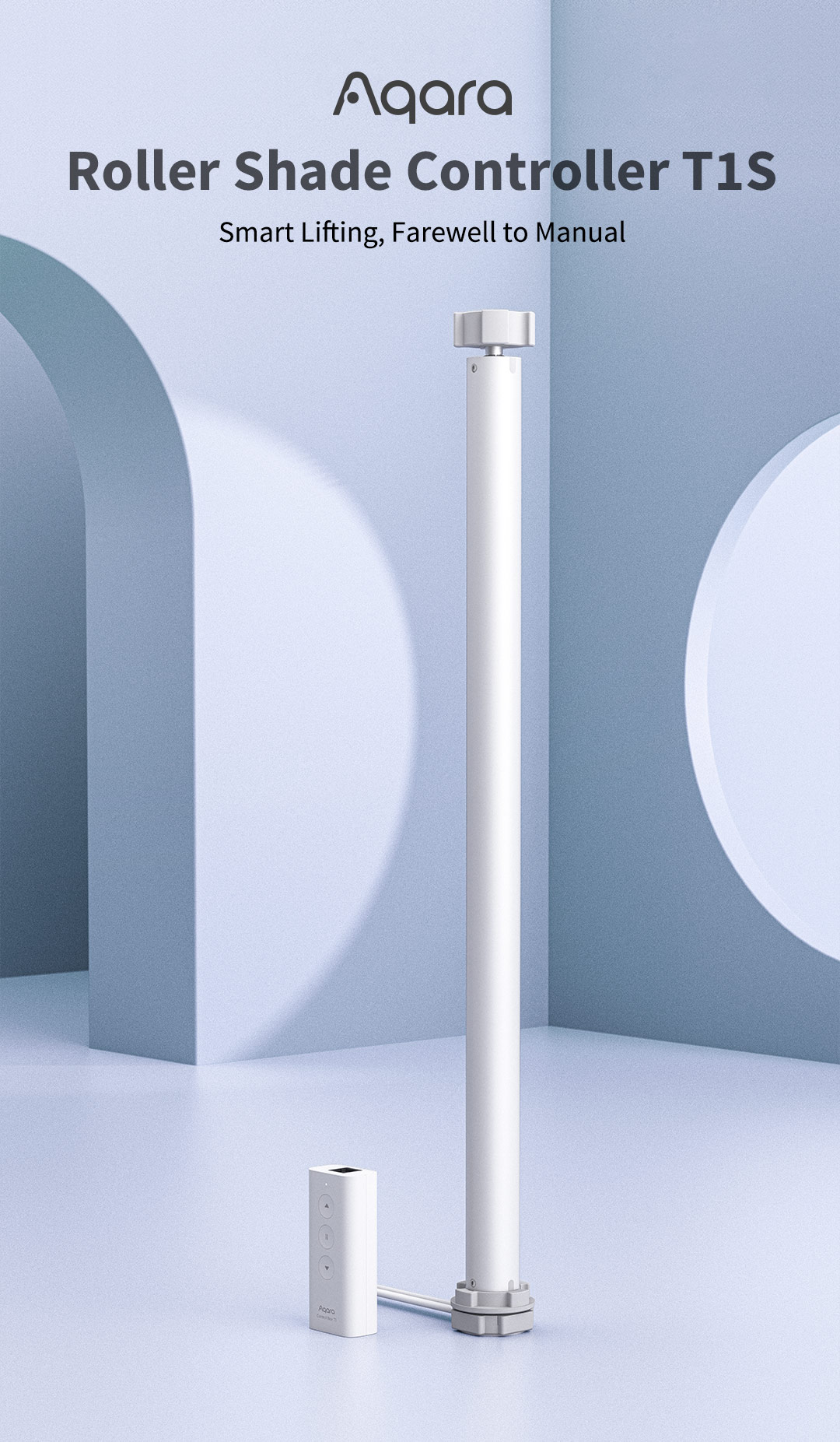

Aqara Roller Shade Controller T1S (Supports Loads Up to 6kg)
$299.00
Overview
- Protocol: Zigbee 3.0
- Requires Aqara Hub: Yes
- Colour: White
- Rated Voltage: 100/240V~ 50/60Hz
- Pipe Diameter: 25mm
- Max Load: 6kg
- High Speed and Low Noise: 25 rpm speed, 27 dB Noise Level (New DC Motor Technology)
- A roller shade tube and the shade itself should be purchased separately.
- The required roller shutter width must be greater than 600 mm.
Warranty:
- Installation: Excluded
- Warranty: 2 years (Refer to Warranty Policy)
Key Highlights

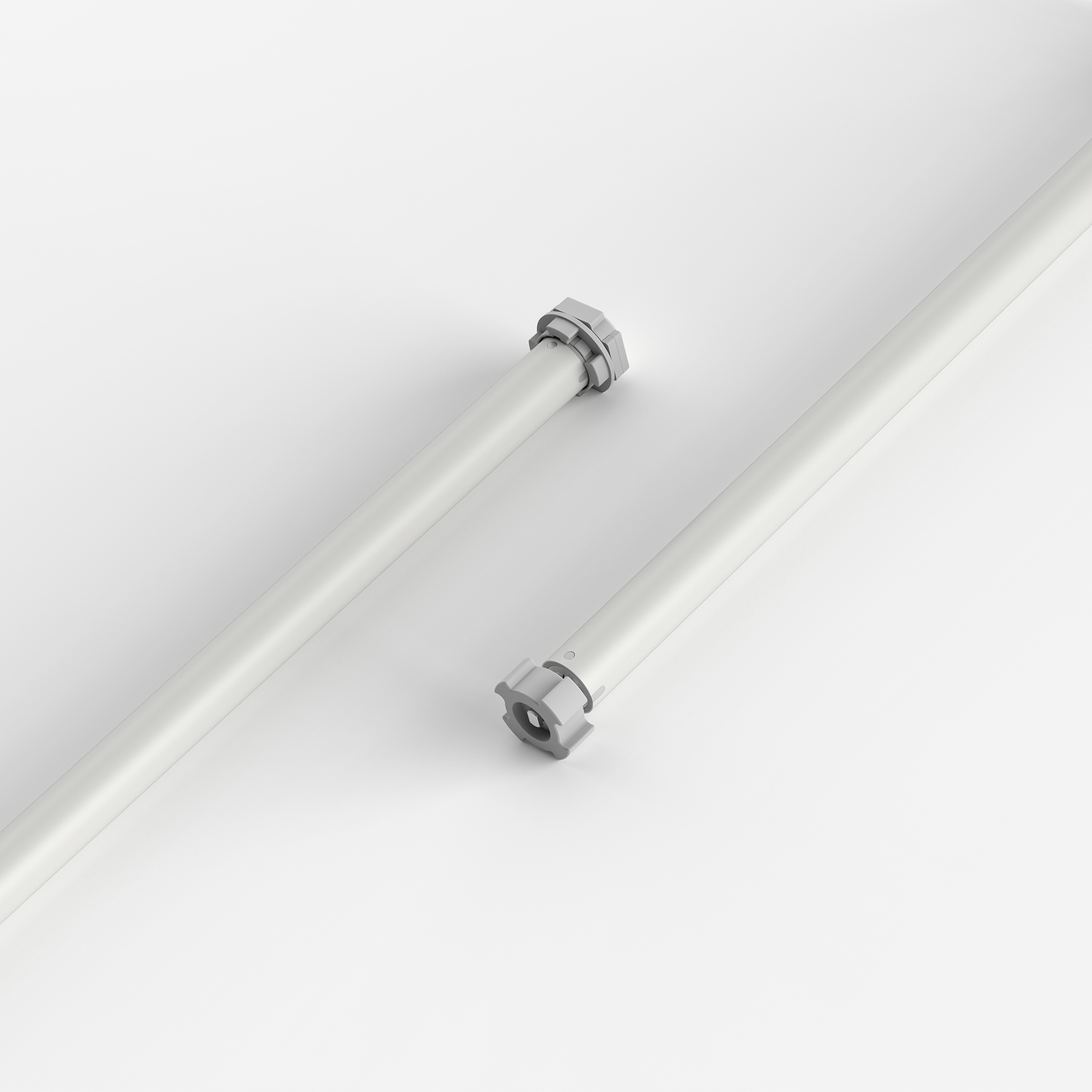

The Aqara Smart Roller Shade Controller T1S is an electric motor designed to automate standard roller blinds, Shangri-La blinds, Horizontal blinds, and other curtain types, supporting loads up to 6kg. When paired with a hub, it enables remote control, scheduled opening and closing, and integration with other smart devices. Experience whisper-quiet operation, precise control, and energy-efficient automation.
Smart Lifting Rolling Shutter Farewell to Intricacies and Embrace Elegance

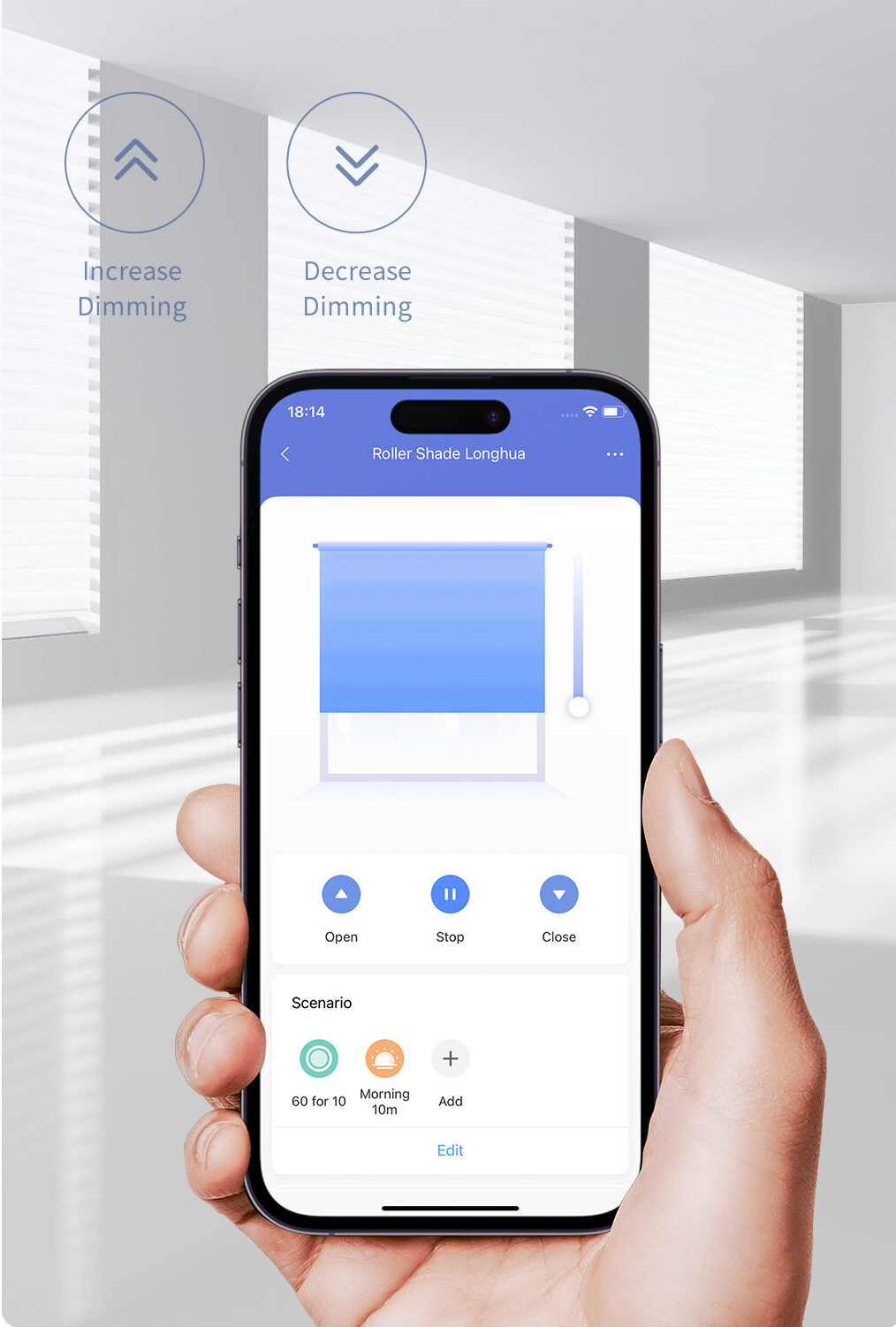

With Apple Home support, a simple voice command to Siri is all it takes to control the rolling shutter's elevation. You can also effortlessly control the rolling shutter's movement with the app or wireless mini switch, offering you a one-click solution to bid farewell to the cumbersome task of manually pulling the blinds.
Zigbee 3.0 with Matter Support
Linking to an Aqara hub enables seamless integration with major ecosystems like Apple Home, Amazon Alexa, Google Home, Samsung SmartThings, Home Assistant, and Homey, for comprehensive home automation. Additionally, leveraging Zigbee,ensures low power consumption and strengthens the smart home network.

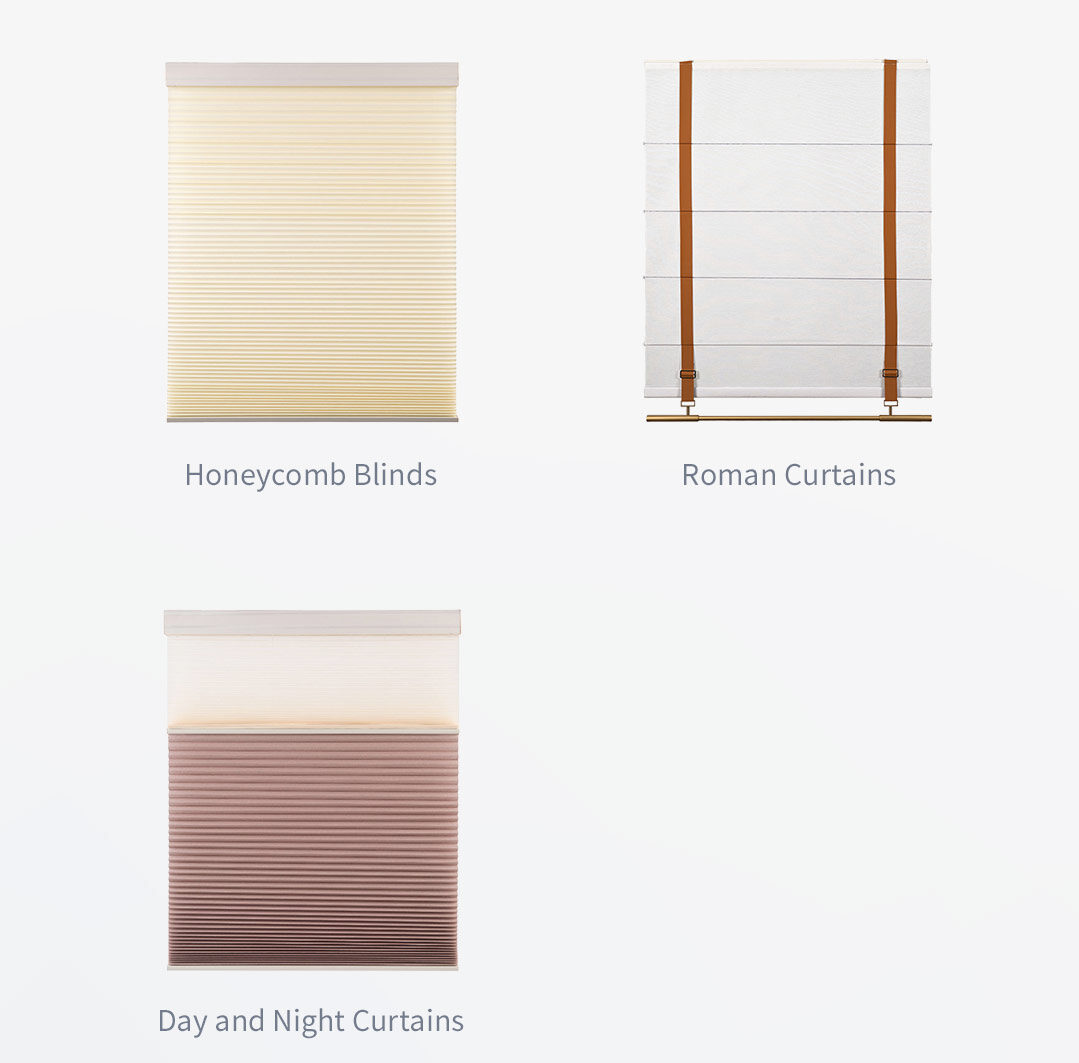

Versatile and Hassle-Free: Compatible with Multiple Curtains

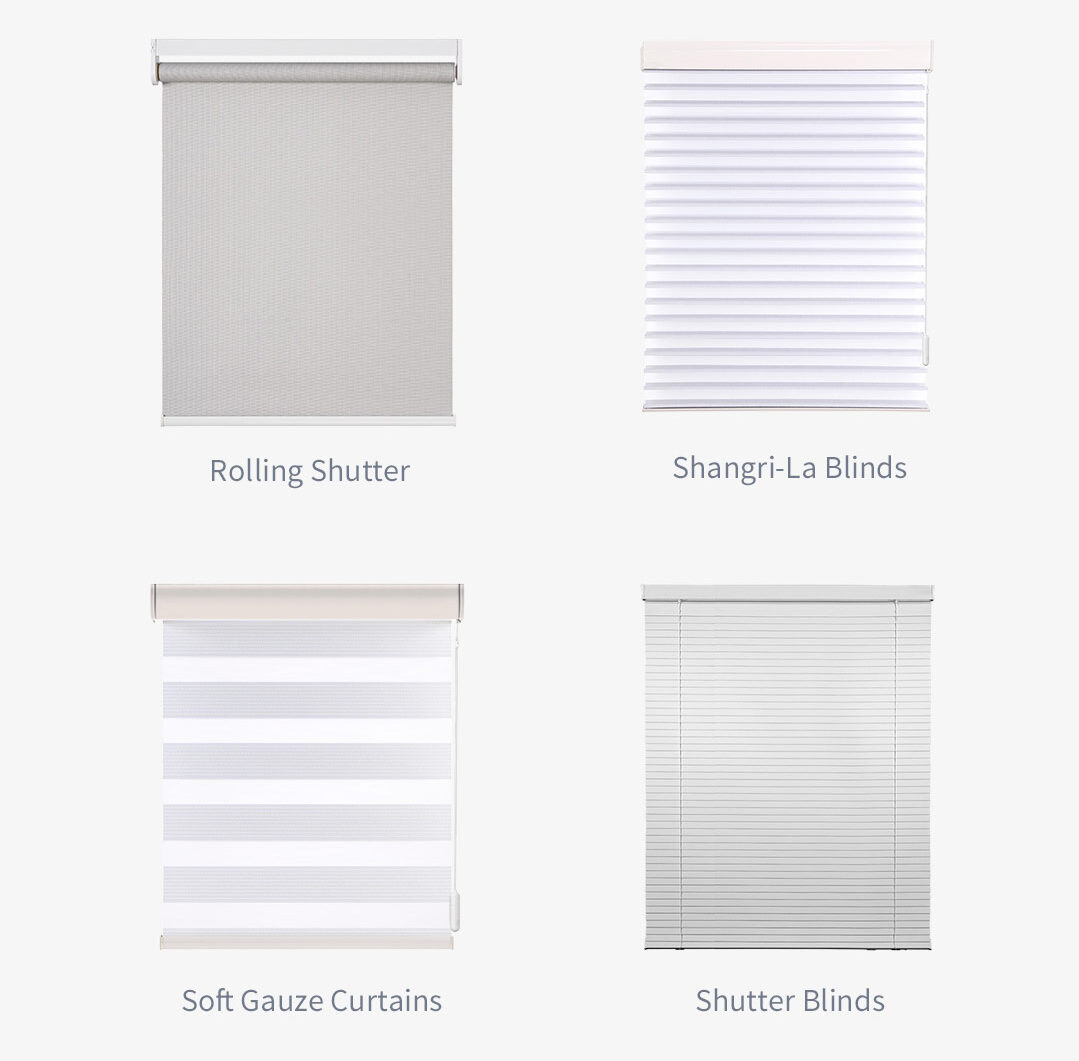

Compatible with multiple curtain fabrics such as rolling shutter, soft gauze curtains, Shangri-La blinds, Roman curtains, shutter blinds, honeycomb blinds, day and night curtains, etc.
Please note: the accessories such as roller shades and mounts are not provided with the motor itself. Please contact Aqara local distributor for more information.
Adjust Blade Tilt, Control Light and Shade with Ease

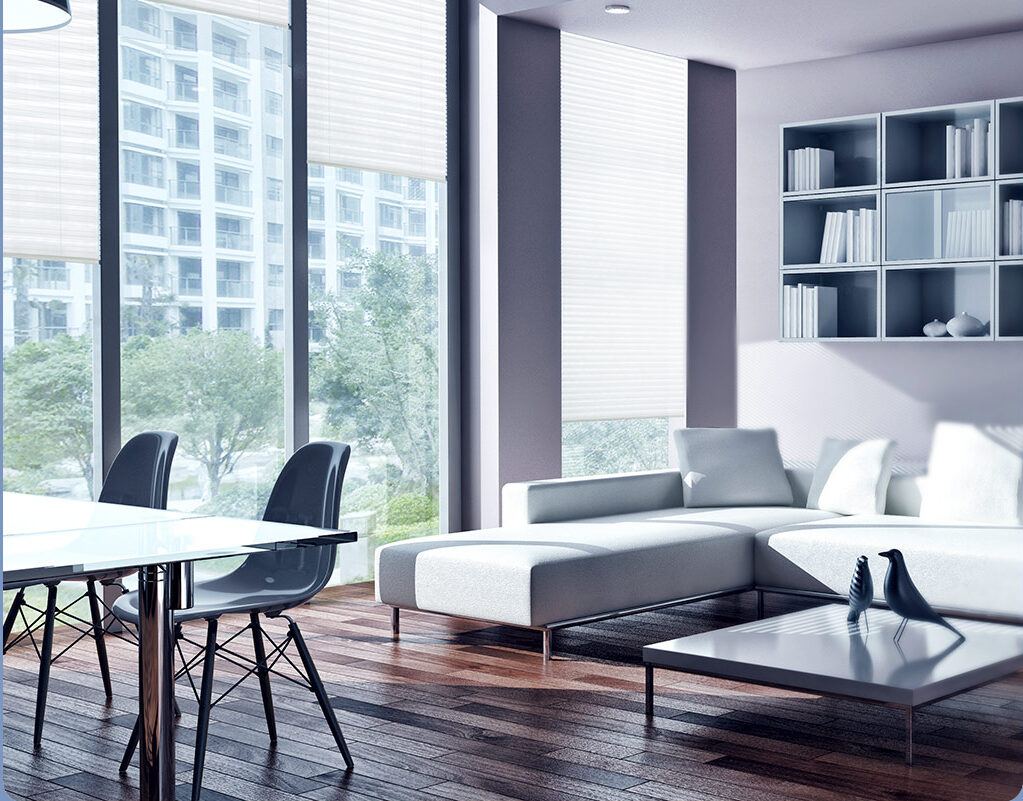

You can control the tilt angle of shutter blinds, Shangri-La blinds, and soft gauze curtains to adjust the indoor lighting to your liking.
Set Timers for Peace of Mind and Convenience,
Compatible with More Home and Office scenes
According to your preferences, you can set the switch timing and lifting ratio of the rolling shutter to suit various scenes in both home and office settings.

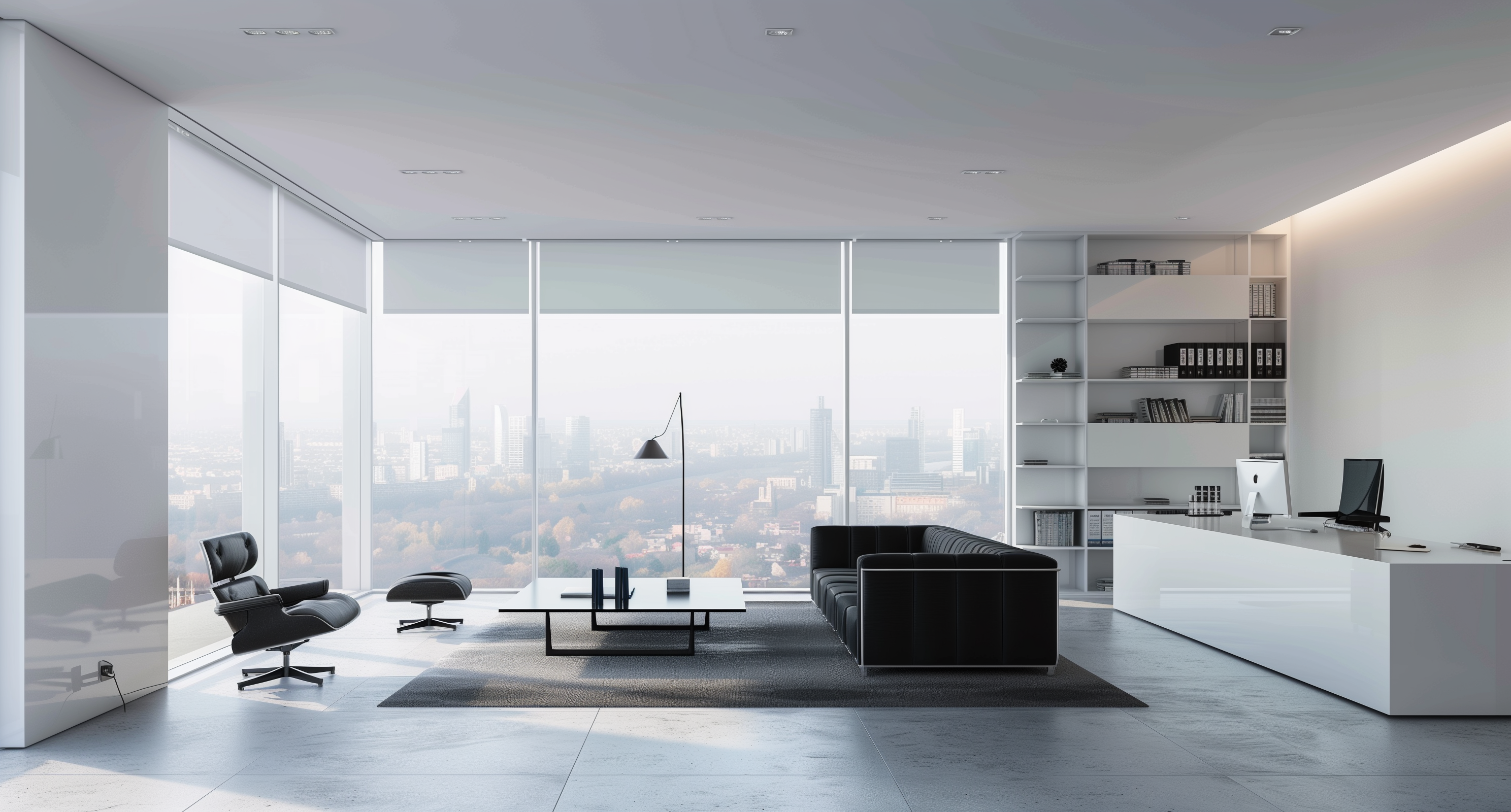

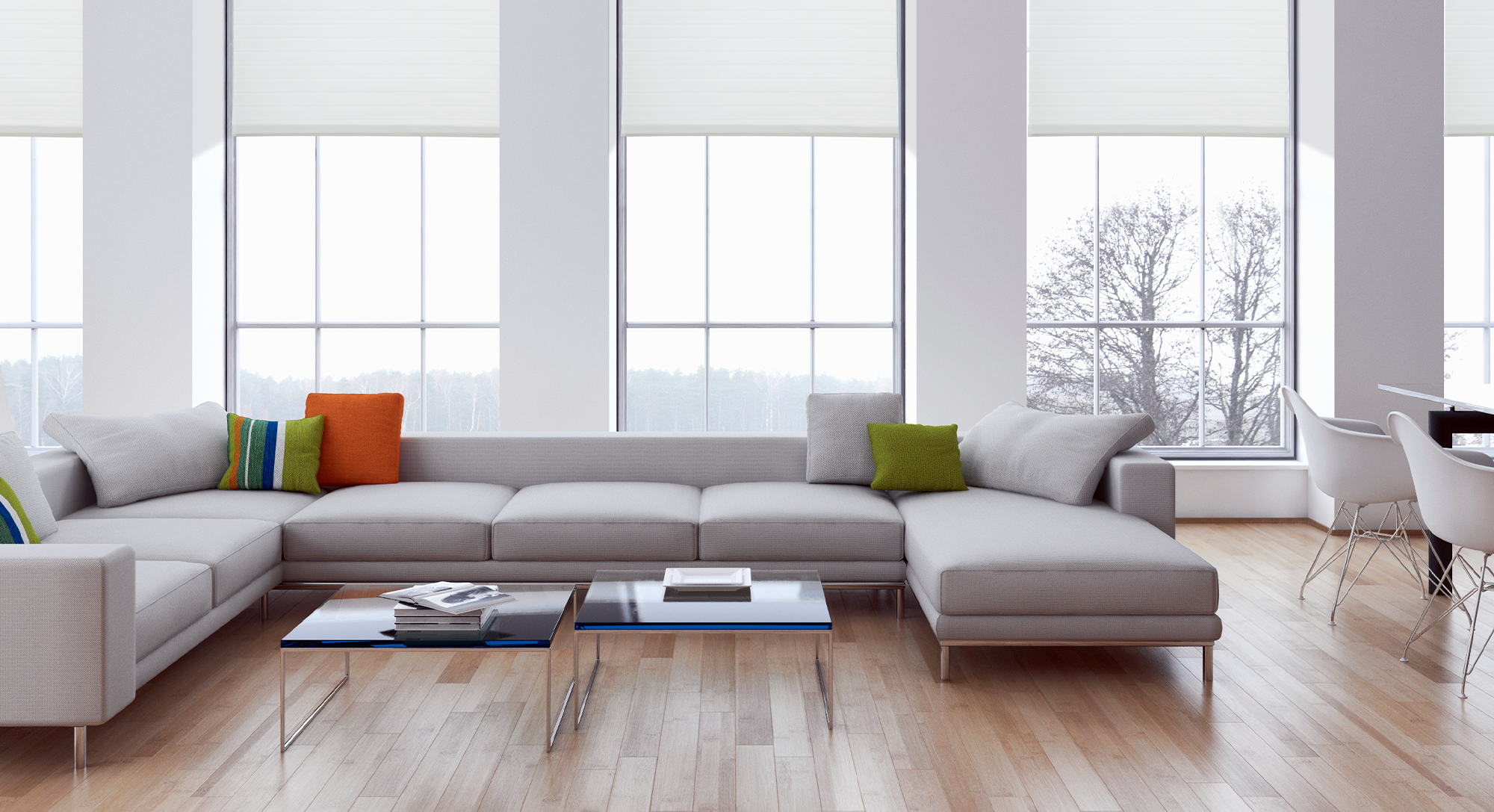

Family scenes

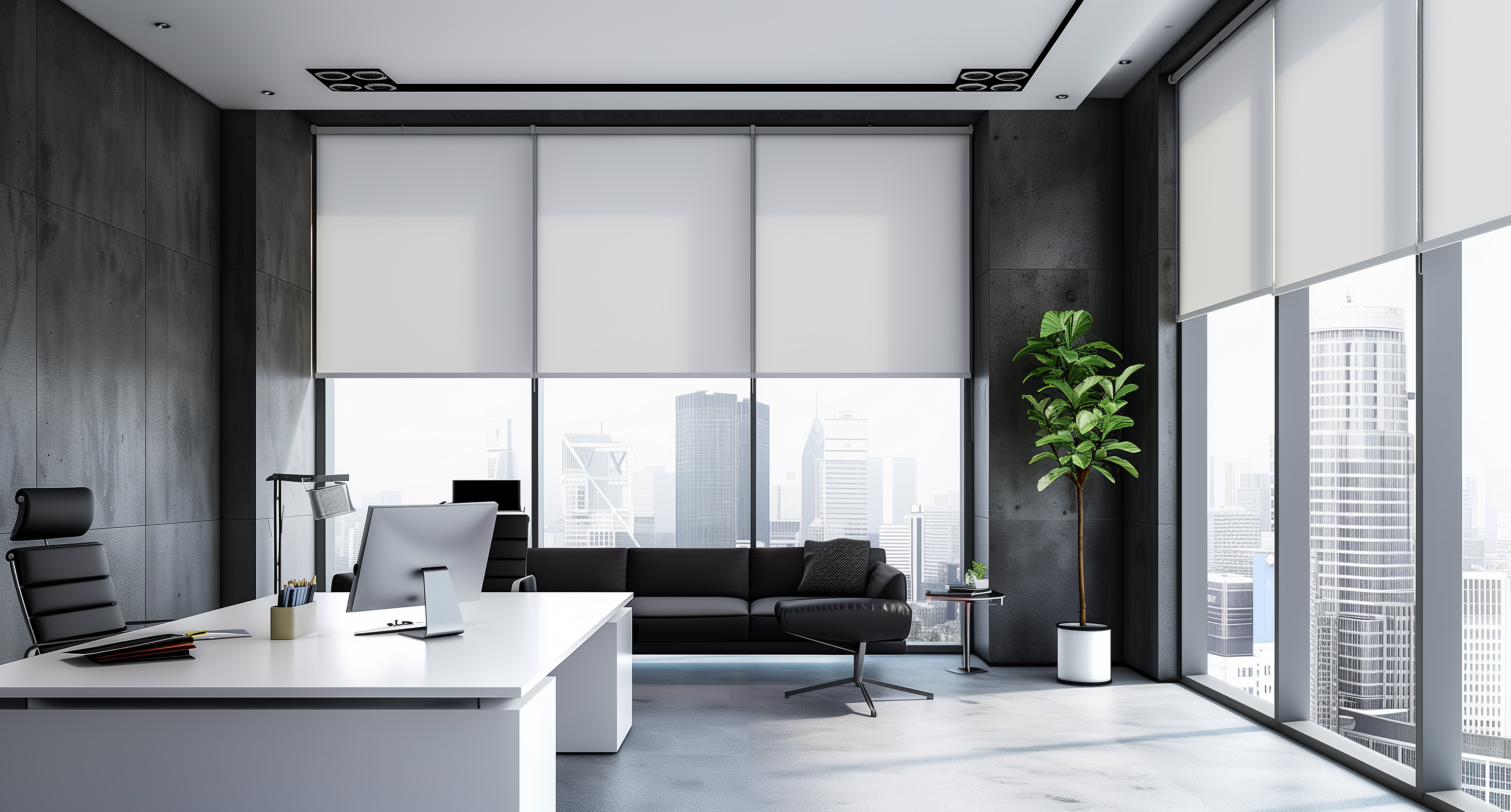

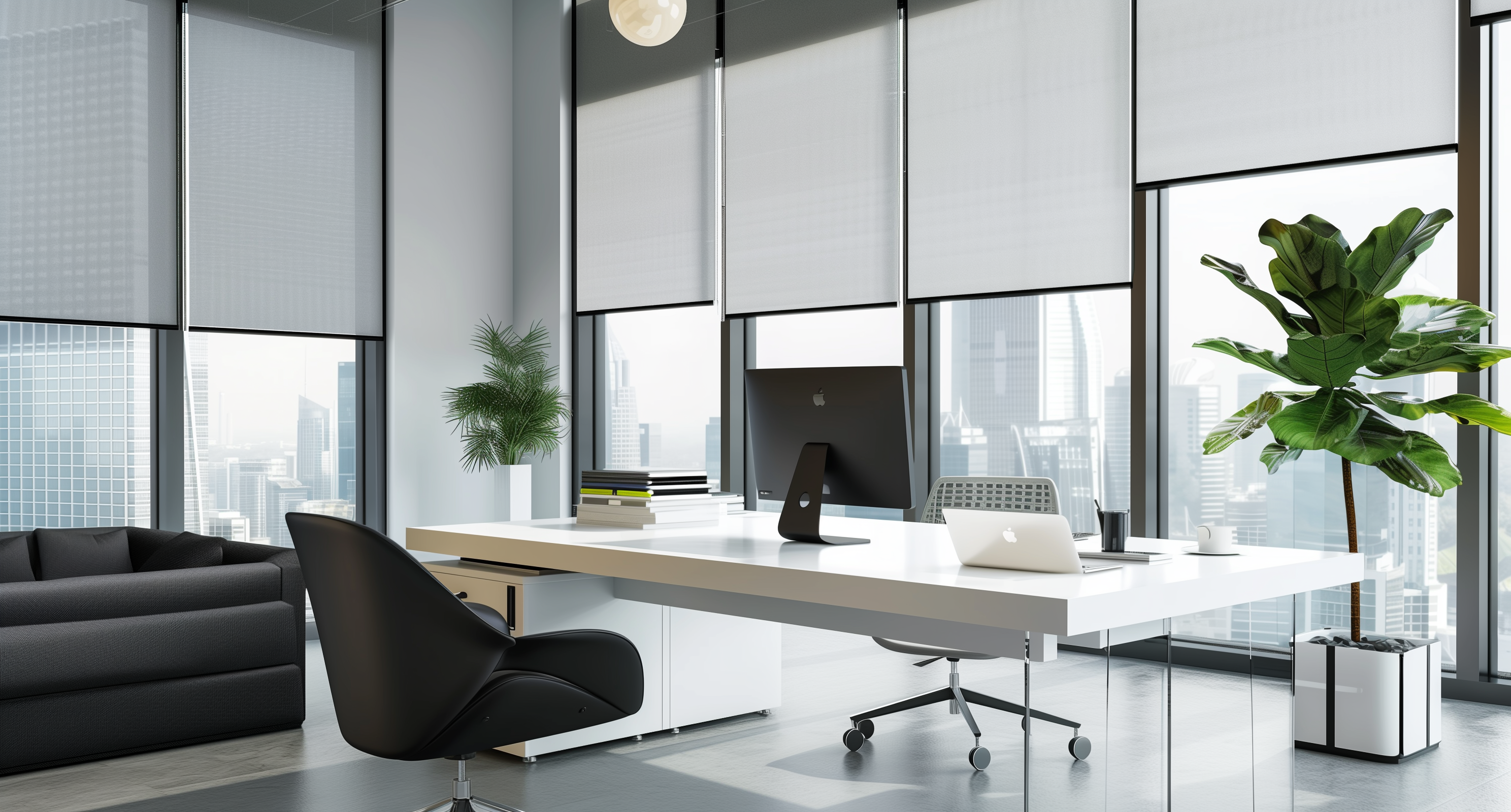

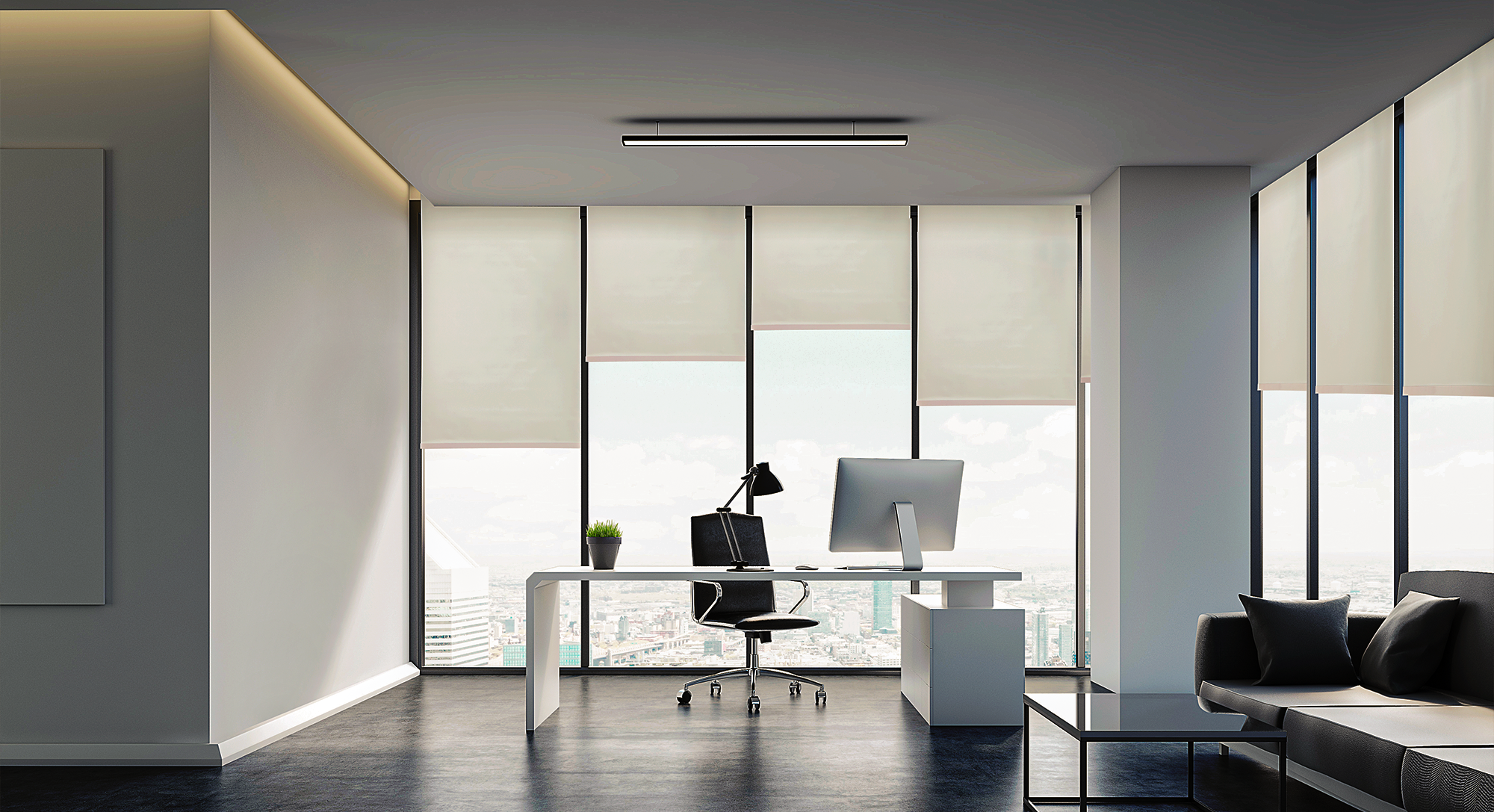

Office scene

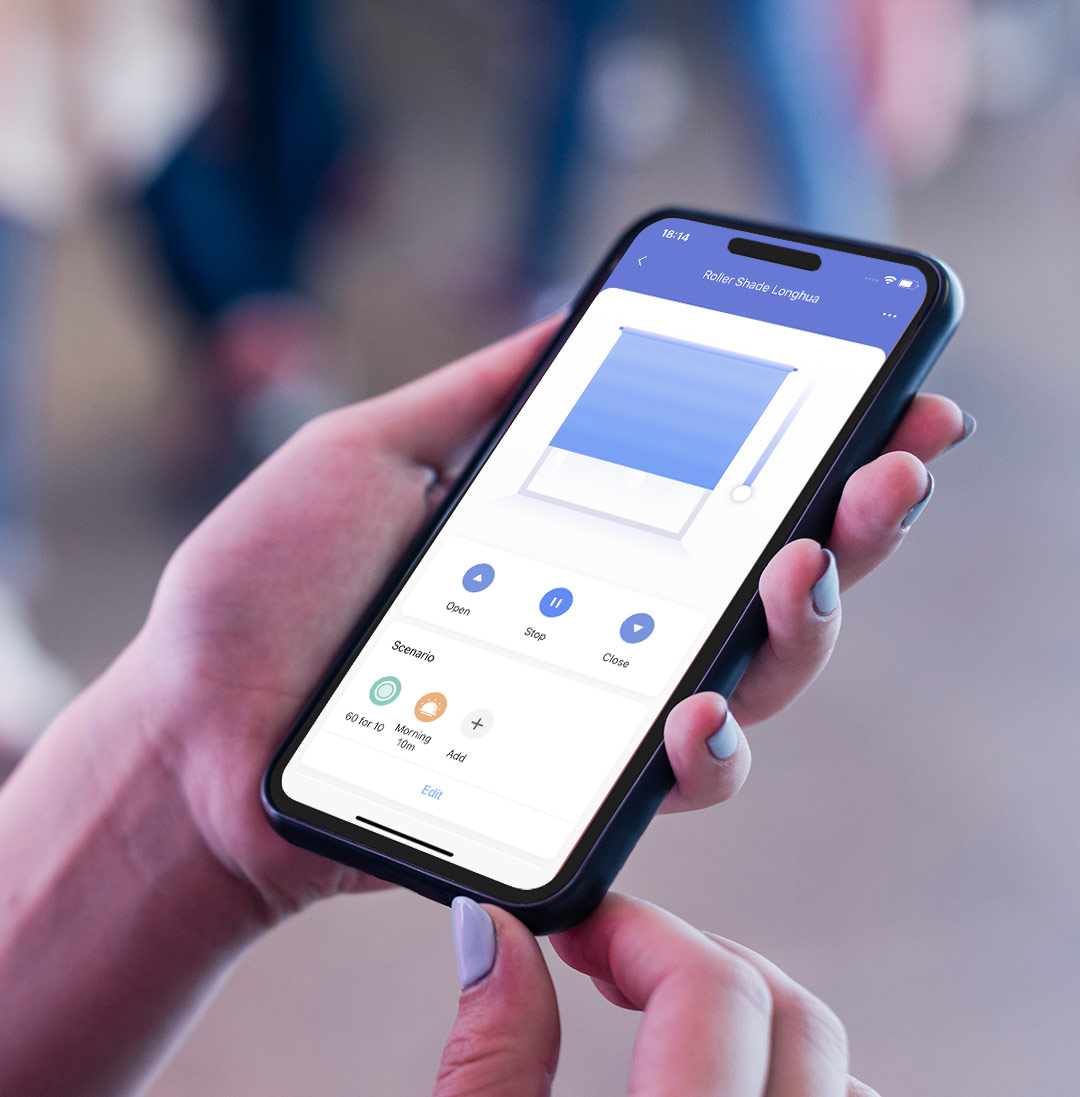

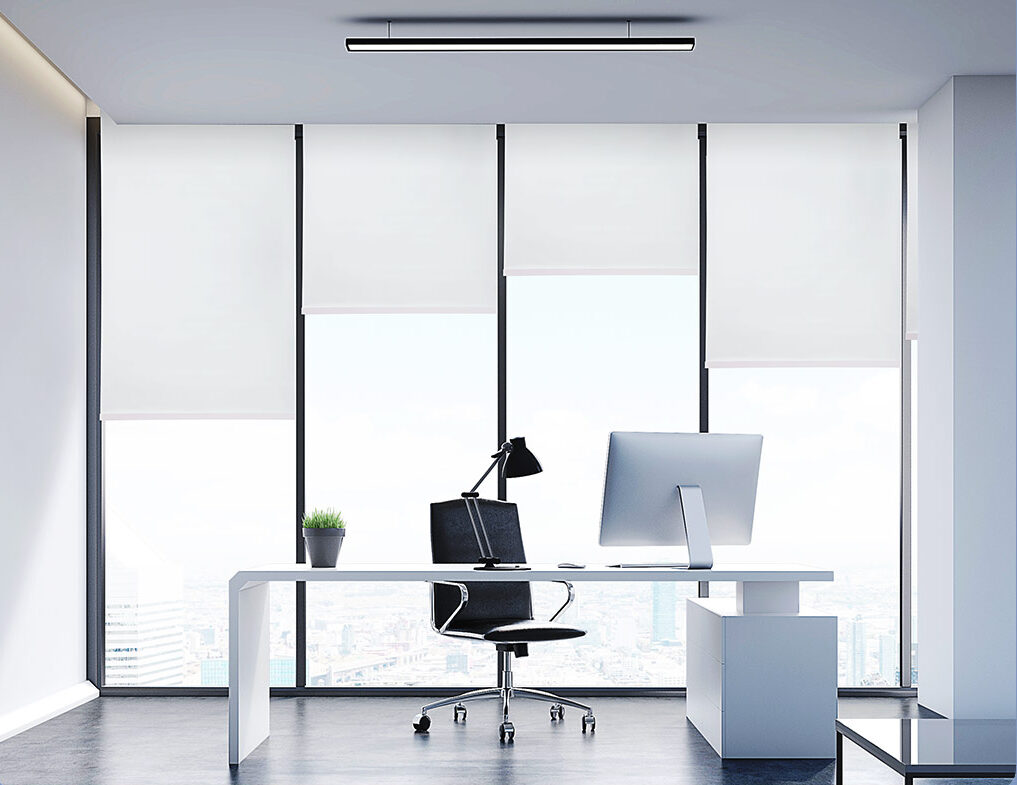

Remote-controlled Rolling Shutter at Your Fingertips
You can check the status and remotely control the switch of the rolling shutter by grouping them through the app.
Quiet and Low Noise, No Disturbance
With high-quality DC motor technology, it operates at just 27 dB, ensuring a peaceful and undisturbed environment.
Smart Link for Enhanced Convenience
Paired with other Aqara smart devices, it allows for the creation of diverse smart living scenarios to enhance convenience in everyday life.

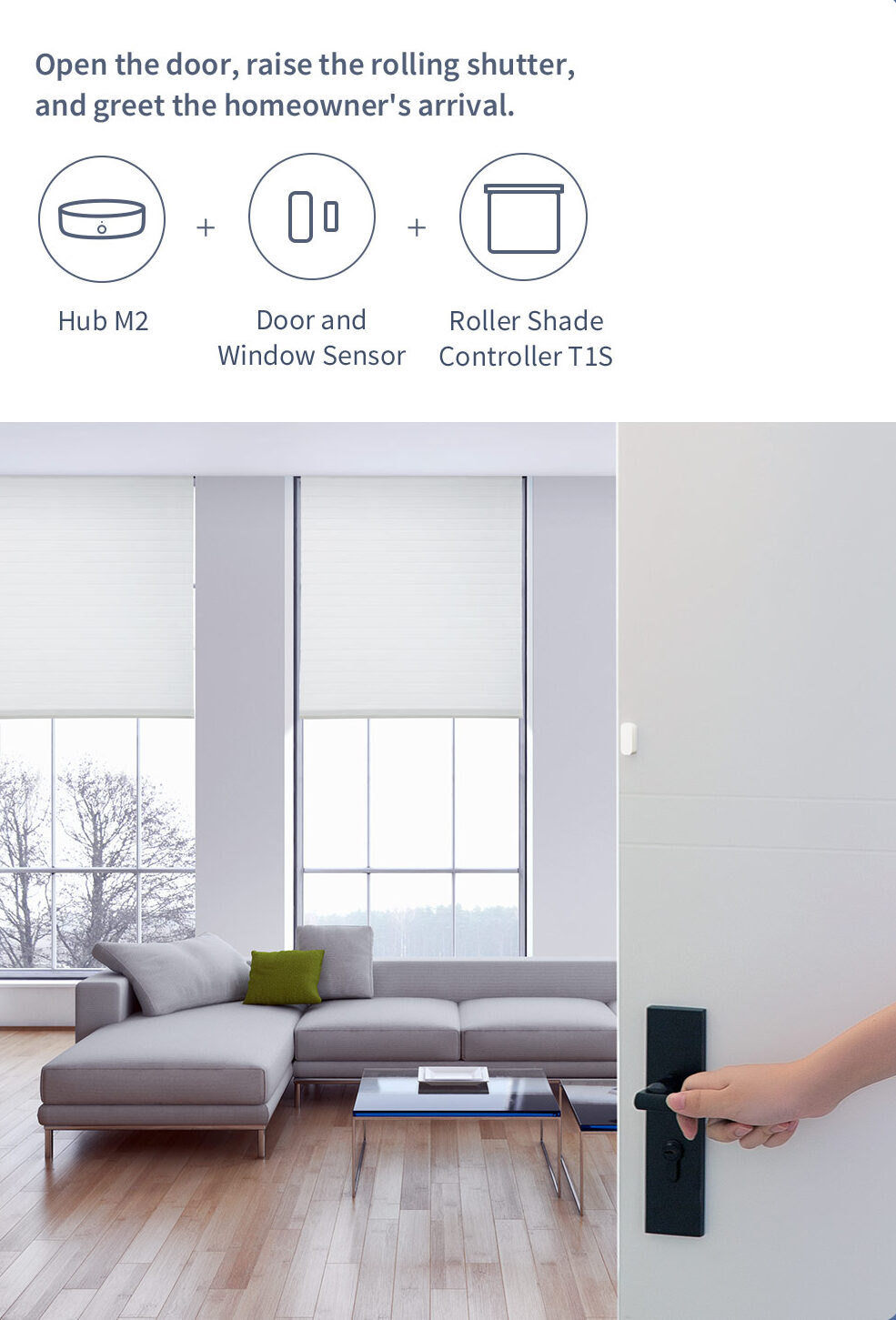

Open the door, raise the rolling shutter, and greet the homeowner's arrival.

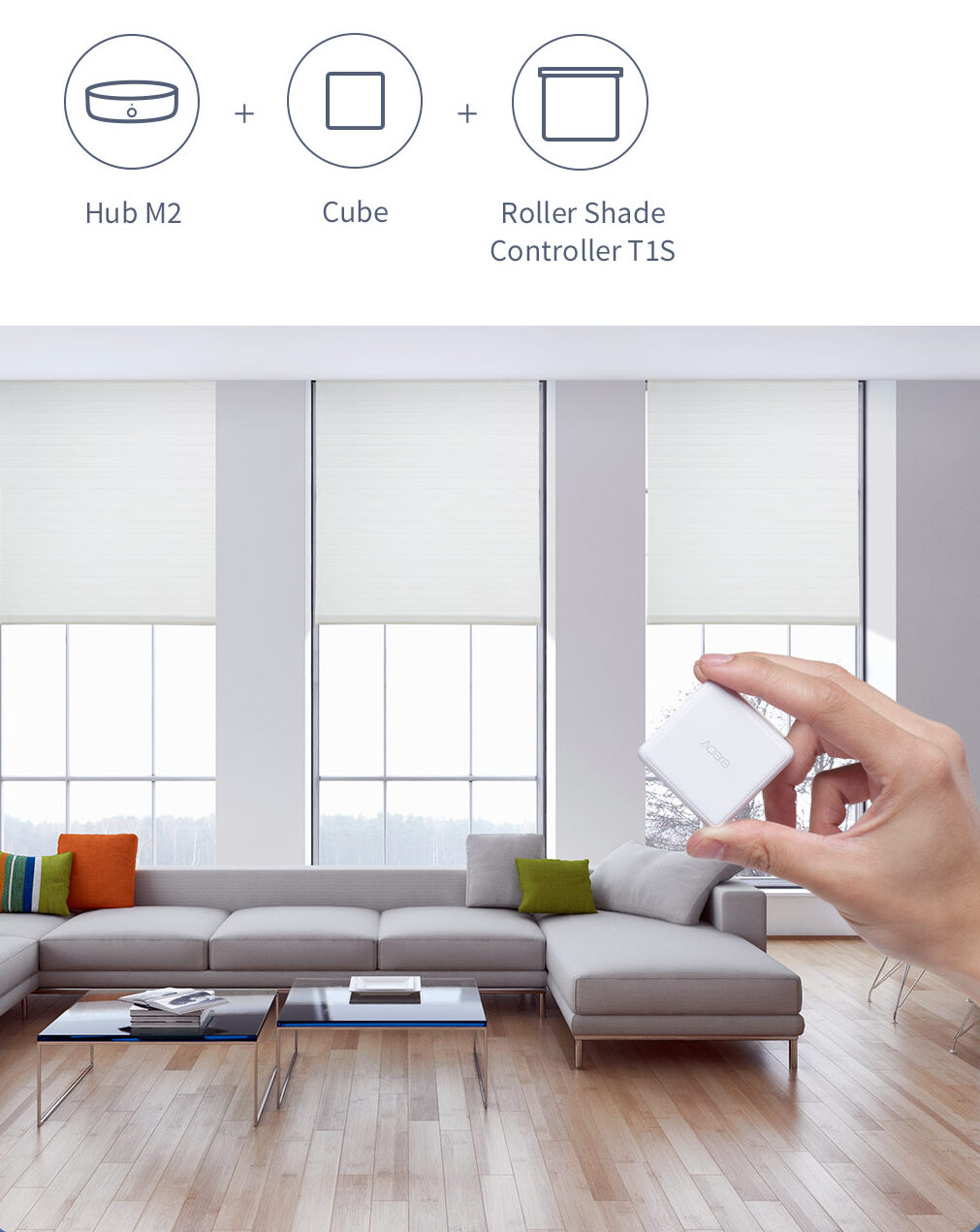

With multiple rooms, toggling each rolling shutter individually is tedious. Just shake the "cube" to swiftly raise or lower all blinds at once.
Supporting Stronger Wireless Protocol
Product Specification
 Model | CD-M03D |
|---|---|

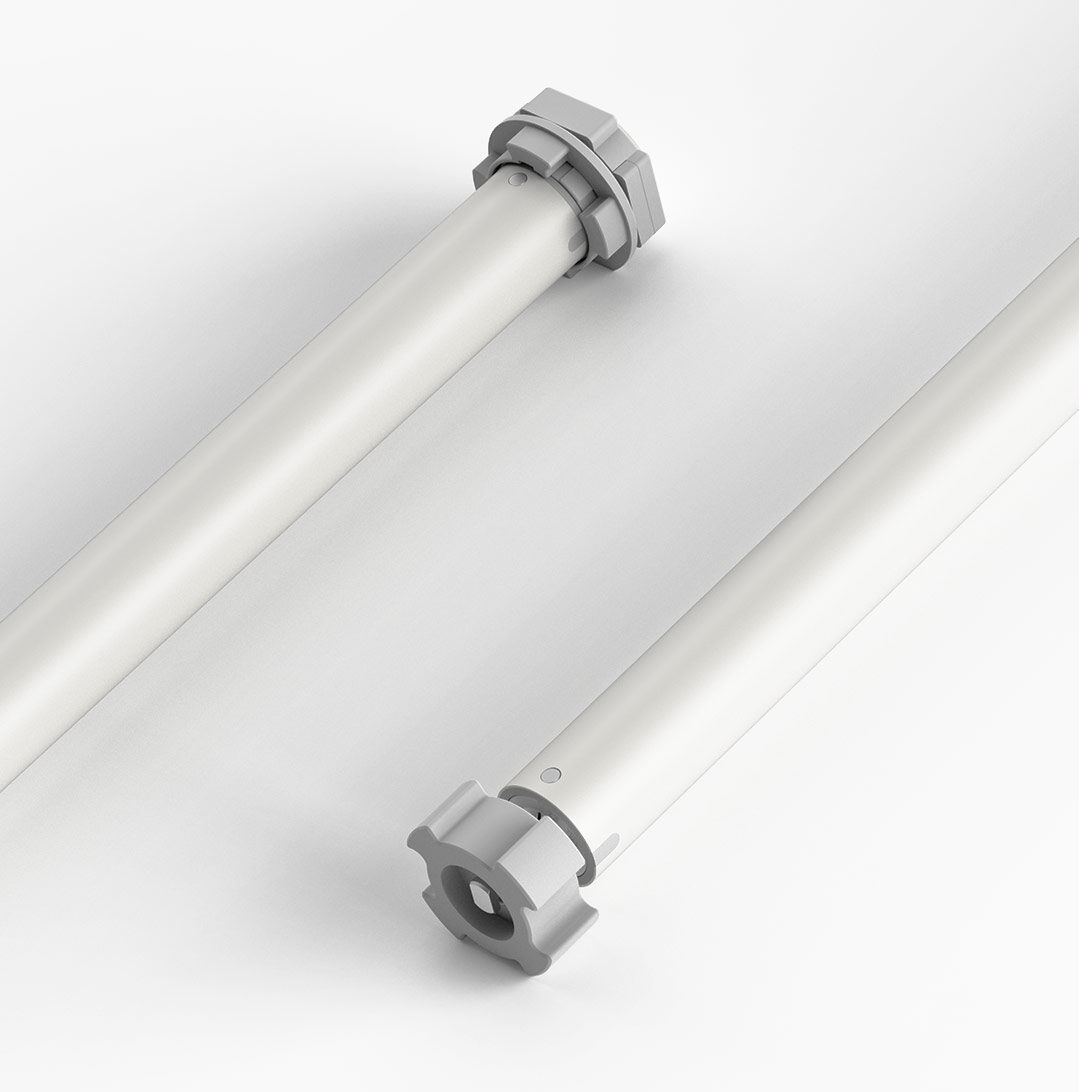

| Motor outer Pipe diameter: | 25mm |
| Motor length | 465mm |
| Rated voltage | 100/240V~ 50/60Hz |
| Rated current: | 0.3A |
| Rated power | 20W |
| Cable Length | 1.2m |
| Operating Temperature | -20℃~+55℃ |
| Operating Humidity | 10%~95% RH, non-condensing |
| Rated torque | 1.2N·m |
| Rated rotor speed | 25 rpm |
| Wireless connection | Zigbee 3.0 |
| Working system | S2 4min |
| Zigbee Operation Frequency | 2405-2480 MHz |
| Maximum Load | 6 KG |
| Insulation Grade | Class A |
